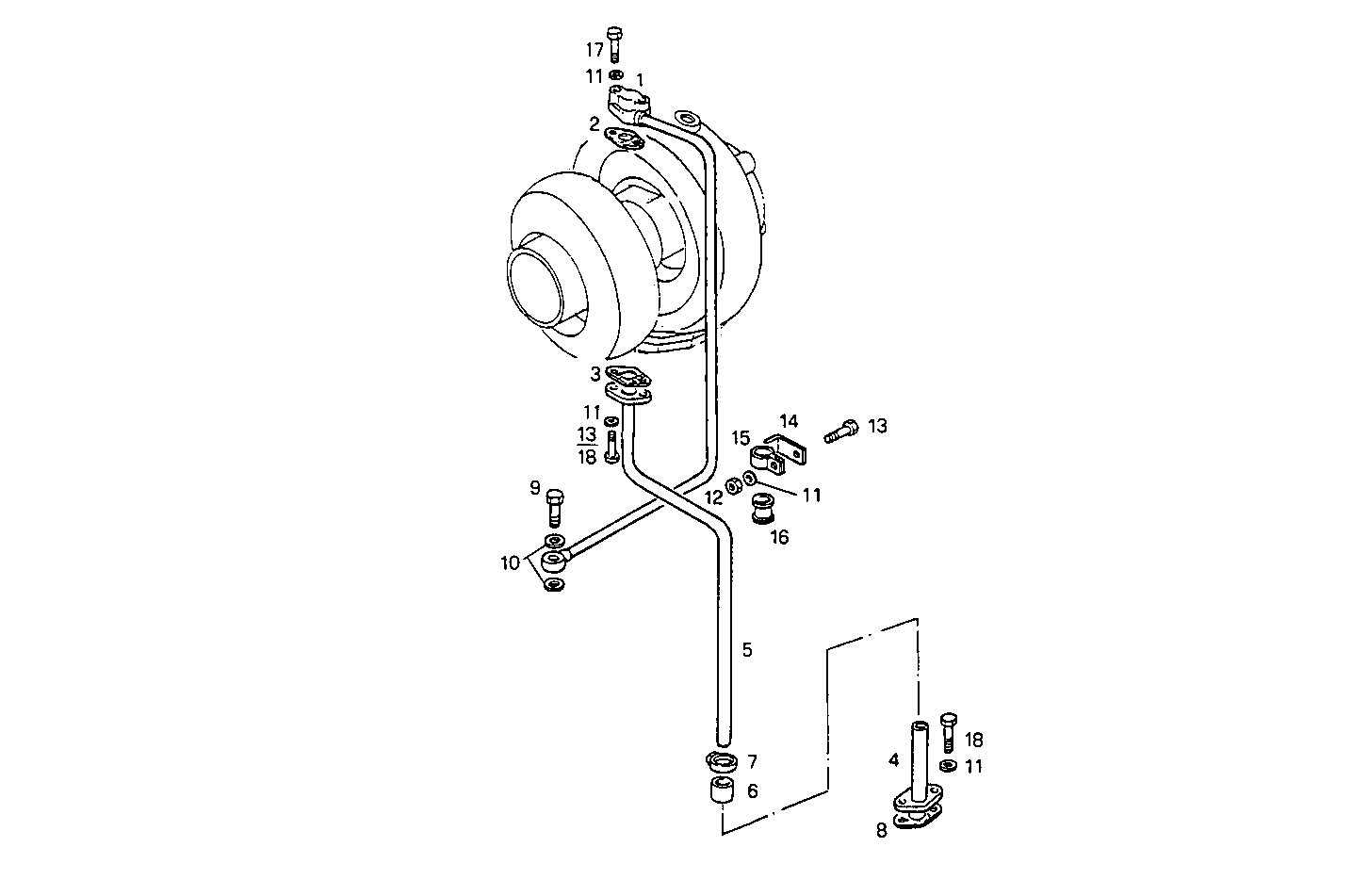

TURBOCHARGER
8361SRM32.00 — 8361SRM32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012643 | OIL LINE OIL LINE | 1 | |
| 2 | 98415922 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 98415923 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 4 | 98426429 | OIL LINE OIL LINE | 1 | |
| 5 | 8104342 | OIL LINE OIL LINE | 1 | |
| 6 | 4780206 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 17764592 | CLIP CLIP | 2 | |
| 8 | 98412509 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 4864084 | BANJO BOLT BANJO BOLT | 1 | |
| 10 | 10257060 | SEAL GASKET SEAL GASKET | 2 | |
| 11 | 11193879 | SPRING WASHER SPRING WASHER | 7 | |
| 12 | 16100811 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 8114208 | RETAINER RETAINER | 1 | |
| 15 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 16 | 4755964 | RUBBER PAD RUBBER PAD | 1 | |
| 17 | 16043921 | SCREW SCREW | 2 | |
| 18 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 3 |
