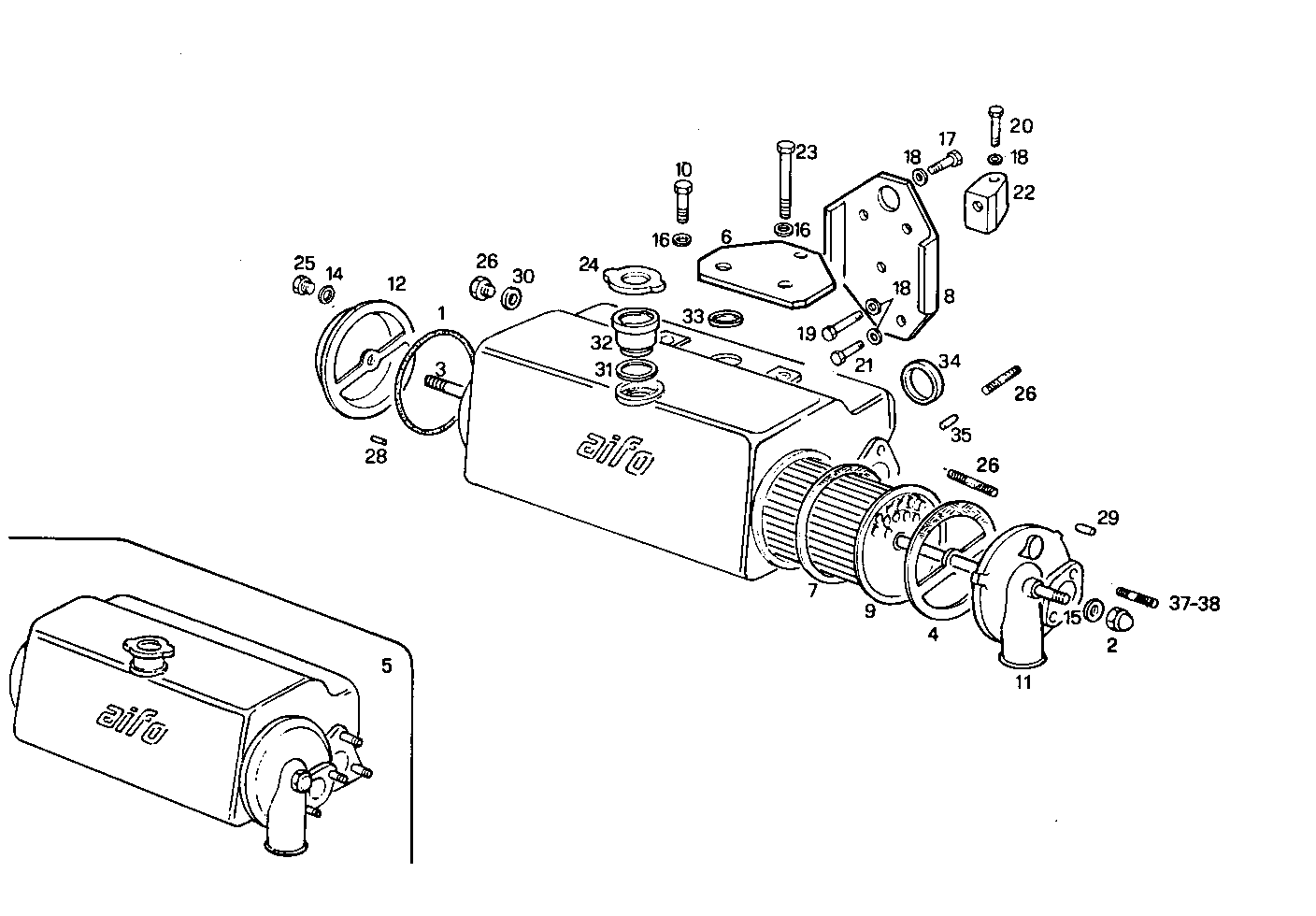

FRESH WATER - SEA WATER HEAT EXCHANGER
8361SRM32.01 — 8361SRM32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4918846 | O-RING O-RING | 1 | |
| 2 | 14056240 | NUT NUT | 1 | |
| 3 | 4918908 | TIE ROD TIE ROD | 1 | |
| 4 | 4918921 | GASKET GASKET | 1 | |
| 5 | 8077052 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 6 | 8110556 | SUPPORT SUPPORT | 1 | |
| 7 | 4930157 | GASKET GASKET | 1 | |
| 8 | 8110555 | RETAINER RETAINER | 1 | |
| 9 | 4929632 | TUBE STACK TUBE STACK | 1 | |
| 10 | 15971821 | SCREW SCREW | 2 | |
| 11 | 8015958 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 12 | 4934733 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 14 | 10260160 | SEAL GASKET SEAL GASKET | 2 | |
| 15 | 10298460 | SEAL GASKET SEAL GASKET | 1 | |
| 16 | 17090474 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 5 | |
| 19 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 20 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 21 | 11306921 | SCREW SCREW | 1 | |
| 22 | 4723225 | CHOCK CHOCK | 1 | |
| 23 | 15973121 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 24 | 4930462 | PLUG PLUG | 1 | |
| 25 | 11903140 | PLUG PLUG | 2 | |
| 26 | 10305140 | LOCK PLUG LOCK PLUG | 1 | |
| 28 | 14163670 | DOWEL PIN DOWEL PIN | 1 | |
| 29 | 14163870 | PIN PIN | 1 | |
| 30 | 10279560 | SEAL GASKET SEAL GASKET | 1 | |
| 31 | 10265360 | SEAL GASKET SEAL GASKET | 1 | |
| 32 | 8102030 | FILLER NECK FILLER NECK | 1 | |
| 33 | 14282770 | LOCK PLUG LOCK PLUG | 3 | |
| 34 | 4918844 | WASHER WASHER | 1 | |
| 35 | 14161370 | PIN PIN | 1 | |
| 37 | 13516821 | STUD STUD | 1 | |
| 38 | 13517721 | STUD STUD | 1 |
