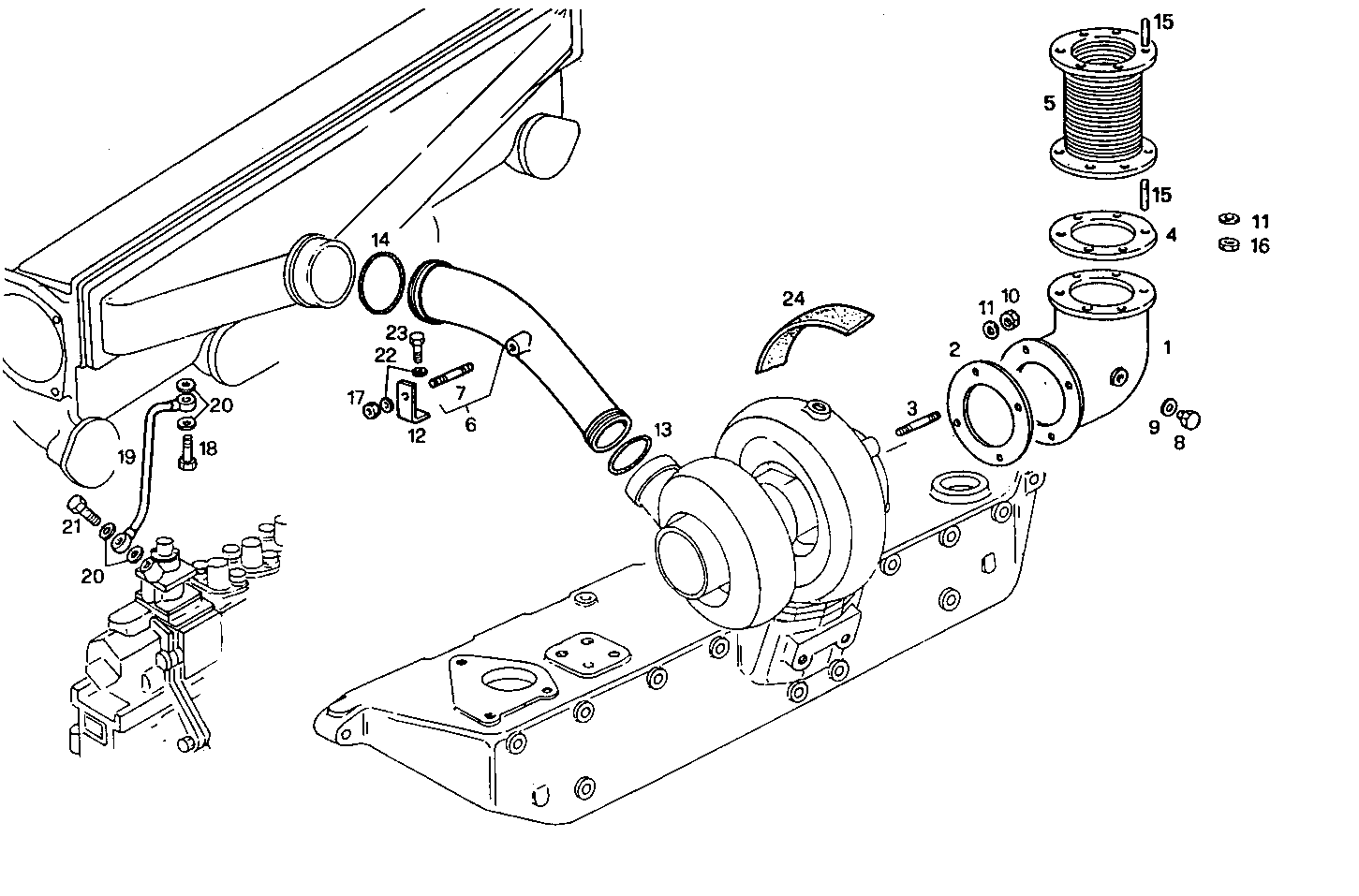

SUPERCHARGING LINES
8361SRM32.41 — 8361SRM32
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8109452 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 4772331 | SEAL GASKET SEAL GASKET | 1 | |
| 3 | 13516821 | STUD STUD | 6 | |
| 4 | 8009600 | GASKET GASKET | 1 | |
| 5 | 8101671 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 6 | 8104494 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 7 | 16729224 | STUD STUD | 1 | |
| 8 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 4858607 | WASHER WASHER | 1 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 6 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 12 | 8105271 | RETAINER RETAINER | 1 | |
| 13 | 17296181 | O-RING O-RING | 1 | |
| 14 | 17296581 | O-RING O-RING | 1 | |
| 15 | 13449524 | STUD STUD | 12 | |
| 16 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 8107452 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 19 | 8012641 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 20 | 4858607 | WASHER WASHER | 4 | |
| 21 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 22 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 23 | 16605534 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 8101542 | PROTECTION PROTECTION | 1 |
