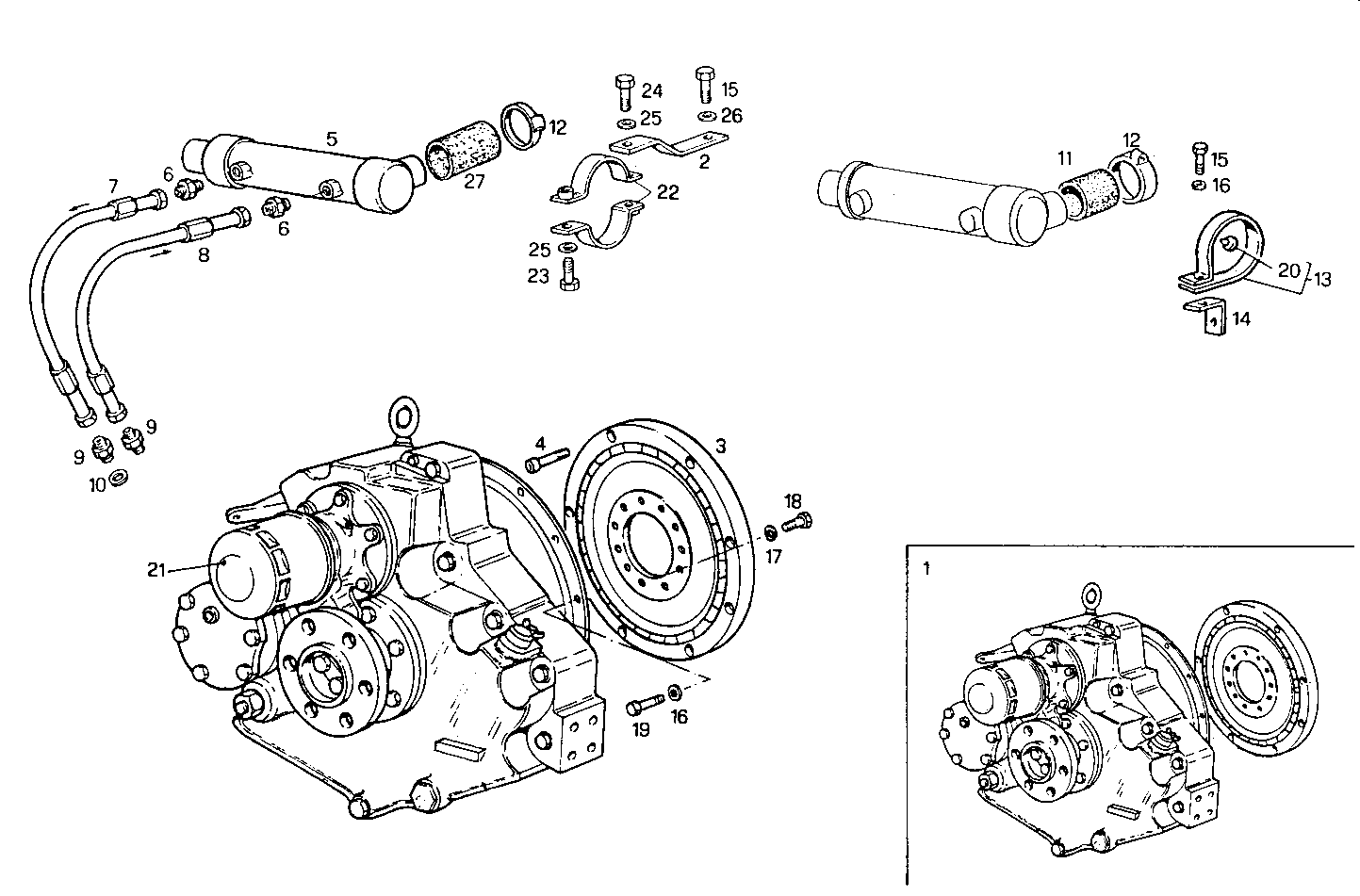

MARINE GEAR ZF-MPM IRM 301 PL2
8361SRM38.10 — 8361SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8114327 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8100407 | RETAINER RETAINER | 2 | |
| 3 | 8006783 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 4 | 14307921 | SCREW SCREW | 8 | |
| 5 | 8016304 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 6 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 7 | 8105619 | HOSE HOSE | 1 | |
| 8 | 8105620 | HOSE HOSE | 1 | |
| 9 | 8100897 | PIPE SOCKET PIPE SOCKET | 2 | |
| 10 | 4858609 | WASHER WASHER | 2 | |
| 11 | 17742687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 12 | 17764793 | CLIP CLIP | 2 | |
| 13 | 8013591 | CLIP CLIP | 2 | |
| 14 | 8103023 | RETAINER RETAINER | 1 | |
| 15 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17090274 | WASHER WASHER | 14 | |
| 17 | 17091174 | SPRING WASHER SPRING WASHER | 12 | |
| 18 | 15540521 | SCREW SCREW | 12 | |
| 19 | 11306921 | SCREW SCREW | 12 | |
| 20 | 4568427 | RUBBER PAD RUBBER PAD | 6 | |
| 21 | 8107191 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 22 | 5116798 | CLIP CLIP | 4 | |
| 23 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 24 | 16606024 | SCREW SCREW | 2 | |
| 25 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 26 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 27 | 8016662 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
