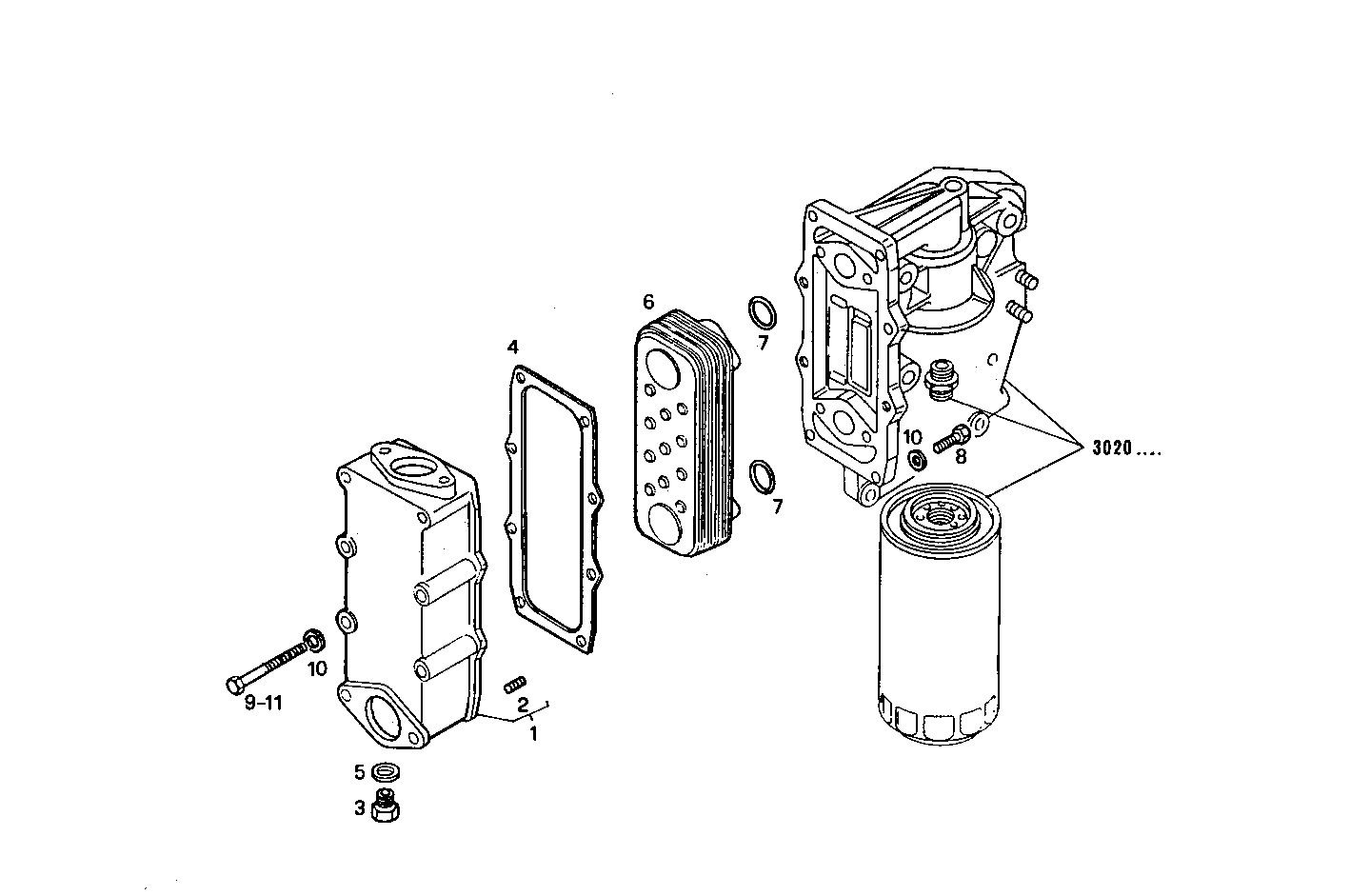

OIL - WATER HEAT EXCHANGER
8361SRM38.10 — 8361SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010943 | SUPPORT SUPPORT | 1 | |
| 2 | 17873271 | THREADED INSERT THREADED INSERT | 2 | |
| 3 | 4595833 | THREADED PLUG THREADED PLUG | 1 | |
| 4 | 4795338 | GASKET GASKET | 1 | |
| 5 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 61319975 | OIL COOLER OIL COOLER | 1 | |
| 7 | 17283581 | O-RING O-RING | 2 | |
| 8 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 16045824 | SCREW SCREW | 5 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 10 | |
| 11 | 16046221 | HEXAGON BOLT HEXAGON BOLT | 1 |
