MARINE GEAR
8361SRM38.11 — 8361SRM38

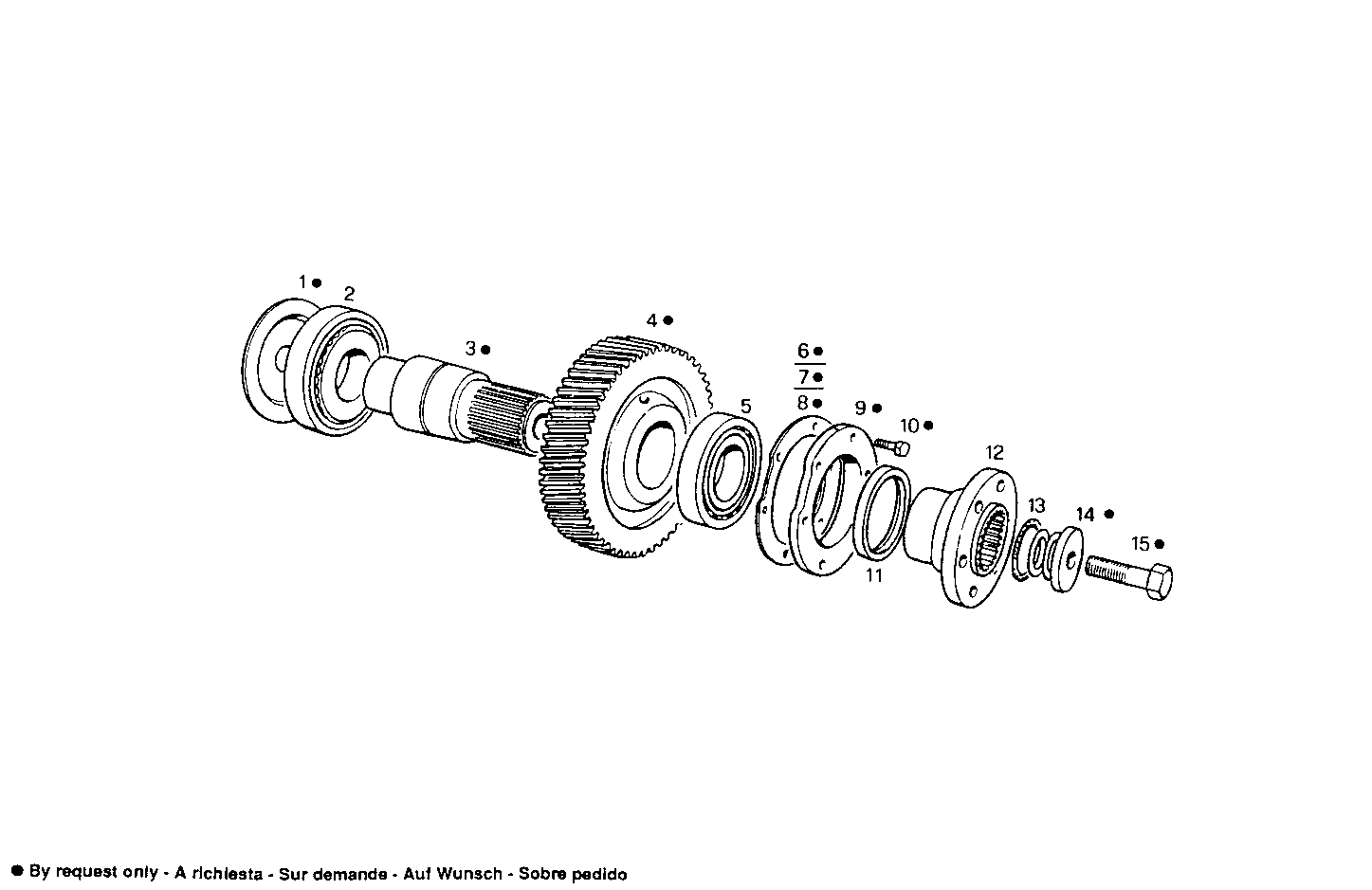

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | T5130001-03-001 | SPACING BAR SPACING BAR | 1 | |
| 2 | 8092067 | DRIVE BEARING DRIVE BEARING | 1 | |
| 3 | T5130001-03-003 | SHAFT SHAFT | 1 | |
| 4 | T5130001-03-004 | GEAR GEAR | 1 | |
| 5 | 8090750 | DRIVE BEARING DRIVE BEARING | 1 | |
| 6 | T5130001-03-006 | GASKET GASKET | 1 | |
| 7 | T5130001-03-007 | GASKET GASKET | 1 | |
| 8 | T5130001-03-008 | GASKET GASKET | 1 | |
| 9 | T5130001-03-009 | COVER COVER | 1 | |
| 10 | T5130001-03-010 | SCREW SCREW | 6 | |
| 11 | 8090451 | O-RING O-RING | 1 | |
| 12 | 8092068 | FLANGE FLANGE | 1 | |
| 13 | 8090538 | O-RING O-RING | 1 | |
| 14 | T5130001-03-014 | WASHER WASHER | 1 | |
| 15 | T5130001-03-015 | SCREW SCREW | 1 |
