MARINE GEAR
8361SRM38.11 — 8361SRM38

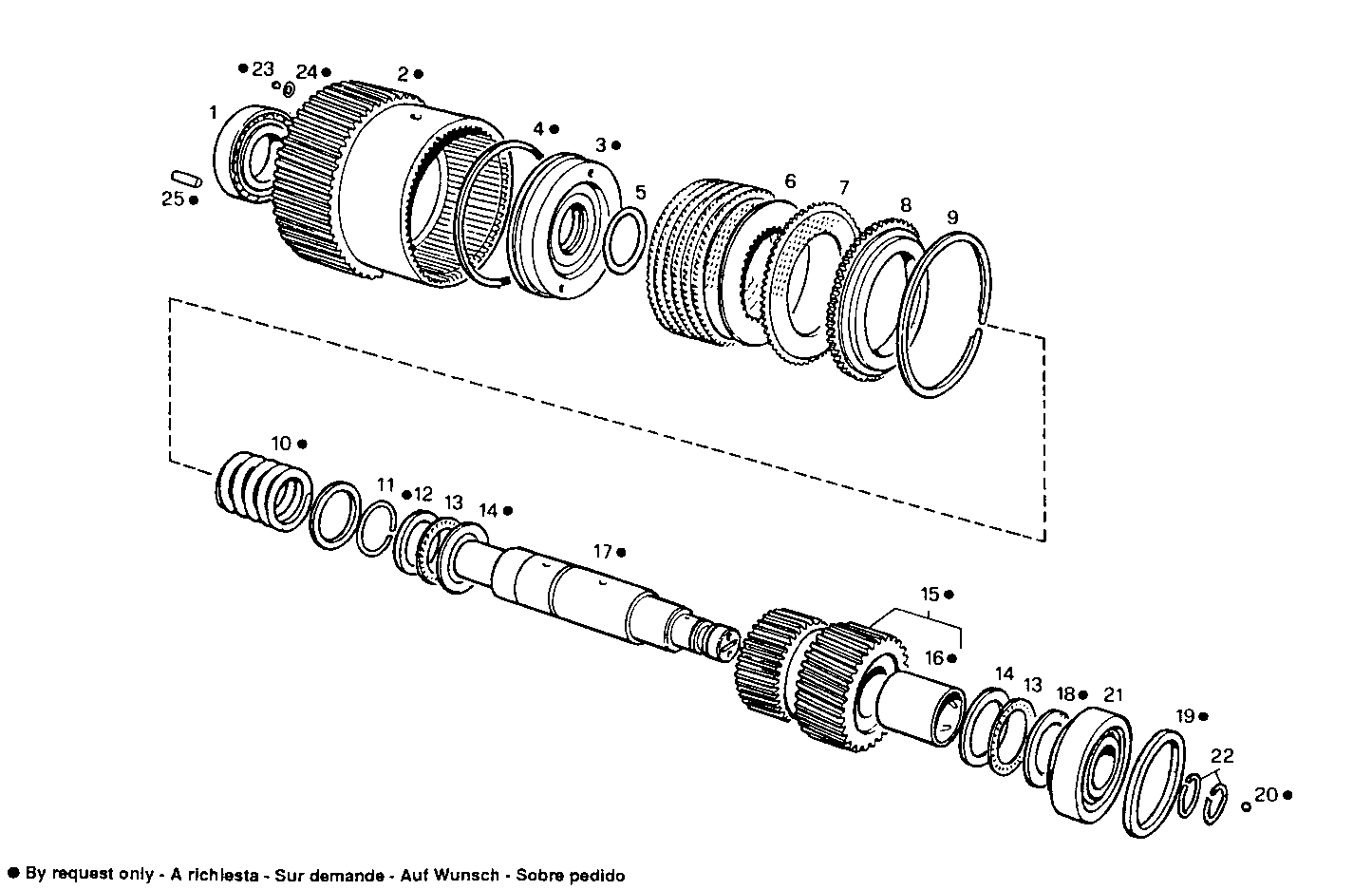

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8092069 | DRIVE BEARING DRIVE BEARING | 1 | |
| 2 | T5130001-04-002 | GEAR GEAR | 1 | |
| 3 | T5130001-04-003 | SPACING BAR SPACING BAR | 1 | |
| 4 | T5130001-04-004 | CIRCLIP CIRCLIP | 1 | |
| 5 | 8092070 | O-RING O-RING | 1 | |
| 6 | 8092071 | GEAR GEAR | 8 | |
| 7 | 8092072 | GEAR GEAR | 9 | |
| 8 | 8092073 | GEAR GEAR | 1 | |
| 9 | 8092074 | CIRCLIP CIRCLIP | 1 | |
| 10 | T5130001-04-010 | SPRING SPRING | 1 | |
| 11 | 8092075 | CIRCLIP CIRCLIP | 1 | |
| 12 | T5130001-04-012 | WASHER WASHER | 1 | |
| 13 | 8092076 | THRUST BEARING THRUST BEARING | 2 | |
| 14 | T5130001-04-014 | WASHER WASHER | 2 | |
| 15 | T5130001-04-015 | GEAR GEAR | 1 | |
| 16 | T5130001-04-016 | BUSH BUSH | 1 | |
| 17 | T5130001-04-017 | SHAFT SHAFT | 1 | |
| 18 | T5130001-04-018 | WASHER WASHER | 1 | |
| 19 | T5130001-04-019 | SPACING BAR SPACING BAR | 1 | |
| 20 | T5130001-04-020 | BALL BALL | 1 | |
| 21 | 8092077 | DRIVE BEARING DRIVE BEARING | 1 | |
| 22 | 8090473 | CIRCLIP CIRCLIP | 2 | |
| 23 | T5130001-04-023 | SPACING BAR SPACING BAR | 1 | |
| 24 | T5130001-04-024 | RING RING | 1 | |
| 25 | T5130001-04-025 | DOWEL PIN DOWEL PIN | 1 |
