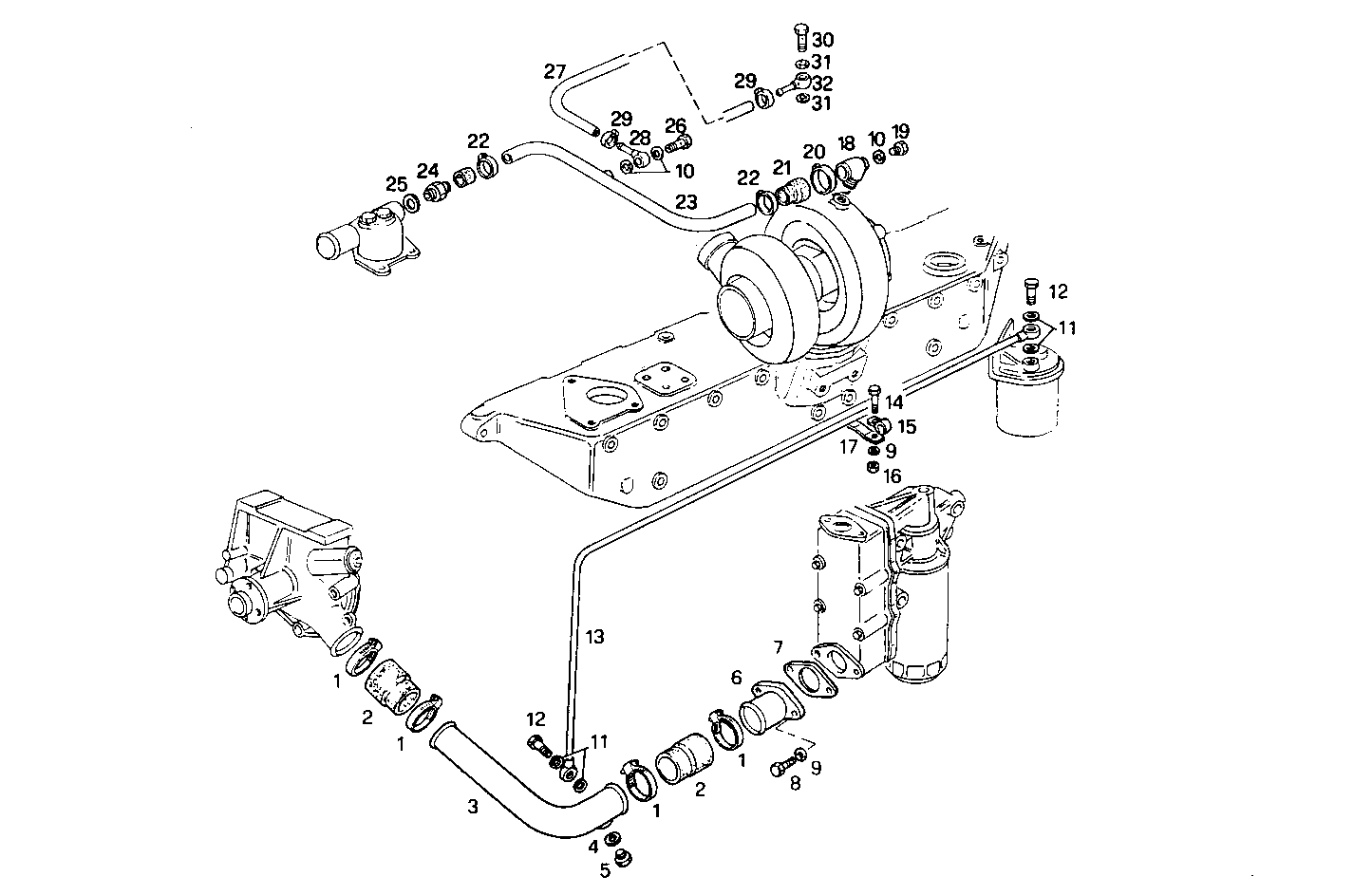

WATER LINES
8361SRM38.11 — 8361SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17764993 | CLIP CLIP | 4 | |
| 2 | 98432897 | WATER HOSE WATER HOSE | 2 | |
| 3 | 8105538 | WATER PIPE WATER PIPE | 1 | |
| 4 | 4858609 | WASHER WASHER | 1 | |
| 5 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 6 | 8012033 | WATER PIPE WATER PIPE | 1 | |
| 7 | 98412396 | GASKET GASKET | 1 | |
| 8 | 16046221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 4858606 | GASKET GASKET | 5 | |
| 11 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 13 | 8013889 | WATER PIPE WATER PIPE | 1 | |
| 14 | 16605424 | SCREW SCREW | 2 | |
| 15 | 17316490 | CLIP CLIP | 1 | |
| 16 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 17 | 8100407 | RETAINER RETAINER | 1 | |
| 18 | 8008297 | PIPE SOCKET PIPE SOCKET | 1 | |
| 19 | 11903814 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 17764793 | CLIP CLIP | 1 | |
| 21 | 61319110 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 22 | 17764693 | CLIP CLIP | 3 | |
| 23 | 8010695 | WATER PIPE WATER PIPE | 1 | |
| 24 | 4605229 | FLYWHEEL FLYWHEEL | 1 | |
| 25 | 16508460 | WASHER WASHER | 1 | |
| 26 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 27 | 8011195 | HOSE HOSE | 1 | |
| 28 | 4671701 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 29 | 18088392 | CLIP CLIP | 2 | |
| 30 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 31 | 4858607 | WASHER WASHER | 2 | |
| 32 | 4722869 | SWIVEL COUPLING SWIVEL COUPLING | 1 |
