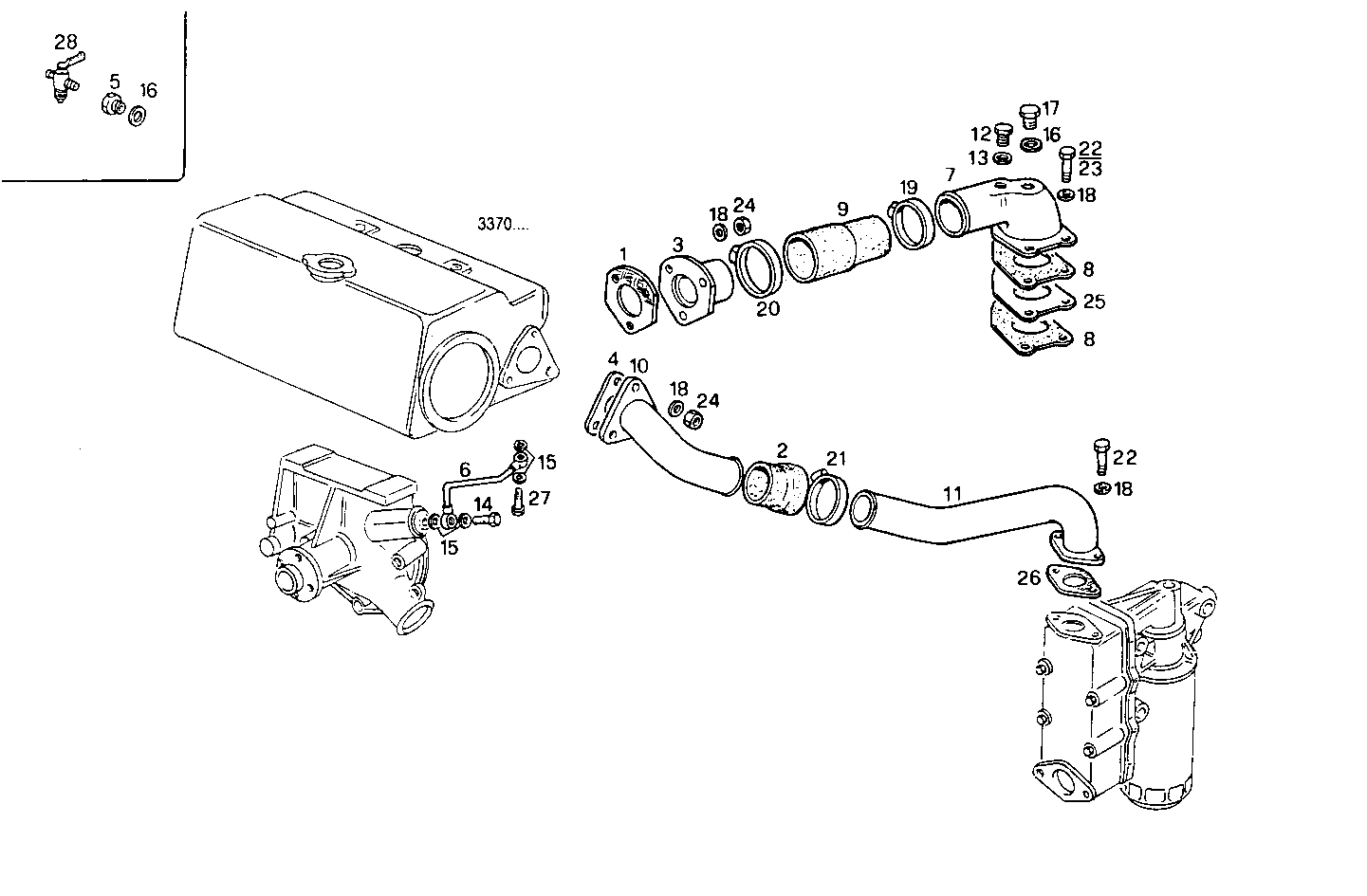

WATER LINES
8361SRM38.11 — 8361SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013464 | GASKET GASKET | 1 | |
| 2 | 98432897 | WATER HOSE WATER HOSE | 1 | |
| 3 | 4918819 | WATER PIPE WATER PIPE | 1 | |
| 4 | 8009905 | GASKET GASKET | 1 | |
| 5 | 8103321 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 8010758 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8103967 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8009915 | GASKET GASKET | 2 | |
| 9 | 8110485 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 10 | 4934309 | WATER PIPE WATER PIPE | 1 | |
| 11 | 8105499 | WATER PIPE WATER PIPE | 1 | |
| 12 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 13 | 4858609 | WASHER WASHER | 1 | |
| 14 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 15 | 4858607 | WASHER WASHER | 4 | |
| 16 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 17 | 16992440 | THREADED PLUG THREADED PLUG | 1 | |
| 18 | 17089474 | SPRING WASHER SPRING WASHER | 9 | |
| 19 | 17765093 | CLIP CLIP | 1 | |
| 20 | 17765193 | CLIP CLIP | 1 | |
| 21 | 17764993 | CLIP CLIP | 2 | |
| 22 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 23 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 25 | 8010397 | SPACING BAR SPACING BAR | 1 | |
| 26 | 98412396 | GASKET GASKET | 1 | |
| 27 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 28 | 8113445 | DRAIN COCK DRAIN COCK | 1 |
