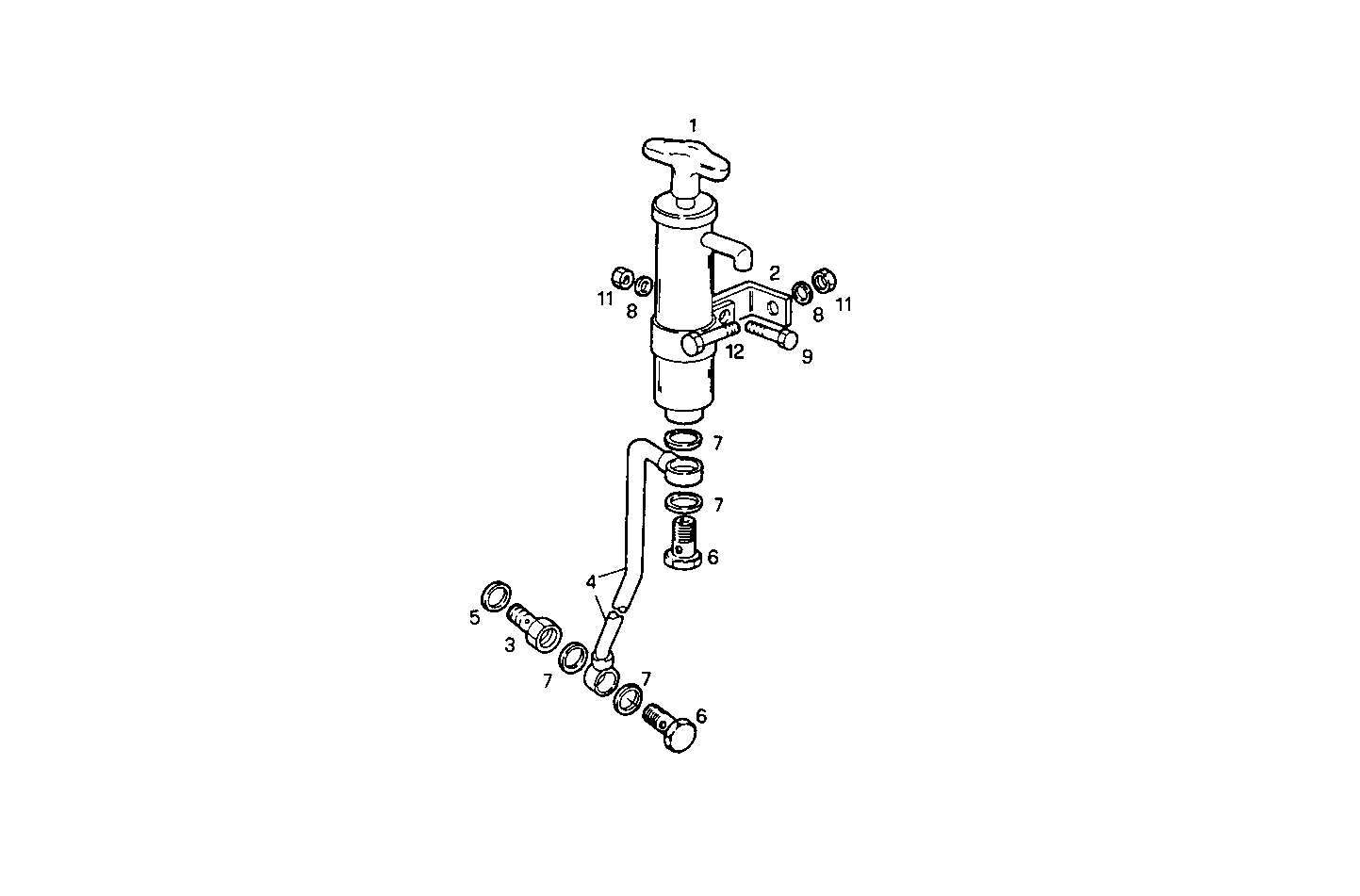

OIL OUTLET PUMP
8361SRM40.00 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019921 | HAND PUMP HAND PUMP | 1 | |
| 2 | 4931982 | RETAINER RETAINER | 1 | |
| 3 | 4935200 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8010762 | OIL LINE OIL LINE | 1 | |
| 5 | 10263460 | WASHER WASHER | 1 | |
| 6 | 4864084 | BANJO BOLT BANJO BOLT | 2 | |
| 7 | 4858609 | WASHER WASHER | 4 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 16605424 | SCREW SCREW | 1 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 |
