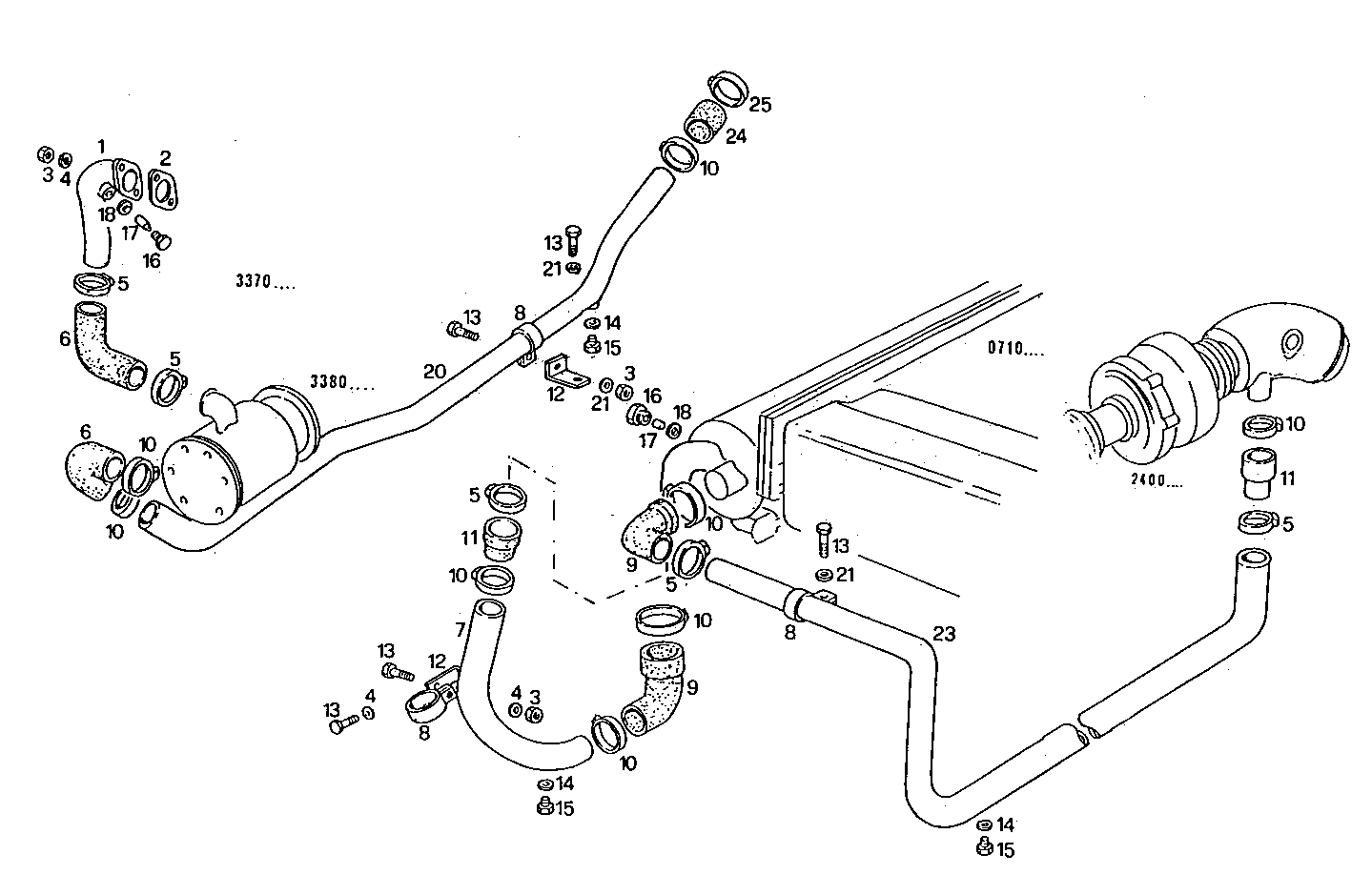

SEA WATER LINES
8361SRM40.00 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013360 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8008755 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 17764893 | CLIP CLIP | 6 | |
| 6 | 8100546 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 7 | 8013361 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8103077 | CLIP CLIP | 4 | |
| 9 | 8104316 | WATER HOSE WATER HOSE | 2 | |
| 10 | 17764793 | CLIP CLIP | 7 | |
| 11 | 8813238 | WATER HOSE WATER HOSE | 2 | |
| 12 | 8114208 | RETAINER RETAINER | 2 | |
| 13 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 14 | 4858606 | GASKET GASKET | 3 | |
| 15 | 16992140 | PLUG PLUG | 3 | |
| 16 | 8105276 | PLUG PLUG | 2 | |
| 17 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 18 | 4858609 | WASHER WASHER | 1 | |
| 20 | 8014810 | WATER PIPE WATER PIPE | 1 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 23 | 8014762 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8109863 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 25 | 17764993 | CLIP CLIP | 1 |
