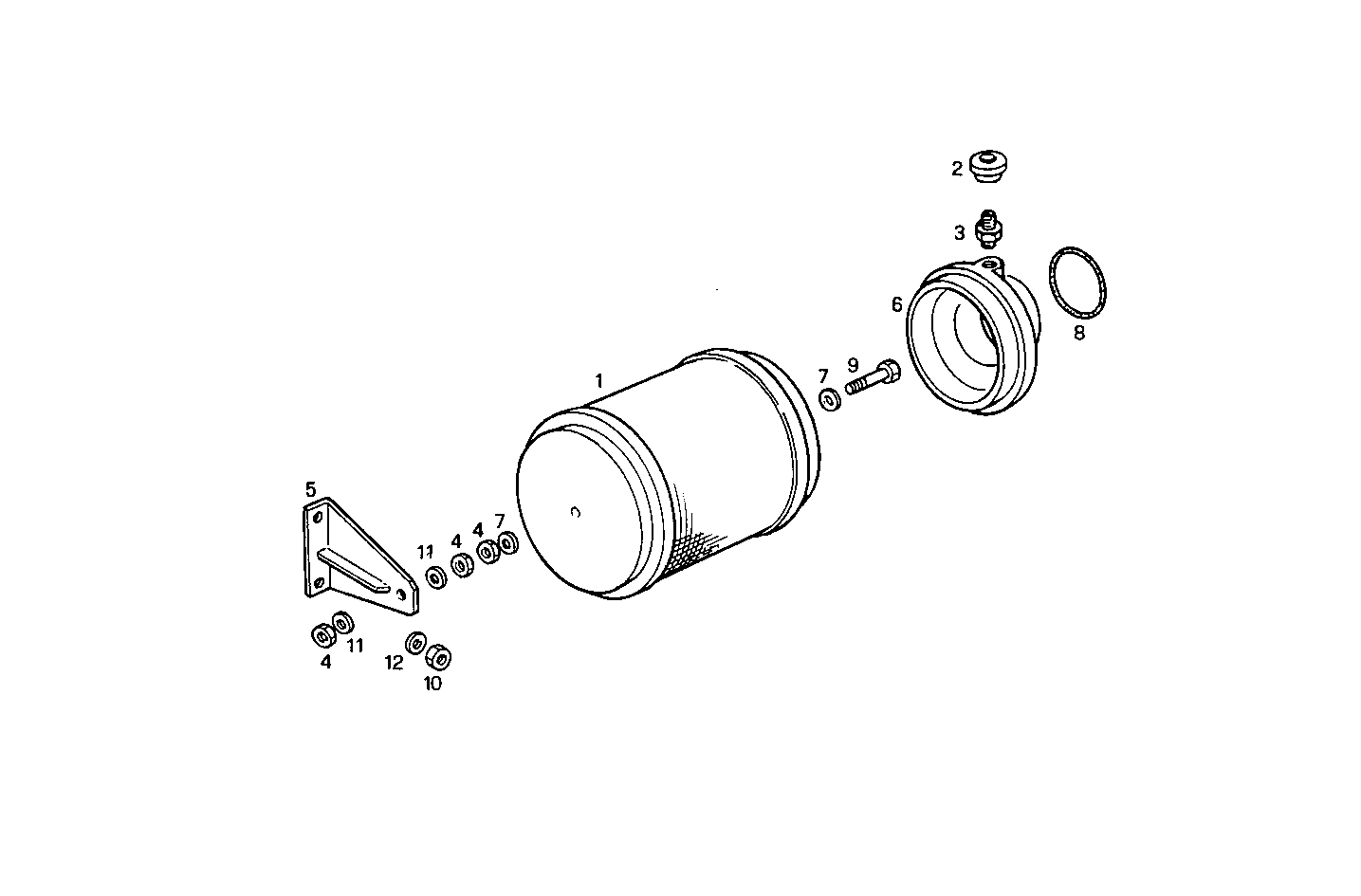

AIR CLEANER
8361SRM40.01 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8111553 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 2427063 | AIR PRESSURE GAUGE AIR PRESSURE GAUGE | 1 | |
| 3 | 8009522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 17038121 | HEXAGON NUT HEXAGON NUT | 3 | |
| 5 | 8112215 | RETAINER RETAINER | 1 | |
| 6 | 8111028 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 7 | 12644321 | WASHER WASHER | 2 | |
| 8 | 17285081 | O-RING O-RING | 1 | |
| 9 | 16608024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 2 |
