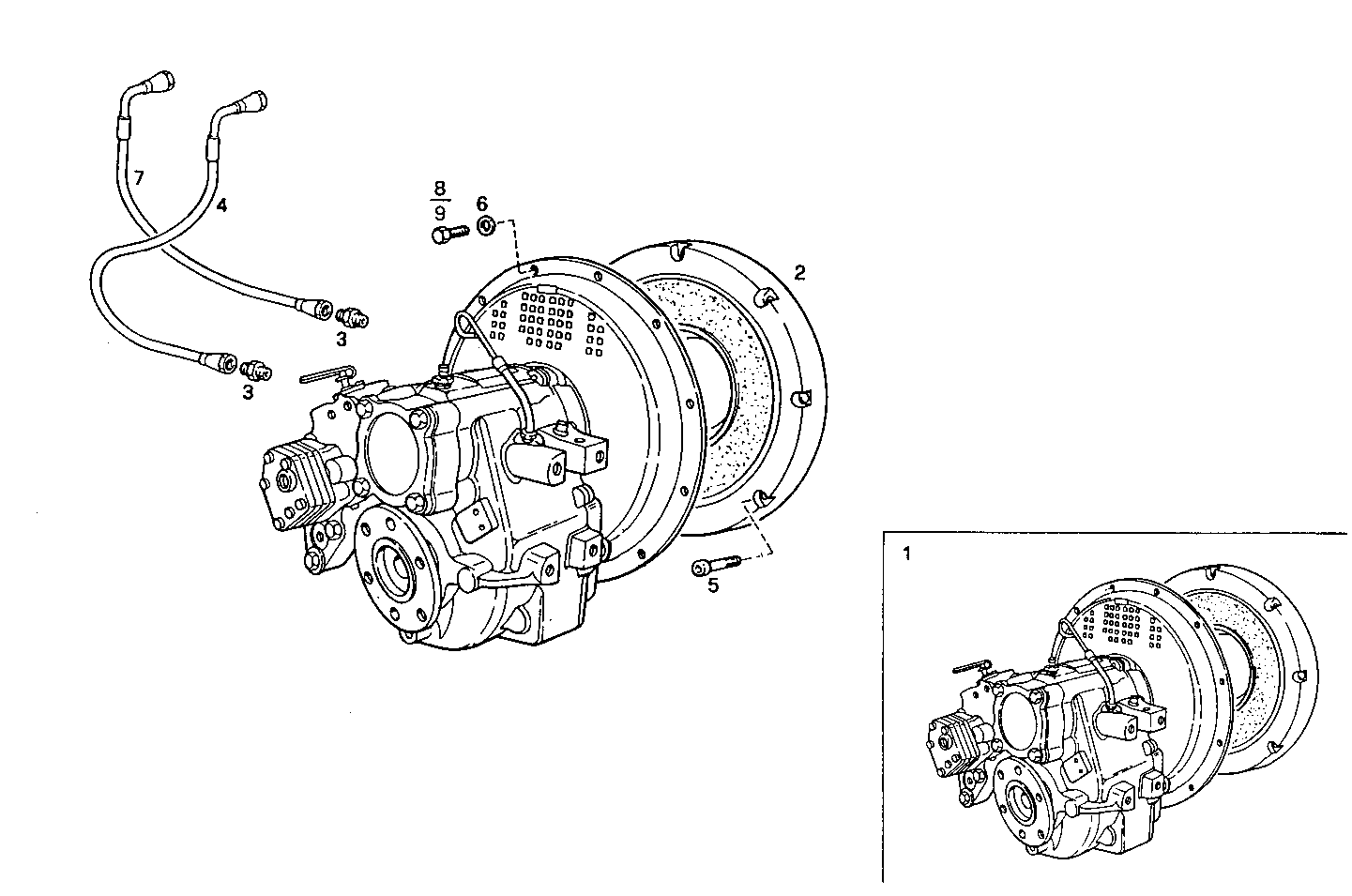

MARINE GEAR TWIN DISC MG 5061-A
8361SRM40.01 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8012987 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8014086 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 3 | 4935465 | PIPE SOCKET PIPE SOCKET | 2 | |
| 4 | 8105619 | HOSE HOSE | 1 | |
| 5 | 14308021 | SCREW SCREW | 8 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 7 | 8105620 | HOSE HOSE | 1 | |
| 8 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 11306921 | SCREW SCREW | 10 |
