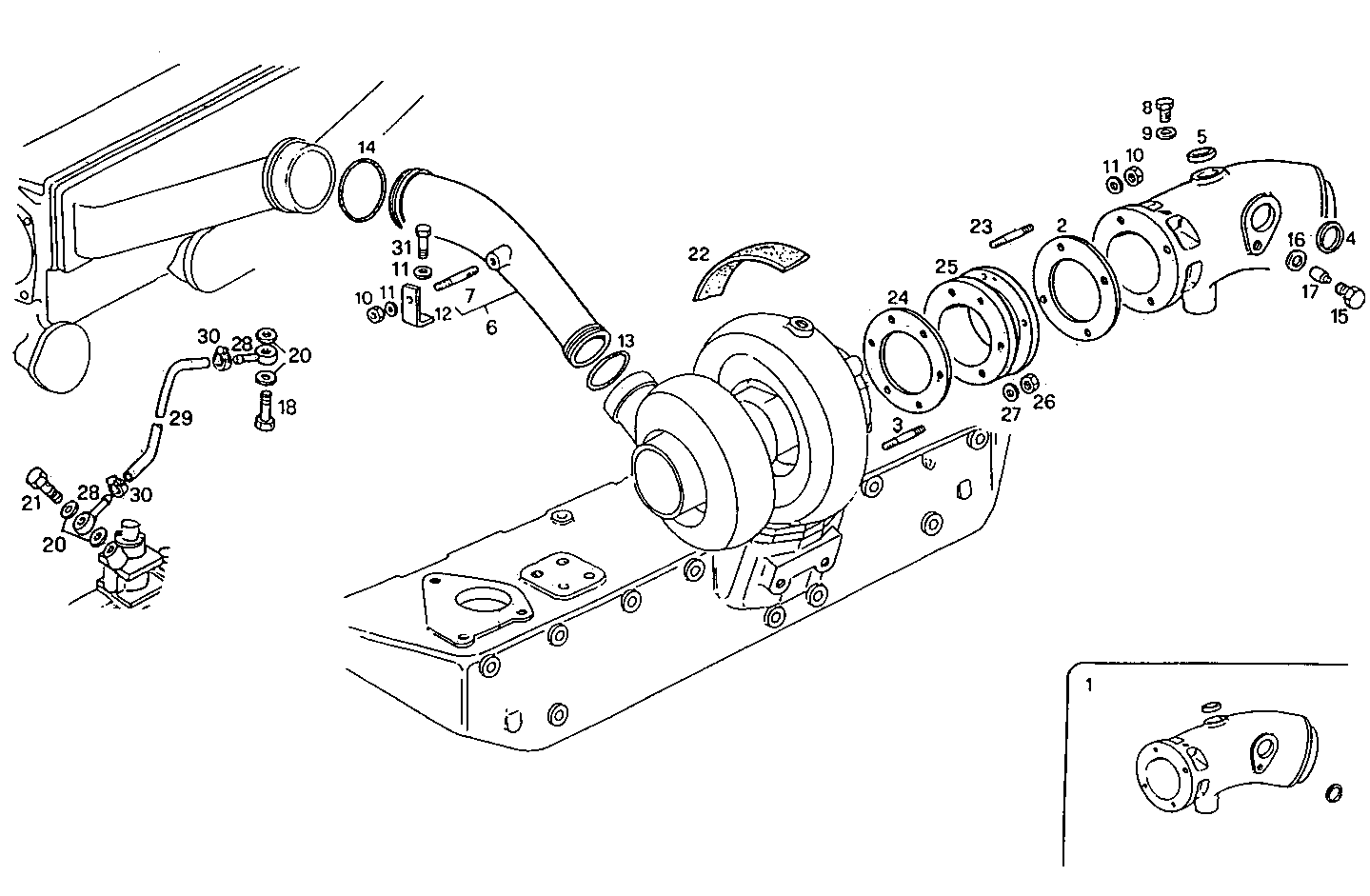

SUPERCHARGING LINES
8361SRM40.01 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8011125 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 2 | 8111833 | GASKET GASKET | 1 | |
| 3 | 13516821 | STUD STUD | 6 | |
| 4 | 16991170 | LOCK PLUG LOCK PLUG | 2 | |
| 5 | 16990870 | LOCK PLUG LOCK PLUG | 1 | |
| 6 | 8104494 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 7 | 13516621 | STUD STUD | 1 | |
| 8 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 9 | 4858607 | WASHER WASHER | 1 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 11 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 8105271 | RETAINER RETAINER | 1 | |
| 13 | 17296181 | O-RING O-RING | 1 | |
| 14 | 17296581 | O-RING O-RING | 1 | |
| 15 | 8105276 | PLUG PLUG | 1 | |
| 16 | 4858609 | WASHER WASHER | 1 | |
| 17 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 18 | 8107452 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 98470306 | GASKET GASKET | 4 | |
| 21 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 22 | 8101542 | PROTECTION PROTECTION | 1 | |
| 23 | 13717021 | STUD STUD | 4 | |
| 24 | 4772331 | SEAL GASKET SEAL GASKET | 1 | |
| 25 | 8014208 | SPACING BAR SPACING BAR | 1 | |
| 26 | 17038221 | HEXAGON NUT HEXAGON NUT | 6 | |
| 27 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 28 | 98434018 | THREADED UNION THREADED UNION | 2 | |
| 29 | 4927136 | HOSE HOSE | 1 | |
| 30 | 17764393 | CLIP CLIP | 2 | |
| 31 | 16043421 | HEXAGON BOLT HEXAGON BOLT | 1 |
