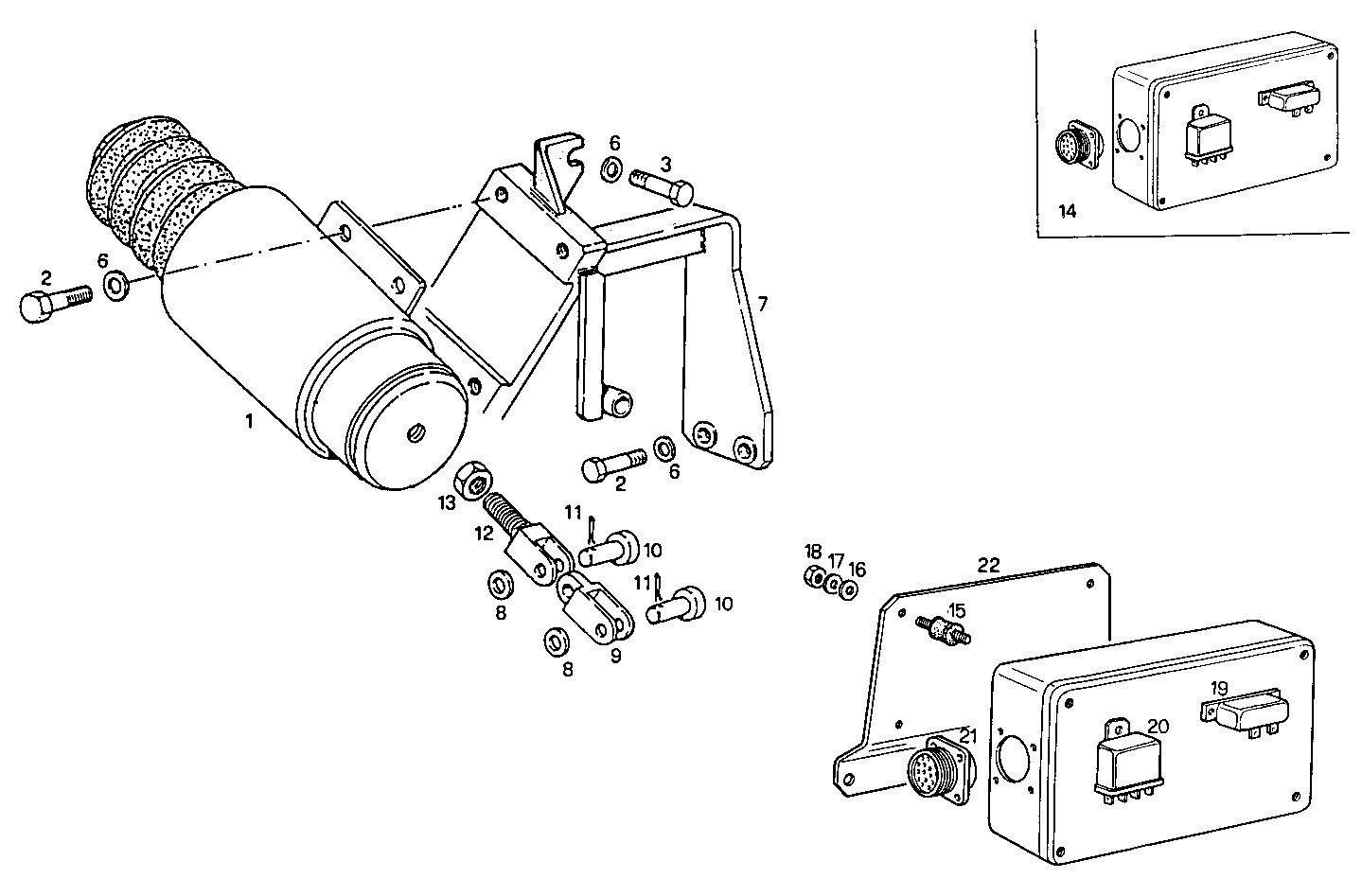

ELECTRIC STOP ENGINE
8361SRM40.10 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017618 | SOLENOID SOLENOID | 1 | |
| 2 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 3 | 16689624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 17088471 | SPRING WASHER SPRING WASHER | 7 | |
| 7 | 8006296 | SUPPORT SUPPORT | 1 | |
| 8 | 14497801 | WASHER WASHER | 2 | |
| 9 | 8108833 | CLEVIS CLEVIS | 1 | |
| 10 | 17718411 | PIN PIN | 2 | |
| 11 | 10734101 | SPLIT PIN SPLIT PIN | 2 | |
| 12 | 8109159 | CLEVIS CLEVIS | 1 | |
| 13 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 8020687 | ENGINE STOP ENGINE STOP | 1 | |
| 15 | 8105105 | DOWEL DOWEL | 4 | |
| 16 | 17708674 | WASHER WASHER | 4 | |
| 17 | 17094501 | WASHER WASHER | 4 | |
| 18 | 17037721 | NUT NUT | 4 | |
| 19 | 8109519 | RELAY RELAY | 1 | |
| 20 | 8108575 | RELAY RELAY | 1 | |
| 21 | 8113170 | CONNECTION CONNECTION | 1 | |
| 22 | 8017595 | RETAINER RETAINER | 1 |
