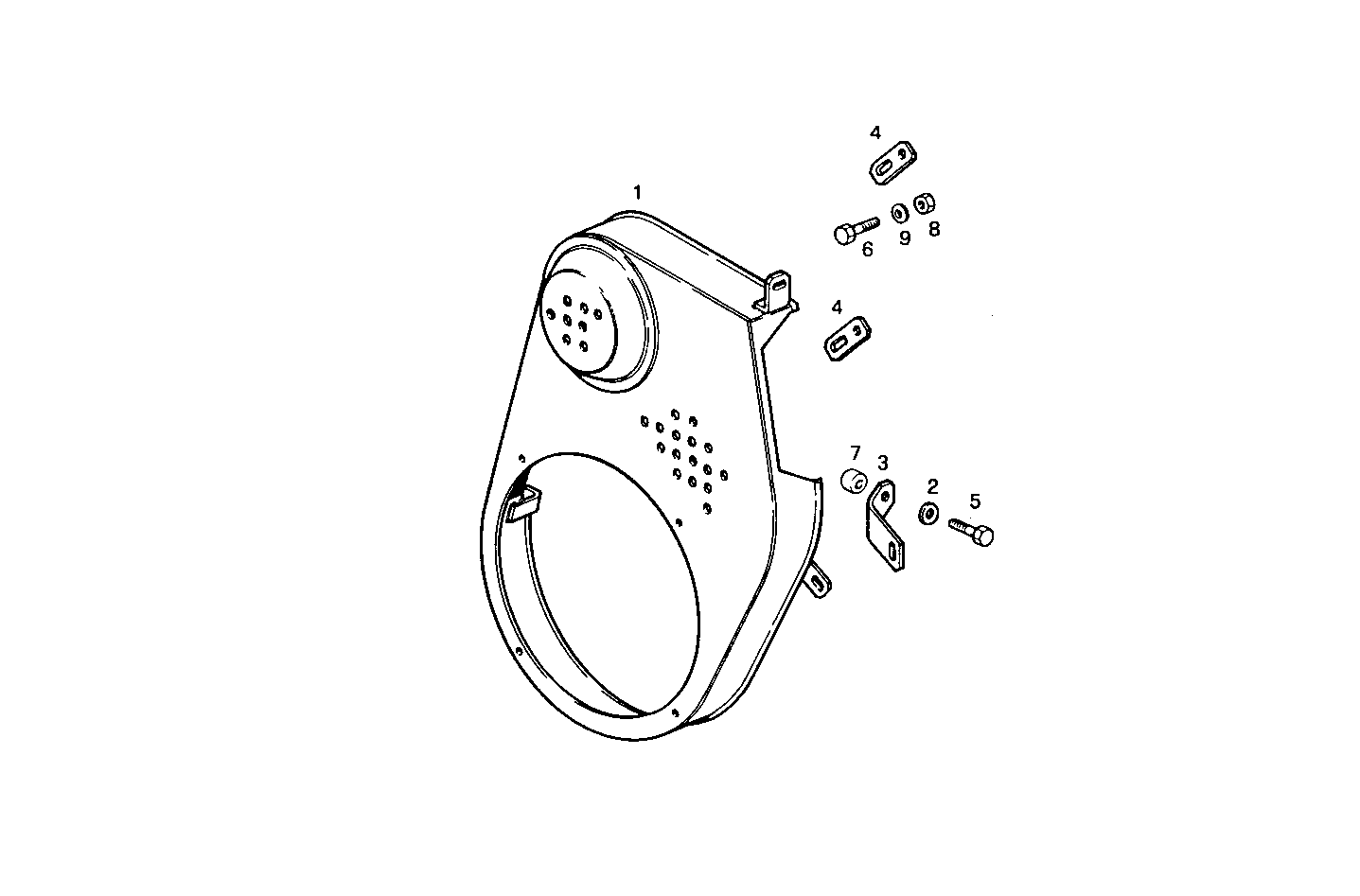

GUARD
8361SRM40.10 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4936806 | PROTECTION PROTECTION | 1 | |
| 2 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 3 | 4936809 | RETAINER RETAINER | 1 | |
| 4 | 4936808 | RETAINER RETAINER | 2 | |
| 5 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 7 | 4934572 | SPACING BAR SPACING BAR | 1 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 3 |
