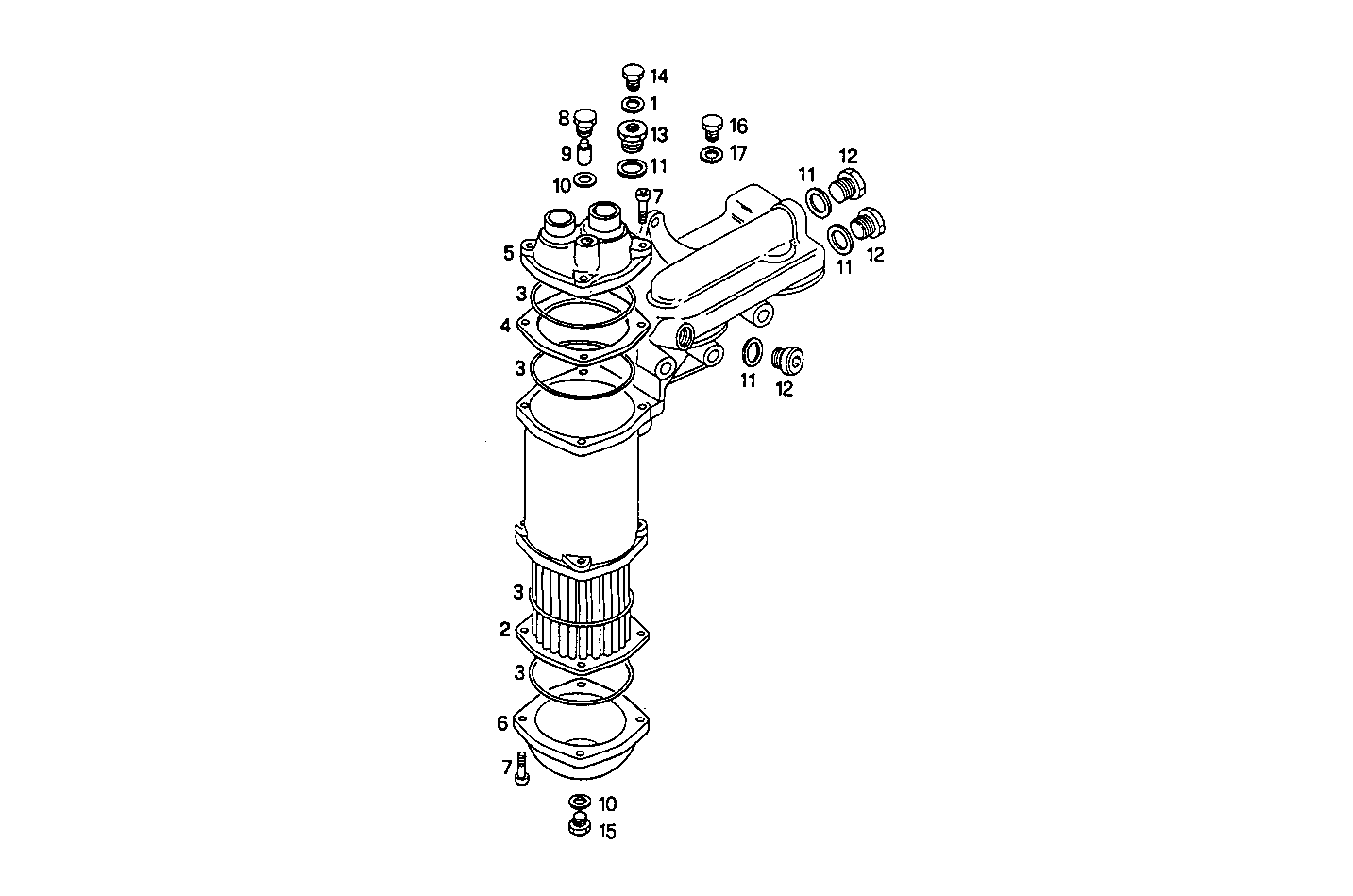

OIL - WATER HEAT EXCHANGER
8361SRM40.10 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4858609 | WASHER WASHER | 1 | |
| 2 | 8017399 | TUBE STACK TUBE STACK | 1 | |
| 3 | 99431653 | O-RING O-RING | 4 | |
| 4 | 8017862 | SPACING BAR SPACING BAR | 1 | |
| 5 | 8017605 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 6 | 8017606 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 7 | 16690724 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 8 | 4917793 | PLUG PLUG | 1 | |
| 9 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 10 | 4858610 | WASHER WASHER | 2 | |
| 11 | 98429281 | SEAL GASKET SEAL GASKET | 6 | |
| 12 | 16994040 | PLUG PLUG | 5 | |
| 13 | 8005151 | PIPE SOCKET PIPE SOCKET | 1 | |
| 14 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 15 | 16992540 | PLUG PLUG | 1 | |
| 16 | 16992311 | LOCK PLUG LOCK PLUG | 5 | |
| 17 | 4858608 | SEAL GASKET SEAL GASKET | 1 |
