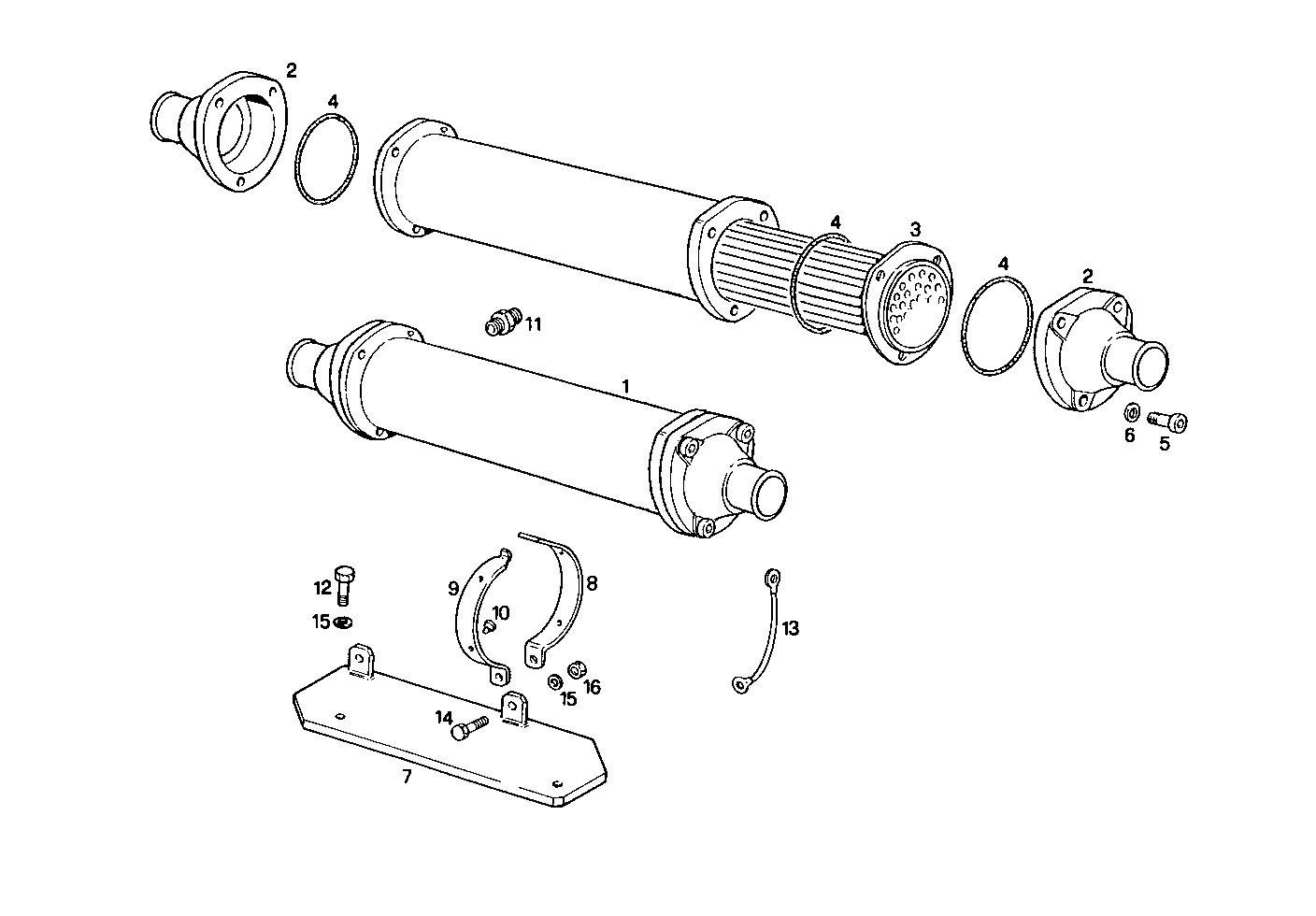

REVERSER WATER HEAT EXCHANGER
8361SRM40.10 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017381 | MARINE GEAR OIL HEAT EXCH MARINE GEAR OIL HEAT EXCH | 1 | |
| 2 | 8017383 | COVER COVER | 2 | |
| 3 | 8017384 | TUBE STACK TUBE STACK | 1 | |
| 4 | 17290881 | O-RING O-RING | 3 | |
| 5 | 16690824 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 6 | |
| 6 | 17800474 | WASHER WASHER | 6 | |
| 7 | 8017569 | SUPPORT SUPPORT | 1 | |
| 8 | 8017424 | CLAMP CLAMP | 2 | |
| 9 | 8017425 | CLAMP CLAMP | 2 | |
| 10 | 1366290 | RUBBER PAD RUBBER PAD | 8 | |
| 11 | 8017495 | PIPE SOCKET PIPE SOCKET | 2 | |
| 12 | 11306921 | SCREW SCREW | 2 | |
| 13 | 8113786 | ENGINE HARNESS ENGINE HARNESS | 1 | |
| 14 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 17038121 | HEXAGON NUT HEXAGON NUT | 2 |
