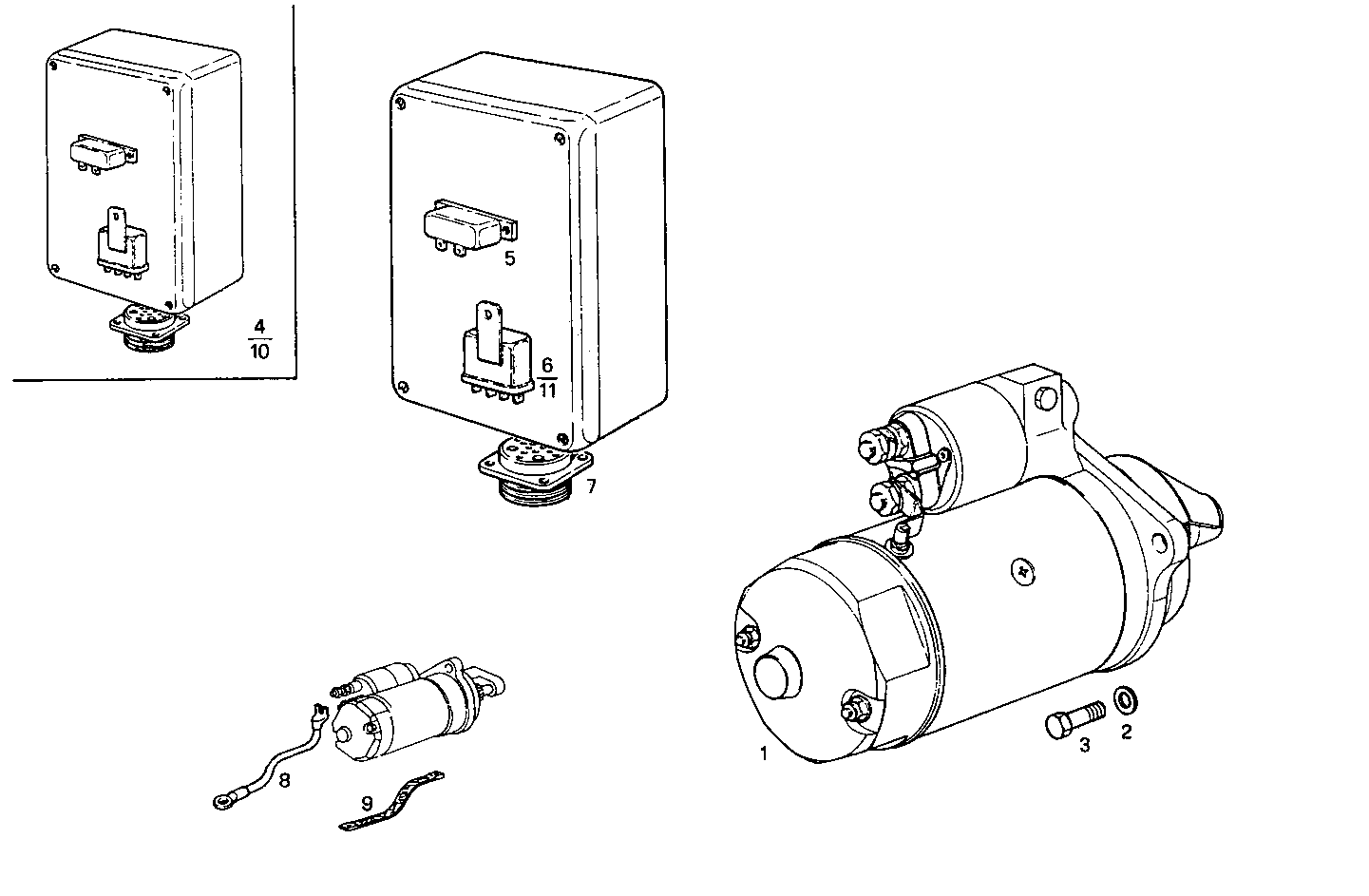

STARTER MOTOR
8361SRM40.10 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022081 | STARTER MOTOR STARTER MOTOR | 1 | |
| 2 | 17095004 | WASHER WASHER | 3 | |
| 3 | 10923621 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 4 | 8020686 | ENGINE STOP ENGINE STOP | 1 | |
| 5 | 8108574 | RELAY RELAY | 1 | |
| 6 | 8109522 | RELAY RELAY | 1 | |
| 7 | 8113170 | CONNECTION CONNECTION | 1 | |
| 8 | 8109878 | EARTH WIRE EARTH WIRE | 1 | |
| 9 | 8112259 | EARTH WIRE EARTH WIRE | 1 | |
| 10 | 8020686 | ENGINE STOP ENGINE STOP | 1 |
