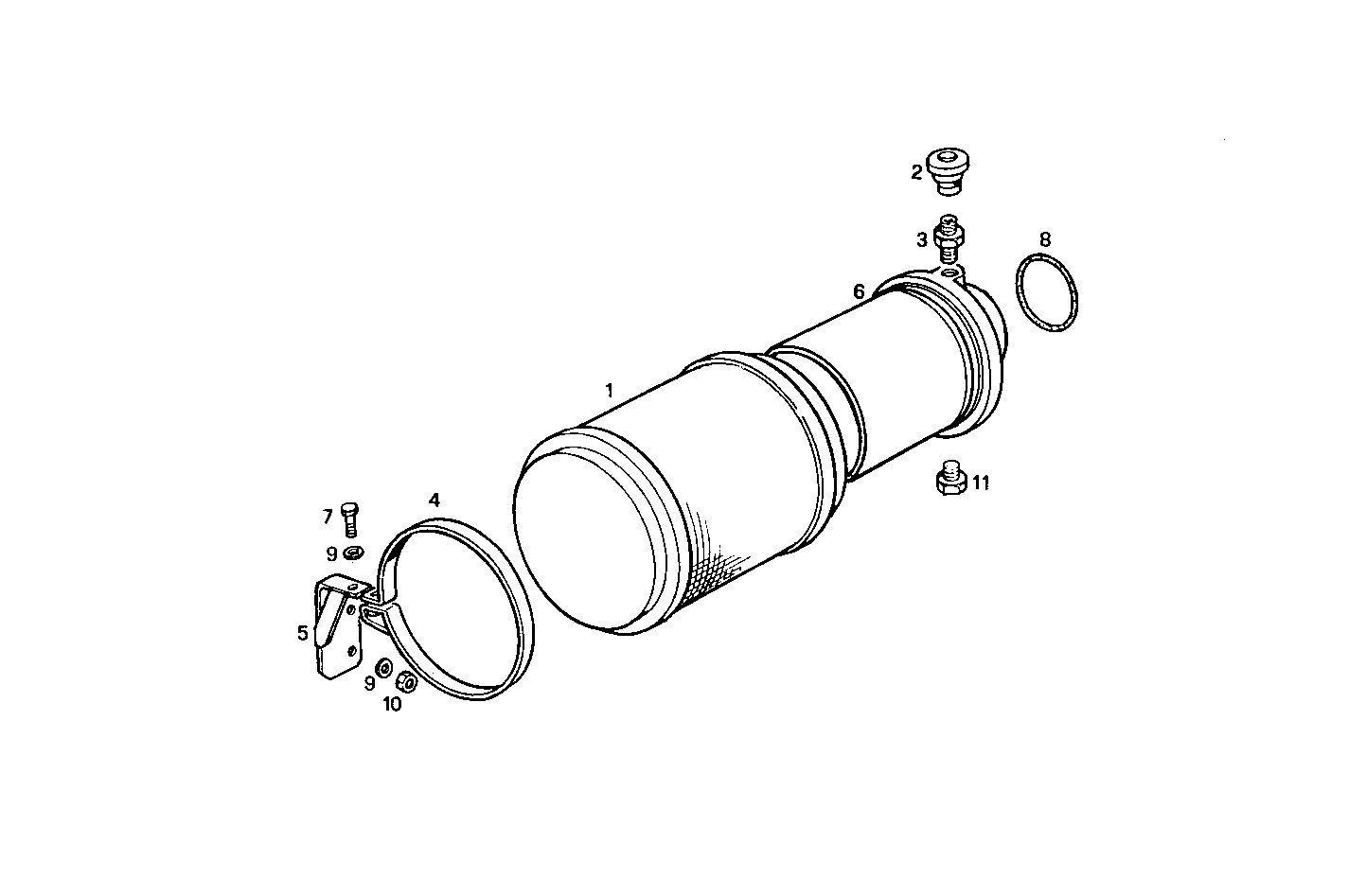

AIR CLEANER
8361SRM40.11 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017271 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8027423 | CHOCKED FILTER INDIC. CHOCKED FILTER INDIC. | 1 | |
| 3 | 8009522 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8017331 | CLIP CLIP | 1 | |
| 5 | 8017336 | RETAINER RETAINER | 1 | |
| 6 | 8017273 | SUPPORT SUPPORT | 1 | |
| 7 | 16605724 | SCREW SCREW | 1 | |
| 8 | 17285081 | O-RING O-RING | 1 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 3 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 11 | 16992440 | THREADED PLUG THREADED PLUG | 1 |
