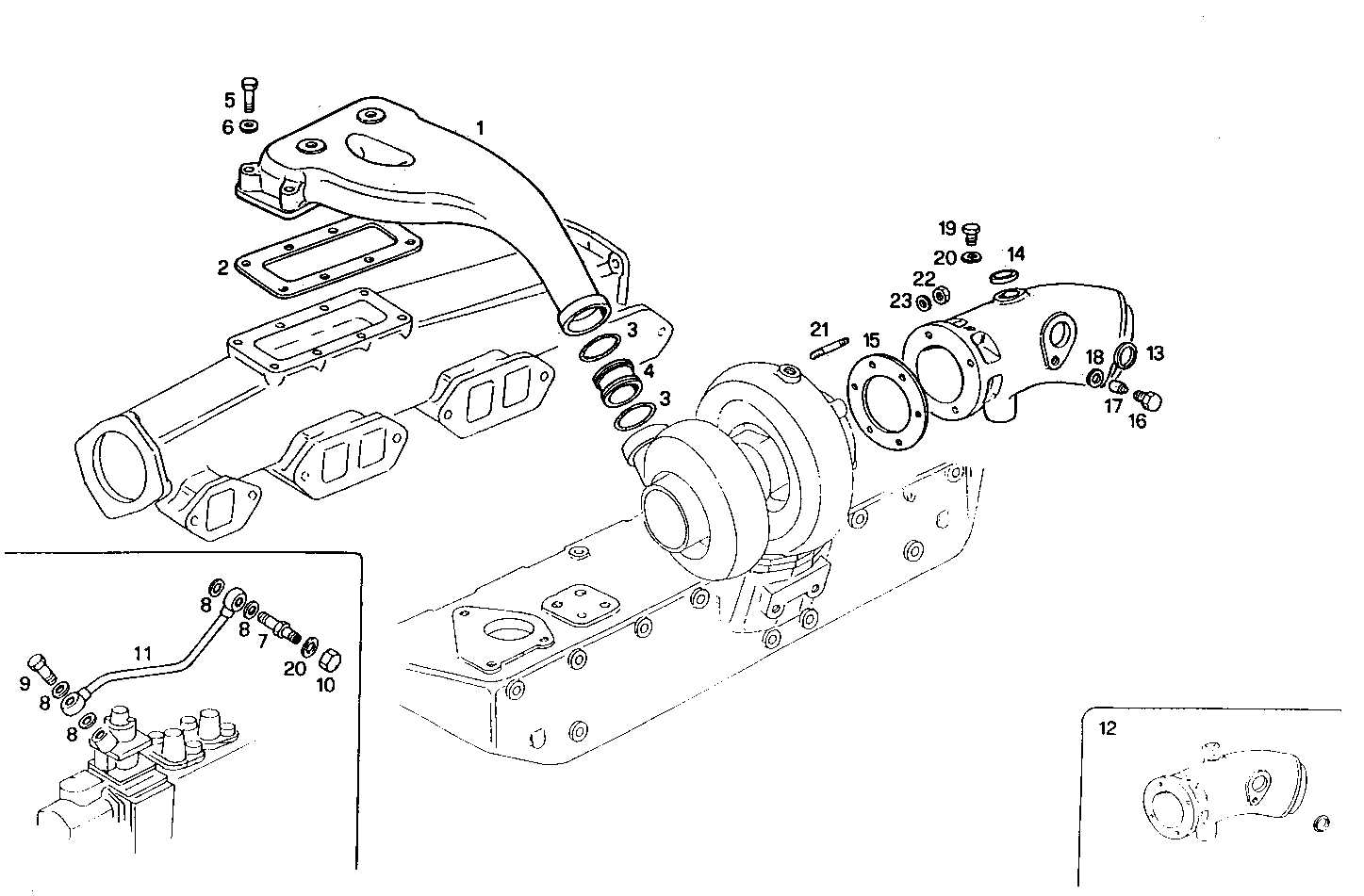

SUPERCHARGING LINES
8361SRM40.11 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017208 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 8019078 | GASKET GASKET | 1 | |
| 3 | 17296181 | O-RING O-RING | 2 | |
| 4 | 8017252 | WATER HOSE WATER HOSE | 1 | |
| 5 | 8023383 | SCREW SCREW | 7 | |
| 6 | 17793804 | WASHER WASHER | 7 | |
| 7 | 10180211 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 8 | 98474306 | WASHER WASHER | 4 | |
| 9 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 10 | 10183217 | LOCK PLUG LOCK PLUG | 1 | |
| 11 | 8021640 | HOSE HOSE | 1 | |
| 12 | 8020359 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 13 | 16991170 | LOCK PLUG LOCK PLUG | 2 | |
| 14 | 16990870 | LOCK PLUG LOCK PLUG | 1 | |
| 15 | 8111833 | GASKET GASKET | 1 | |
| 16 | 8105276 | PLUG PLUG | 1 | |
| 17 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 18 | 4858609 | WASHER WASHER | 1 | |
| 19 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 20 | 4858607 | WASHER WASHER | 2 | |
| 21 | 16729424 | STUD STUD | 4 | |
| 22 | 17308531 | NUT NUT | 4 | |
| 23 | 17094914 | WASHER WASHER | 4 |
