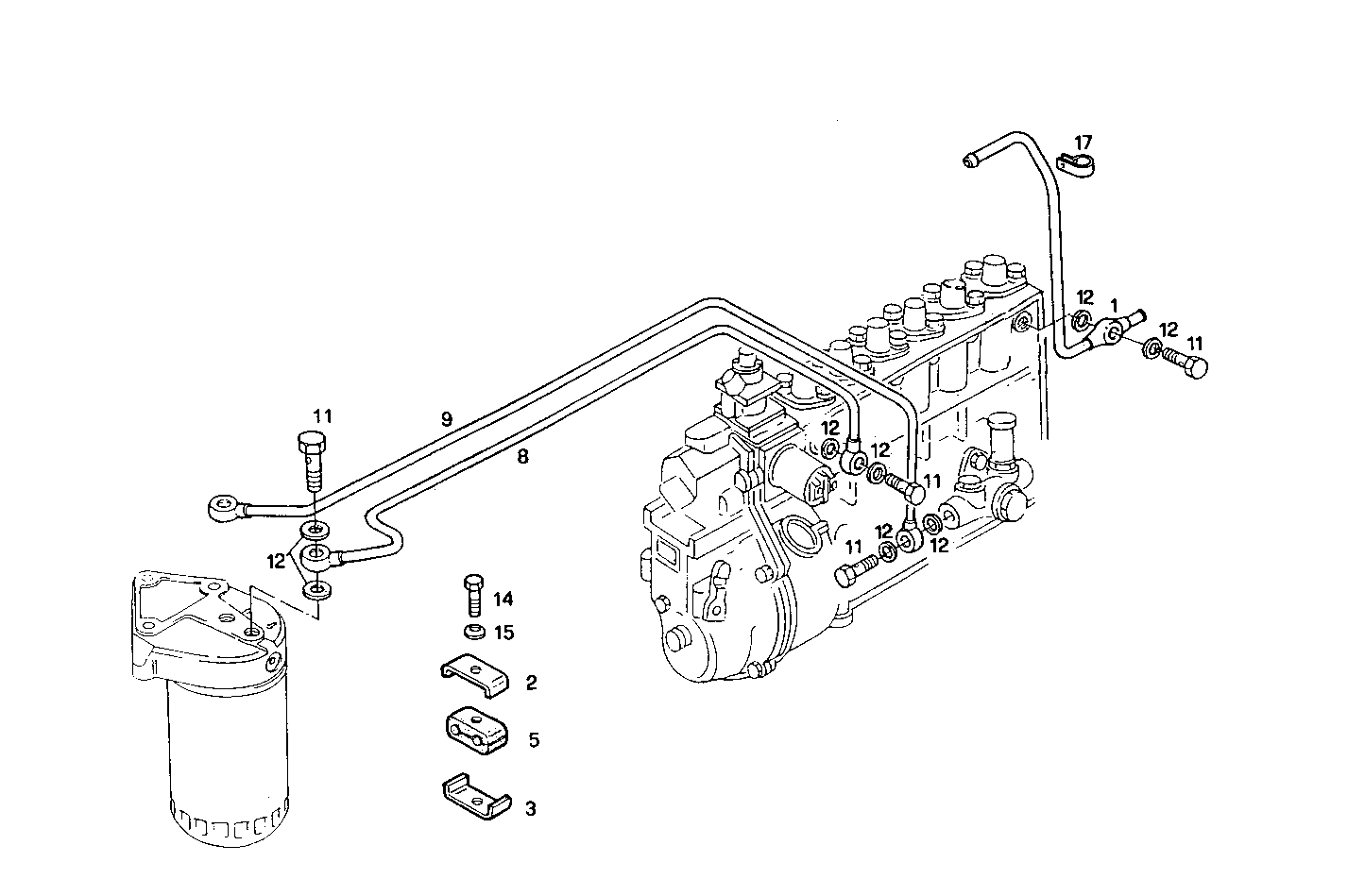

FUEL LINES
8361SRM40.40 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021595 | FUEL LINE FUEL LINE | 1 | |
| 2 | 4644288 | CLIP CLIP | 1 | |
| 3 | 4644289 | CLIP CLIP | 1 | |
| 5 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 8 | 8016339 | FUEL LINE FUEL LINE | 1 | |
| 9 | 8016239 | FUEL LINE FUEL LINE | 1 | |
| 11 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 4 | |
| 12 | 98474308 | SEAL GASKET SEAL GASKET | 8 | |
| 14 | 16603824 | SCREW SCREW | 1 | |
| 15 | 17088474 | WASHER WASHER | 1 | |
| 17 | 17314890 | CLIP CLIP | 1 |
