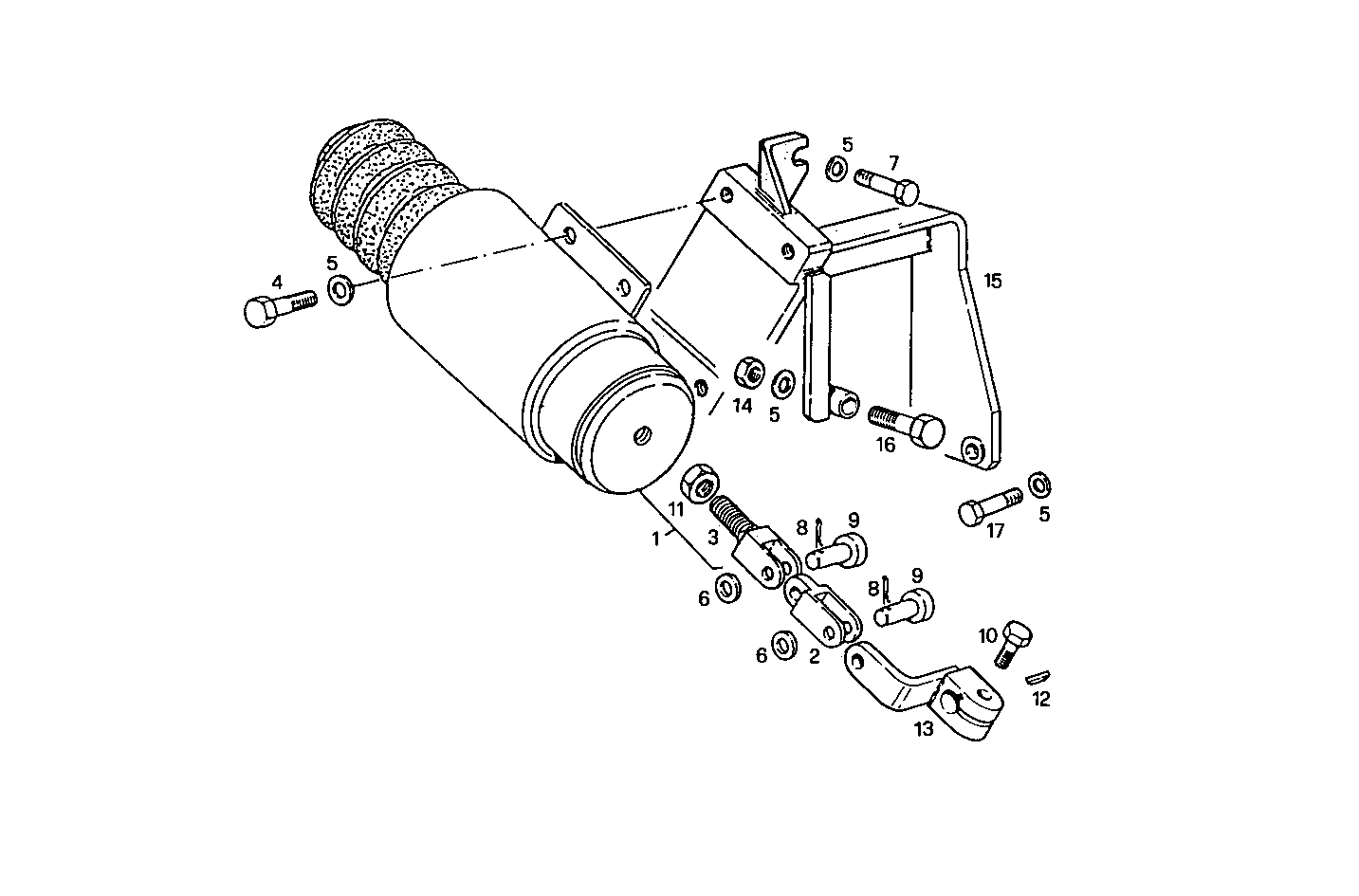

STOP SOLENOID - ENERGIZE TO STOP - 24V
8361SRM40.40 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017620 | SOLENOID SOLENOID | 1 | |
| 2 | 8108833 | CLEVIS CLEVIS | 1 | |
| 3 | 8109159 | CLEVIS CLEVIS | 1 | |
| 4 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 5 | 17088474 | WASHER WASHER | 8 | |
| 6 | 14497801 | WASHER WASHER | 2 | |
| 7 | 16689624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 10734101 | SPLIT PIN SPLIT PIN | 2 | |
| 9 | 17718411 | PIN PIN | 2 | |
| 10 | 10977721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 8101048 | KEY KEY | 1 | |
| 13 | 8110753 | LEVER LEVER | 1 | |
| 14 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 8006296 | SUPPORT SUPPORT | 1 | |
| 16 | 17133421 | SCREW SCREW | 1 | |
| 17 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 2 |
