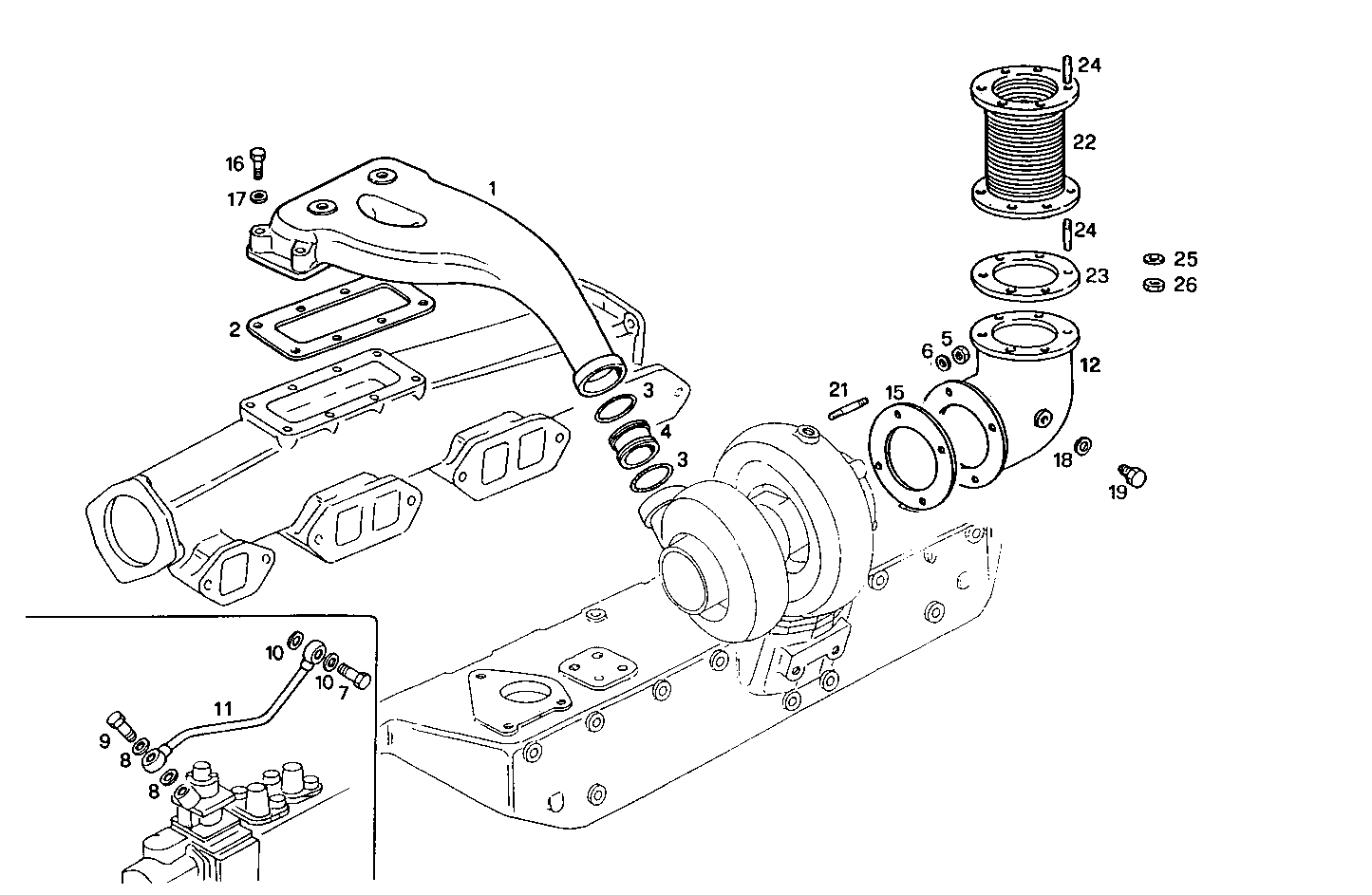

SUPERCHARGING LINES
8361SRM40.40 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017208 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 2 | 8019078 | GASKET GASKET | 1 | |
| 3 | 17296181 | O-RING O-RING | 2 | |
| 4 | 8017252 | WATER HOSE WATER HOSE | 1 | |
| 5 | 17308531 | NUT NUT | 11 | |
| 6 | 17094904 | WASHER WASHER | 11 | |
| 7 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 8 | 98474306 | WASHER WASHER | 2 | |
| 9 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 10 | 98474305 | WASHER WASHER | 2 | |
| 11 | 8017577 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 12 | 8012591 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 15 | 8111833 | GASKET GASKET | 1 | |
| 16 | 8023383 | SCREW SCREW | 7 | |
| 17 | 17793804 | WASHER WASHER | 7 | |
| 18 | 4858607 | WASHER WASHER | 1 | |
| 19 | 16992240 | THREADED PLUG THREADED PLUG | 1 | |
| 21 | 16729424 | STUD STUD | 4 | |
| 22 | 8012463 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 23 | 8009600 | GASKET GASKET | 1 | |
| 24 | 13449524 | STUD STUD | 12 | |
| 25 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 26 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 |
