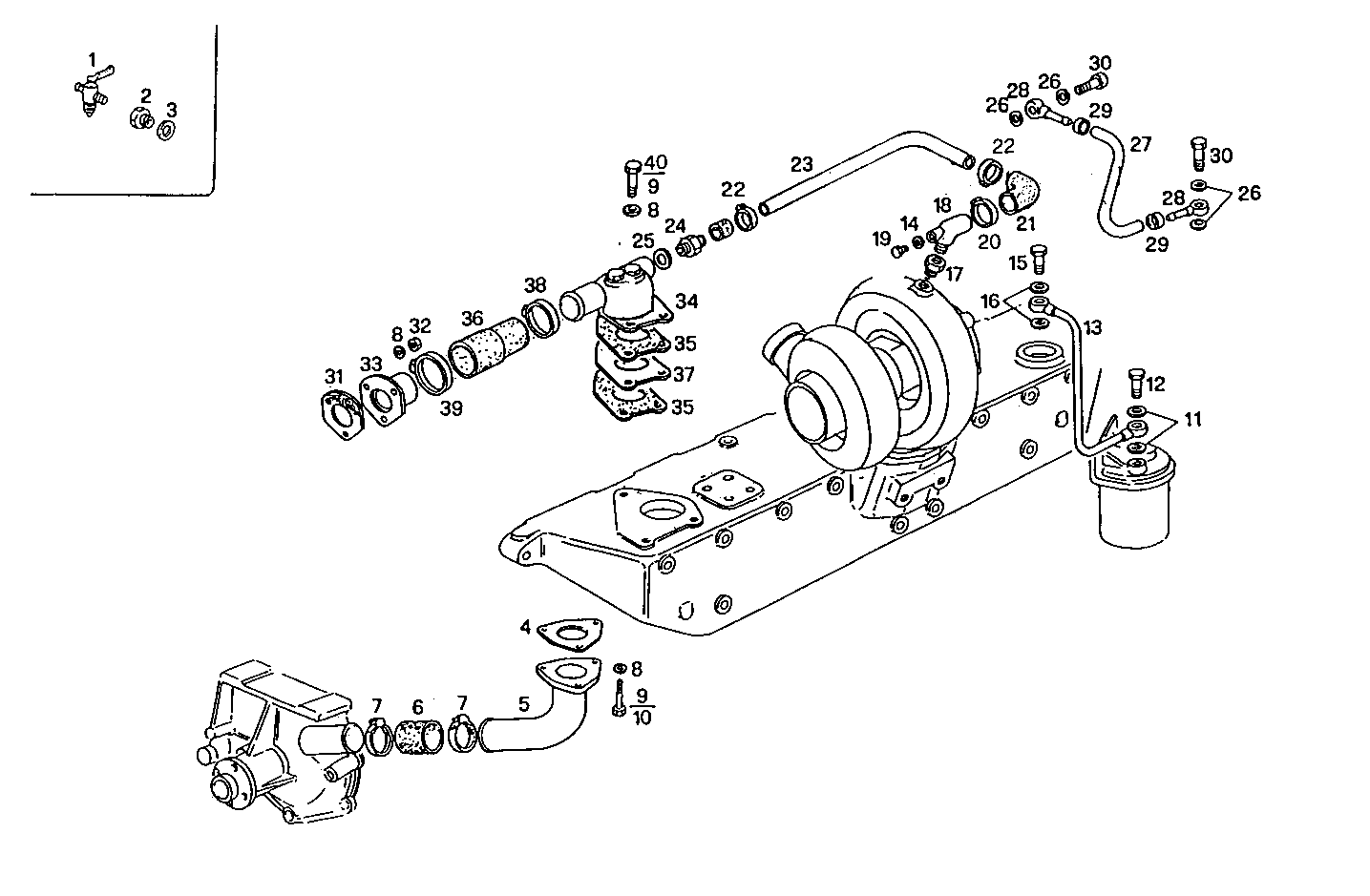

WATER LINES
8361SRM40.40 — 8361SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8113445 | DRAIN COCK DRAIN COCK | 1 | |
| 2 | 8103321 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 99431653 | O-RING O-RING | 1 | |
| 4 | 8009905 | GASKET GASKET | 1 | |
| 5 | 8017469 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17743687 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 17764993 | CLIP CLIP | 2 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 9 | |
| 9 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 10 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 12 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 13 | 8017546 | WATER PIPE WATER PIPE | 1 | |
| 14 | 4858606 | GASKET GASKET | 1 | |
| 15 | 8015578 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 16 | 98474306 | WASHER WASHER | 3 | |
| 17 | 8008297 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 4605529 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 20 | 17764793 | CLIP CLIP | 1 | |
| 21 | 8015523 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 22 | 17764693 | CLIP CLIP | 3 | |
| 23 | 8010695 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8110702 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 10263460 | WASHER WASHER | 1 | |
| 26 | 4858607 | WASHER WASHER | 5 | |
| 27 | 8011195 | HOSE HOSE | 1 | |
| 28 | 98434018 | THREADED UNION THREADED UNION | 2 | |
| 29 | 18088392 | CLIP CLIP | 2 | |
| 30 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 31 | 8013464 | GASKET GASKET | 1 | |
| 32 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 33 | 4918819 | WATER PIPE WATER PIPE | 1 | |
| 34 | 8103967 | WATER PIPE WATER PIPE | 1 | |
| 35 | 8009915 | GASKET GASKET | 2 | |
| 36 | 8110485 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 37 | 8010397 | SPACING BAR SPACING BAR | 1 | |
| 38 | 17765093 | CLIP CLIP | 1 | |
| 39 | 17765193 | CLIP CLIP | 1 | |
| 40 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 1 |
