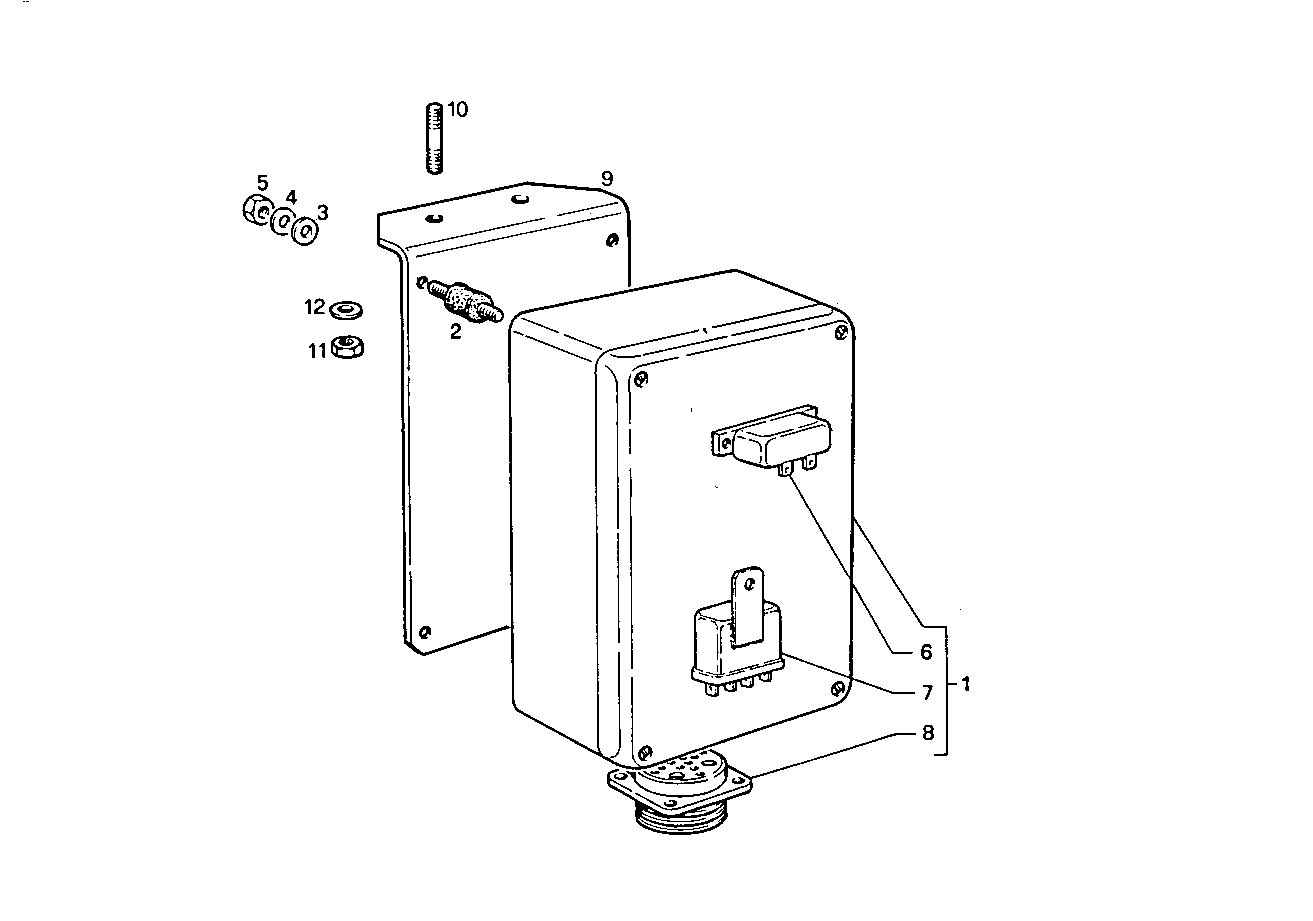

ELECTRIC STOP ENGINE
8460M15.12 — 8460M15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8006413 | ENGINE STOP ENGINE STOP | 1 | |
| 2 | 8018462 | RUBBER PAD RUBBER PAD | 4 | |
| 3 | 17094504 | WASHER WASHER | 4 | |
| 4 | 17708674 | WASHER WASHER | 4 | |
| 5 | 17037721 | NUT NUT | 4 | |
| 6 | 8109519 | RELAY RELAY | 1 | |
| 7 | 8108575 | RELAY RELAY | 1 | |
| 8 | 8113170 | CONNECTION CONNECTION | 1 | |
| 9 | 8008801 | SUPPORT SUPPORT | 1 | |
| 10 | 16729224 | STUD STUD | 2 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 12 | 17089471 | SPRING WASHER SPRING WASHER | 2 |
