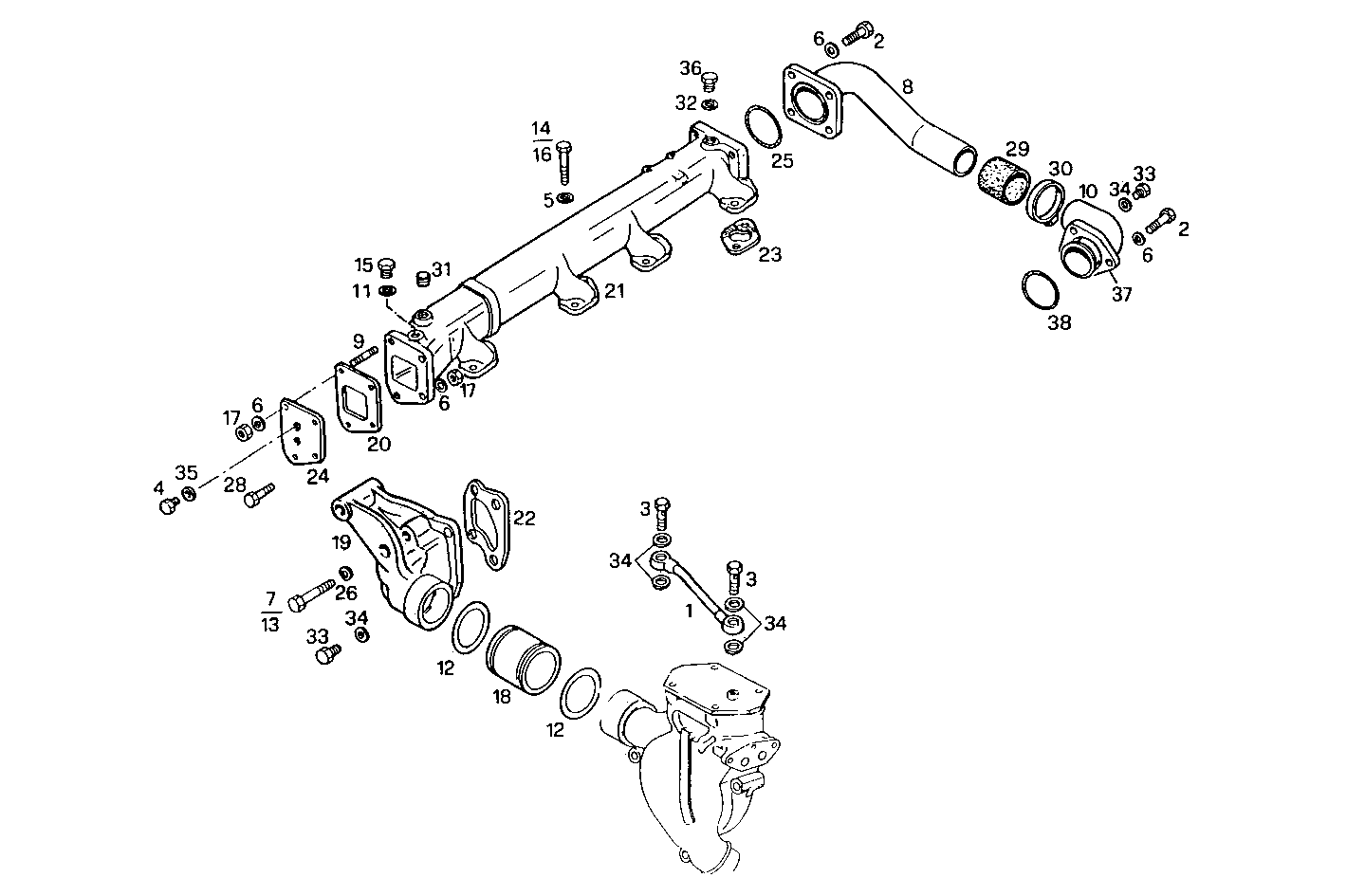

WATER LINES
8460M15.12 — 8460M15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014915 | WATER PIPE WATER PIPE | 1 | |
| 2 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 10 | |
| 3 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 4 | 16992311 | LOCK PLUG LOCK PLUG | 1 | |
| 5 | 17089574 | WASHER WASHER | 8 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 11 | |
| 7 | 11306924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 8 | 8007781 | WATER PIPE WATER PIPE | 1 | |
| 9 | 16746624 | STUD STUD | 3 | |
| 10 | 8110655 | WATER PIPE WATER PIPE | 1 | |
| 11 | 4858607 | WASHER WASHER | 1 | |
| 12 | 17296081 | O-RING O-RING | 2 | |
| 13 | 15971324 | SCREW SCREW | 2 | |
| 14 | 16606324 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 16 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 18 | 61317101 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 19 | 8014862 | WATER PIPE WATER PIPE | 1 | |
| 20 | 61318822 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 21 | 61315629 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 22 | 61318820 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 23 | 61319050 | FLAT ENGINE GKT FLAT ENGINE GKT | 4 | |
| 24 | 8017510 | COVER COVER | 1 | |
| 25 | 17290281 | O-RING O-RING | 1 | |
| 28 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 29 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 30 | 17765093 | CLIP CLIP | 2 | |
| 31 | 16994950 | PLUG PLUG | 1 | |
| 32 | 4858609 | WASHER WASHER | 1 | |
| 33 | 11903140 | PLUG PLUG | 2 | |
| 34 | 4858606 | GASKET GASKET | 6 | |
| 35 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 36 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 37 | 8110656 | FLANGE FLANGE | 1 | |
| 38 | 17290081 | O-RING O-RING | 1 |
