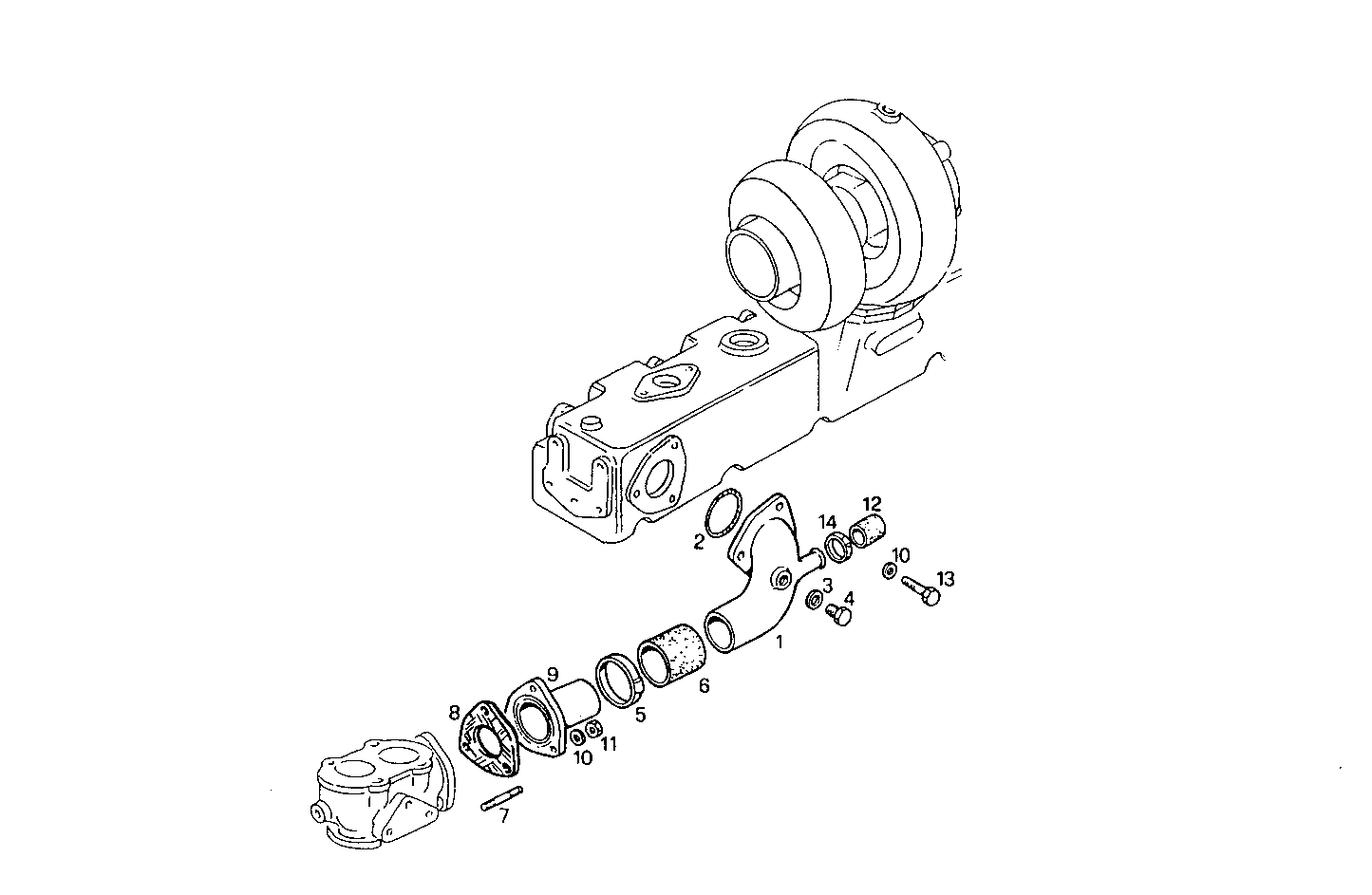

WATER LINES
8460M15.12 — 8460M15
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8007802 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17290281 | O-RING O-RING | 1 | |
| 3 | 4858609 | WASHER WASHER | 1 | |
| 4 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 5 | 17765093 | CLIP CLIP | 2 | |
| 6 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 7 | 16746624 | STUD STUD | 3 | |
| 8 | 4862977 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 9 | 8007801 | WATER PIPE WATER PIPE | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 12 | 4695740 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 14 | 17764793 | CLIP CLIP | 1 |
