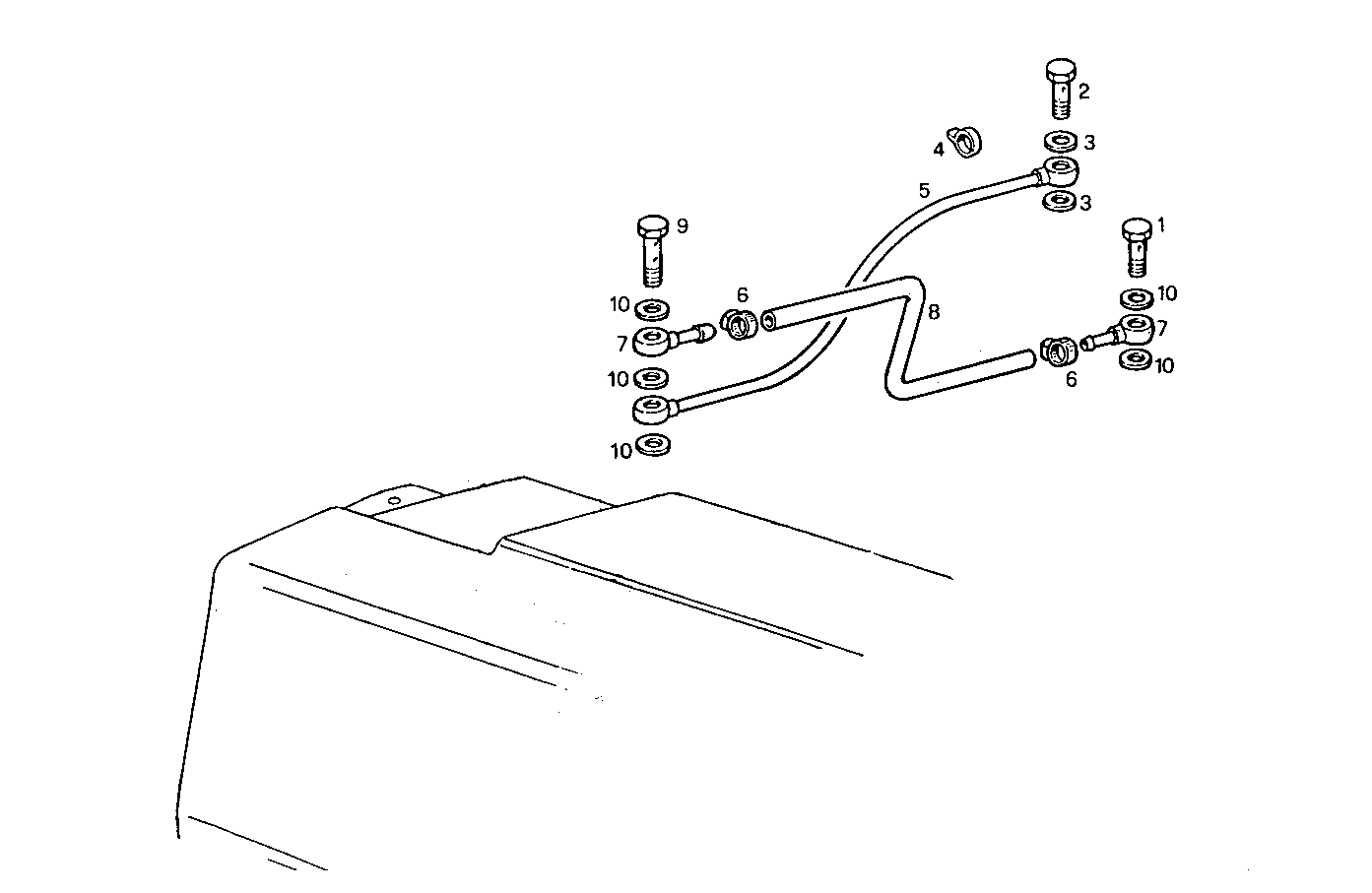

WATER LINES
8460SM19.12 — 8460SM19
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 2 | 4930504 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 3 | 4858606 | GASKET GASKET | 2 | |
| 4 | 4656139 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 5 | 8006945 | WATER PIPE WATER PIPE | 1 | |
| 6 | 18088392 | CLIP CLIP | 2 | |
| 7 | 98434018 | THREADED UNION THREADED UNION | 2 | |
| 8 | 98421396 | WATER HOSE WATER HOSE | 1 | |
| 9 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 10 | 4858607 | WASHER WASHER | 5 |
