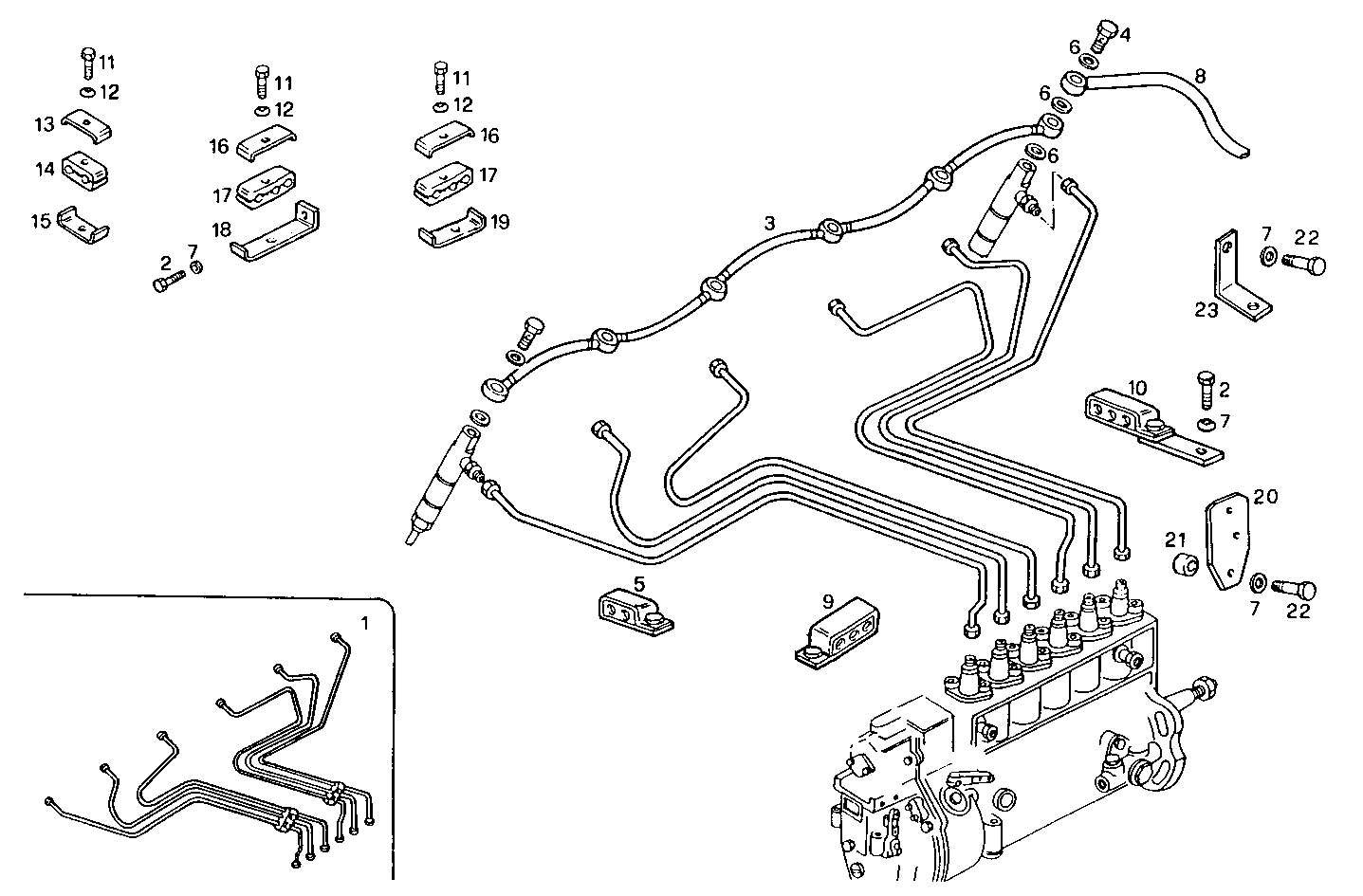

INJECTION PIPES
8460SM22.12 — 8460SM22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4835939 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 16043324 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 61317897 | FUEL LINE FUEL LINE | 1 | |
| 4 | 61316009 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 5 | 4806611 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 6 | 4858605 | WASHER WASHER | 3 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 8 | 8010728 | FUEL LINE FUEL LINE | 1 | |
| 9 | 4806612 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 10 | 4850694 | RETAINER RETAINER | 2 | |
| 11 | 10978021 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 12 | 17494631 | SPRING WASHER SPRING WASHER | 5 | |
| 13 | 4641873 | RETAINER RETAINER | 1 | |
| 14 | 61585735 | RUBBER PAD RUBBER PAD | 1 | |
| 15 | 4641874 | RETAINER RETAINER | 1 | |
| 16 | 4641875 | CLIP CLIP | 4 | |
| 17 | 4543282 | CHOCK CHOCK | 4 | |
| 18 | 61316178 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 19 | 4641876 | CLIP CLIP | 2 | |
| 20 | 61315626 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 21 | 13605711 | SPACER SPACER | 1 | |
| 22 | 16043521 | SCREW SCREW | 5 | |
| 23 | 61318425 | RETAINER RETAINER | 1 |
