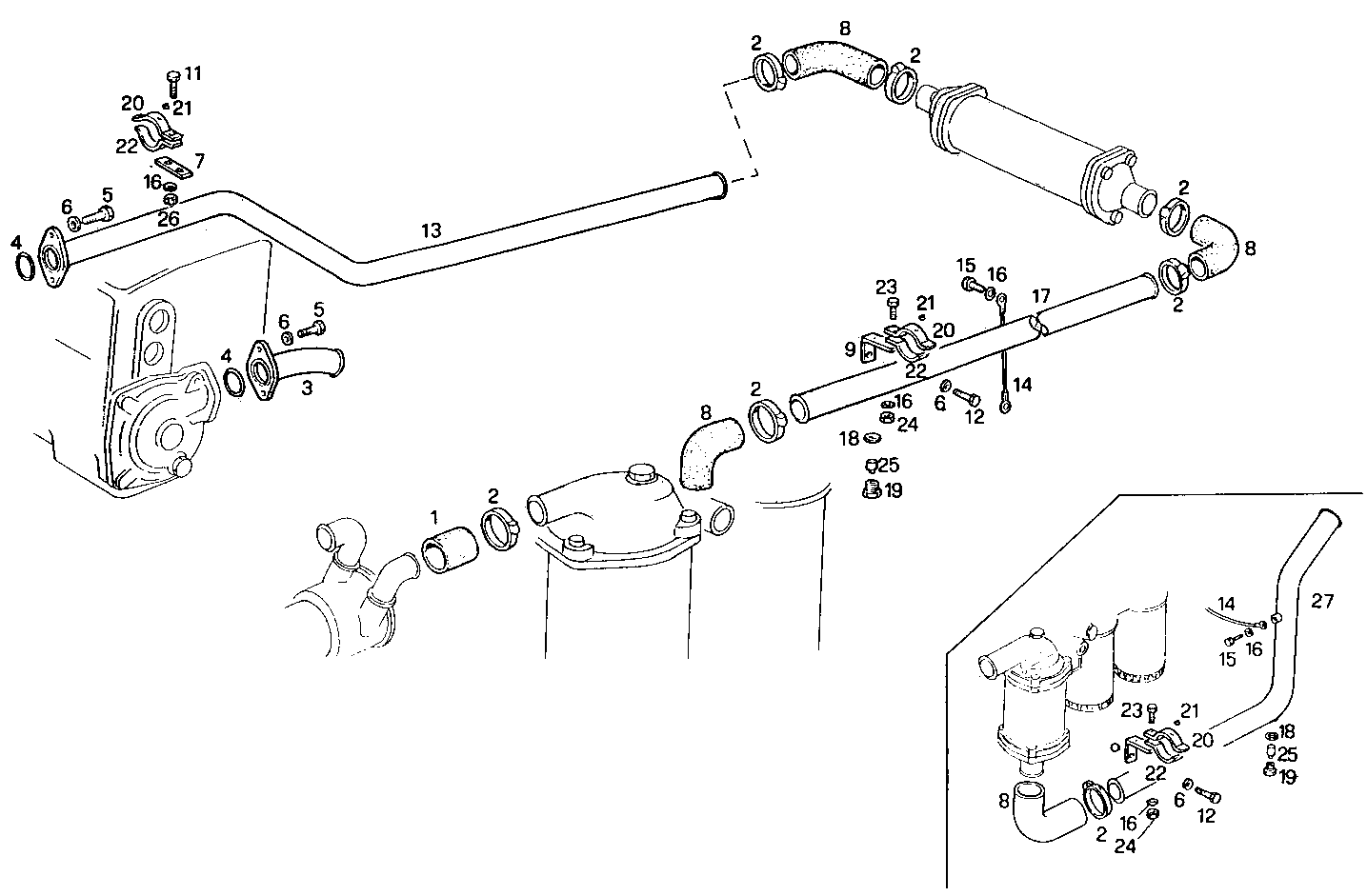

SEA WATER LINES
8460SM22.12 — 8460SM22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4765112 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 2 | 17764993 | CLIP CLIP | 8 | |
| 3 | 8009636 | WATER PIPE WATER PIPE | 1 | |
| 4 | 17289981 | O-RING O-RING | 2 | |
| 5 | 11112221 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 6 | 17091071 | SPRING WASHER SPRING WASHER | 5 | |
| 7 | 8103806 | RETAINER RETAINER | 1 | |
| 8 | 8009940 | RUBBER SLEEVE RUBBER SLEEVE | 3 | |
| 9 | 8007981 | RETAINER RETAINER | 1 | |
| 11 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 15540221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 8014628 | WATER PIPE WATER PIPE | 1 | |
| 14 | 8113786 | ENGINE HARNESS ENGINE HARNESS | 2 | |
| 15 | 16043021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 16 | 17089471 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 8020051 | WATER PIPE WATER PIPE | 1 | |
| 18 | 4858610 | WASHER WASHER | 1 | |
| 19 | 4917793 | PLUG PLUG | 1 | |
| 20 | 8113296 | CLAMP CLAMP | 2 | |
| 21 | 1366290 | RUBBER PAD RUBBER PAD | 8 | |
| 22 | 8113295 | CLAMP CLAMP | 2 | |
| 23 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 24 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 25 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 26 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 27 | 8017446 | WATER PIPE WATER PIPE | 1 |
