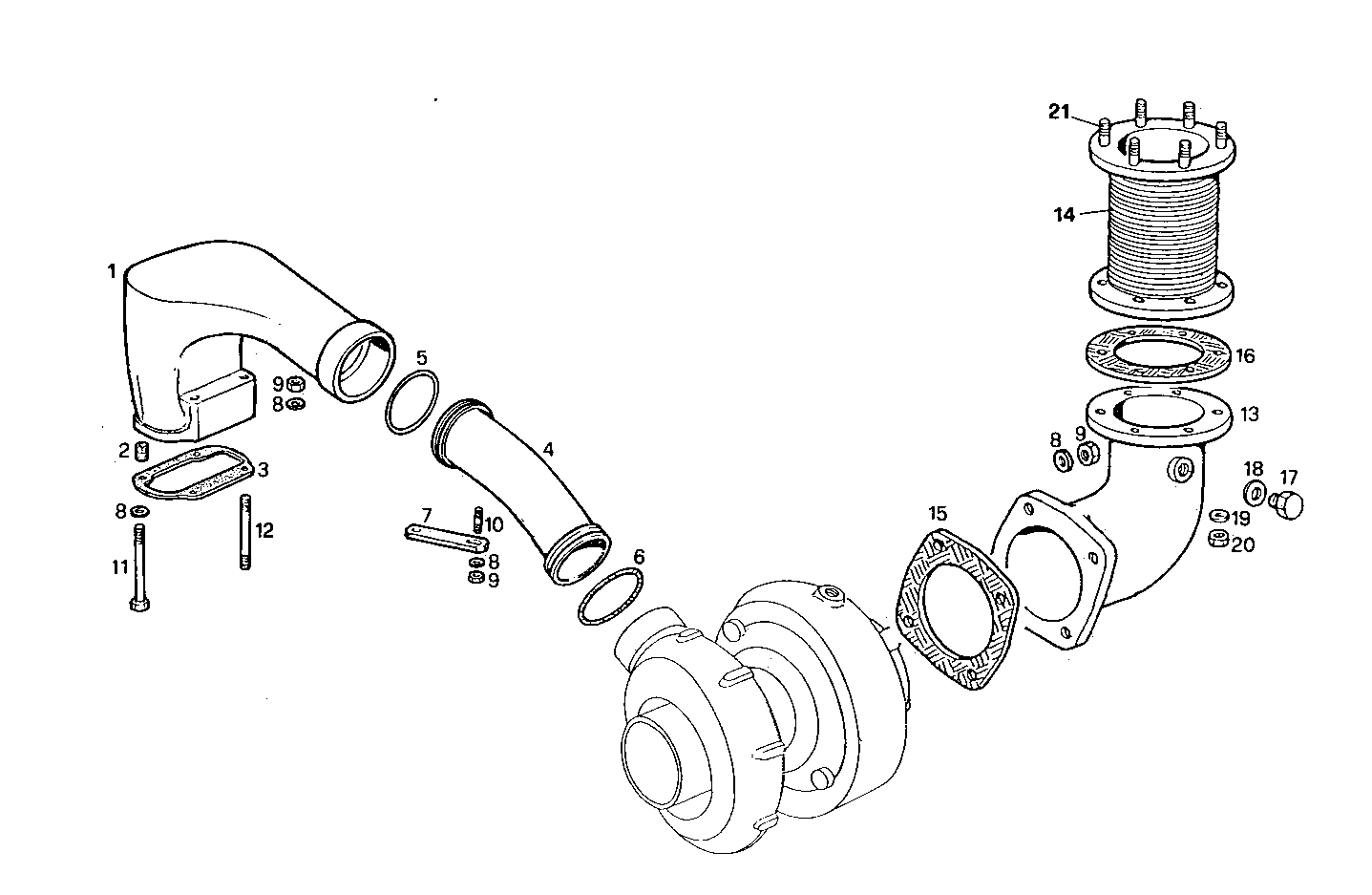

SUPERCHARGING LINES
8460SM22.12 — 8460SM22
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8014542 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 2 | 17873271 | THREADED INSERT THREADED INSERT | 2 | |
| 3 | 61318565 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 8014437 | AIR MANIFOLD AIR MANIFOLD | 1 | |
| 5 | 17290581 | O-RING O-RING | 1 | |
| 6 | 17296181 | O-RING O-RING | 1 | |
| 7 | 8006782 | RETAINER RETAINER | 1 | |
| 8 | 17089474 | SPRING WASHER SPRING WASHER | 10 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 10 | 16729224 | STUD STUD | 2 | |
| 11 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 16747424 | STUD STUD | 2 | |
| 13 | 8013472 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 14 | 8101671 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 15 | 8111833 | GASKET GASKET | 1 | |
| 16 | 8009600 | GASKET GASKET | 1 | |
| 17 | 16992240 | THREADED PLUG THREADED PLUG | 4 | |
| 18 | 4858607 | WASHER WASHER | 1 | |
| 19 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 20 | 17038121 | HEXAGON NUT HEXAGON NUT | 6 | |
| 21 | 13449524 | STUD STUD | 12 |
