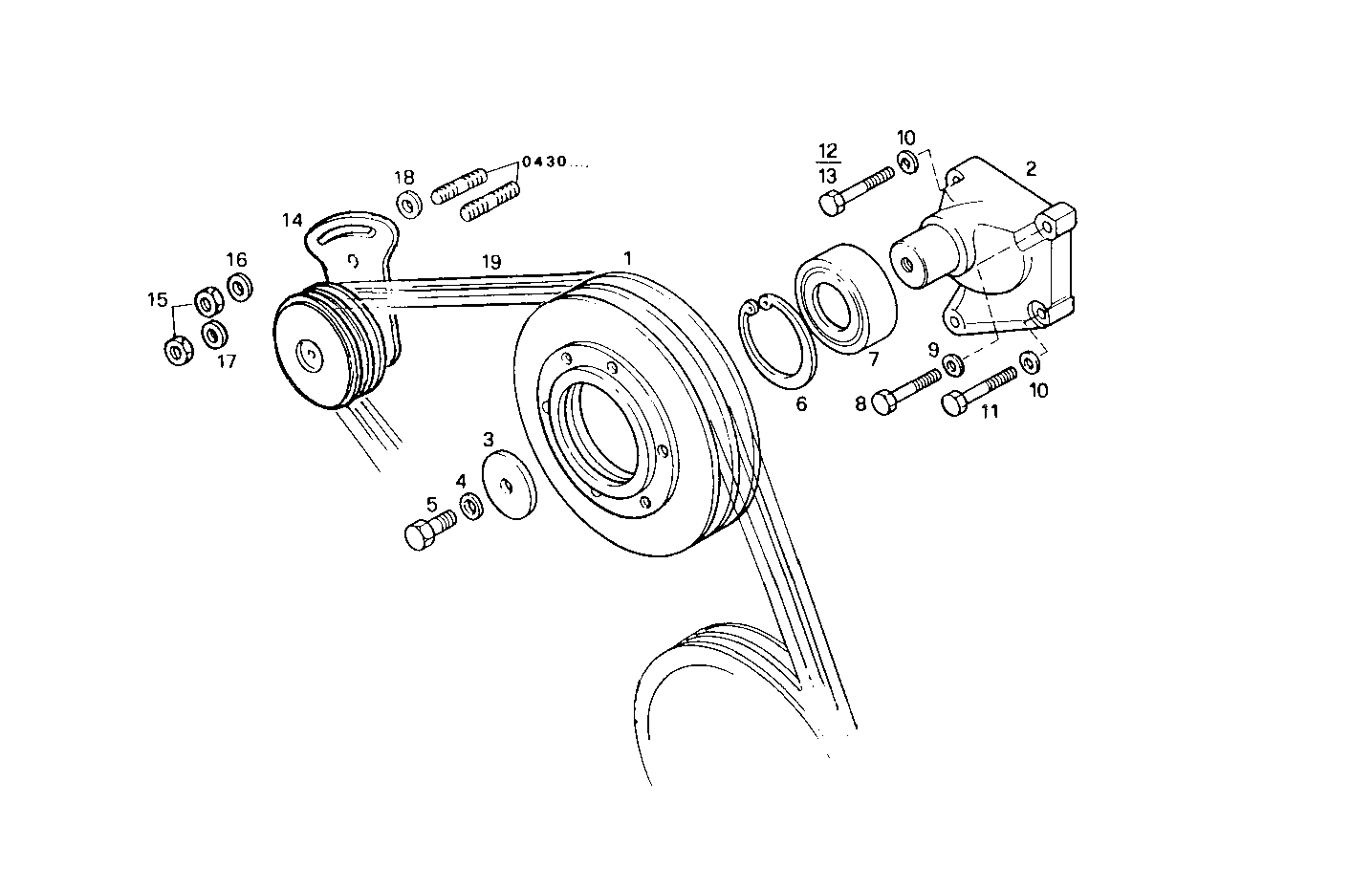

PULLEYS AND BELTS
8460SRC20.10 — 8460SRC20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 61320114 | PULLEY PULLEY | 1 | |
| 2 | 61320115 | SUPPORT SUPPORT | 1 | |
| 3 | 98427590 | WASHER WASHER | 1 | |
| 4 | 17091174 | SPRING WASHER SPRING WASHER | 1 | |
| 5 | 15540421 | SCREW SCREW | 1 | |
| 6 | 16874776 | CIRCLIP CIRCLIP | 1 | |
| 7 | 98427607 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 8 | 15972221 | SCREW SCREW | 1 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 11 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 16607024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 16045824 | SCREW SCREW | 2 | |
| 14 | 61320324 | BELT TENSIONER BELT TENSIONER | 1 | |
| 15 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 16 | 17090274 | WASHER WASHER | 1 | |
| 17 | 11198474 | SPRING WASHER SPRING WASHER | 1 | |
| 18 | 61320640 | SPACING BAR SPACING BAR | 1 | |
| 19 | 99439812 | SET OF V-BELTS SET OF V-BELTS | 1 |
