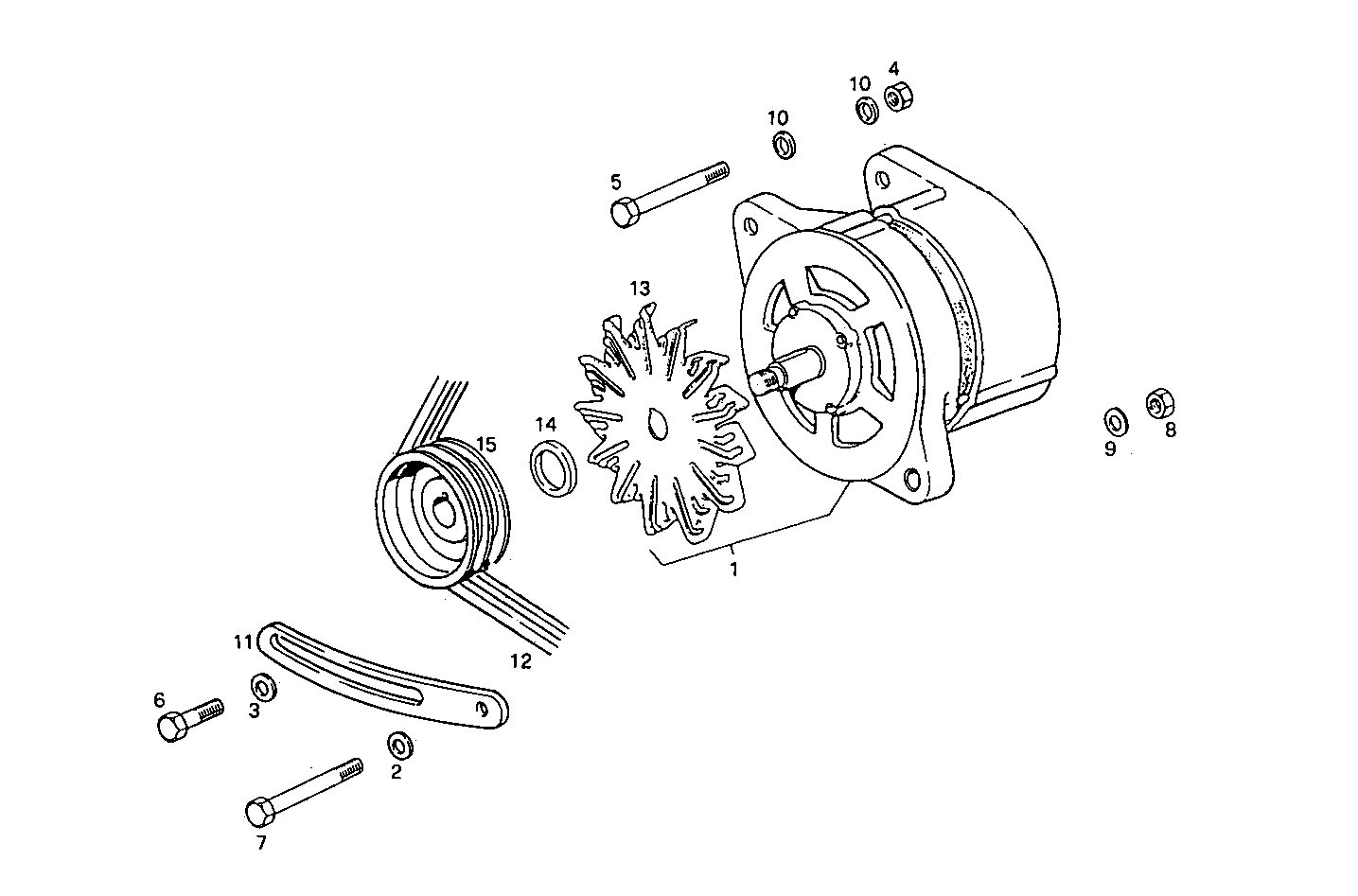

GENERATOR
8460SRC21.10 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99461190 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 11194074 | WASHER WASHER | 1 | |
| 3 | 12626321 | WASHER WASHER | 1 | |
| 4 | 13680121 | NUT NUT | 1 | |
| 5 | 15541821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 6 | 15970924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 7 | 16607024 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 11198374 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 17095304 | WASHER WASHER | 2 | |
| 11 | 61318409 | BELT TENSIONER BELT TENSIONER | 1 | |
| 12 | 61318427 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 13 | 4757196 | GENERATOR FAN GENERATOR FAN | 1 | |
| 14 | 98454596 | SPACING BAR SPACING BAR | 1 | |
| 15 | 98454696 | GENERATOR PULLEY GENERATOR PULLEY | 1 |
