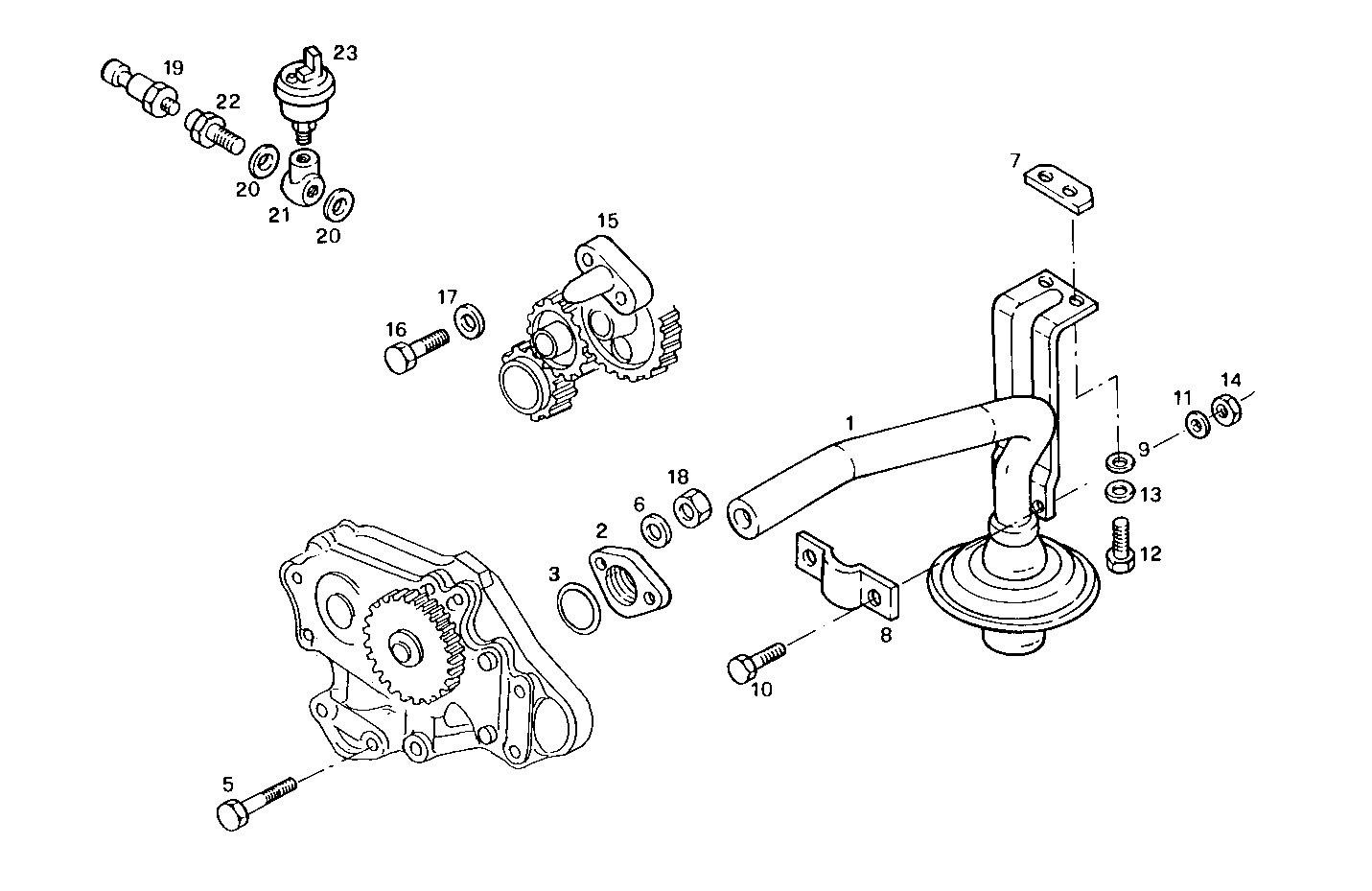

LUBE OIL LINES
8460SRC21.10 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 61321303 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 2 | 61317784 | FLANGE FLANGE | 1 | |
| 3 | 17282381 | O-RING O-RING | 1 | |
| 5 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 6 | 11194074 | WASHER WASHER | 2 | |
| 7 | 61321574 | SPACING BAR SPACING BAR | 1 | |
| 8 | 61317877 | PIPE CLIP PIPE CLIP | 1 | |
| 9 | 61321278 | WASHER WASHER | 2 | |
| 10 | 16043524 | SCREW SCREW | 2 | |
| 11 | 17094914 | WASHER WASHER | 2 | |
| 12 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 11193874 | WASHER WASHER | 2 | |
| 14 | 13680011 | NUT NUT | 2 | |
| 15 | 61586093 | OIL NOZZLE OIL NOZZLE | 1 | |
| 16 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 17799374 | SPRING WASHER SPRING WASHER | 2 | |
| 18 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 19 | 98442879 | PRESSURE SWITCH PRESSURE SWITCH | 1 | |
| 20 | 98474308 | SEAL GASKET SEAL GASKET | 2 | |
| 21 | 61319226 | BANJO COUPLING BANJO COUPLING | 1 | |
| 22 | 61319225 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 23 | 99484667 | TRANSMITTER TRANSMITTER | 1 |
