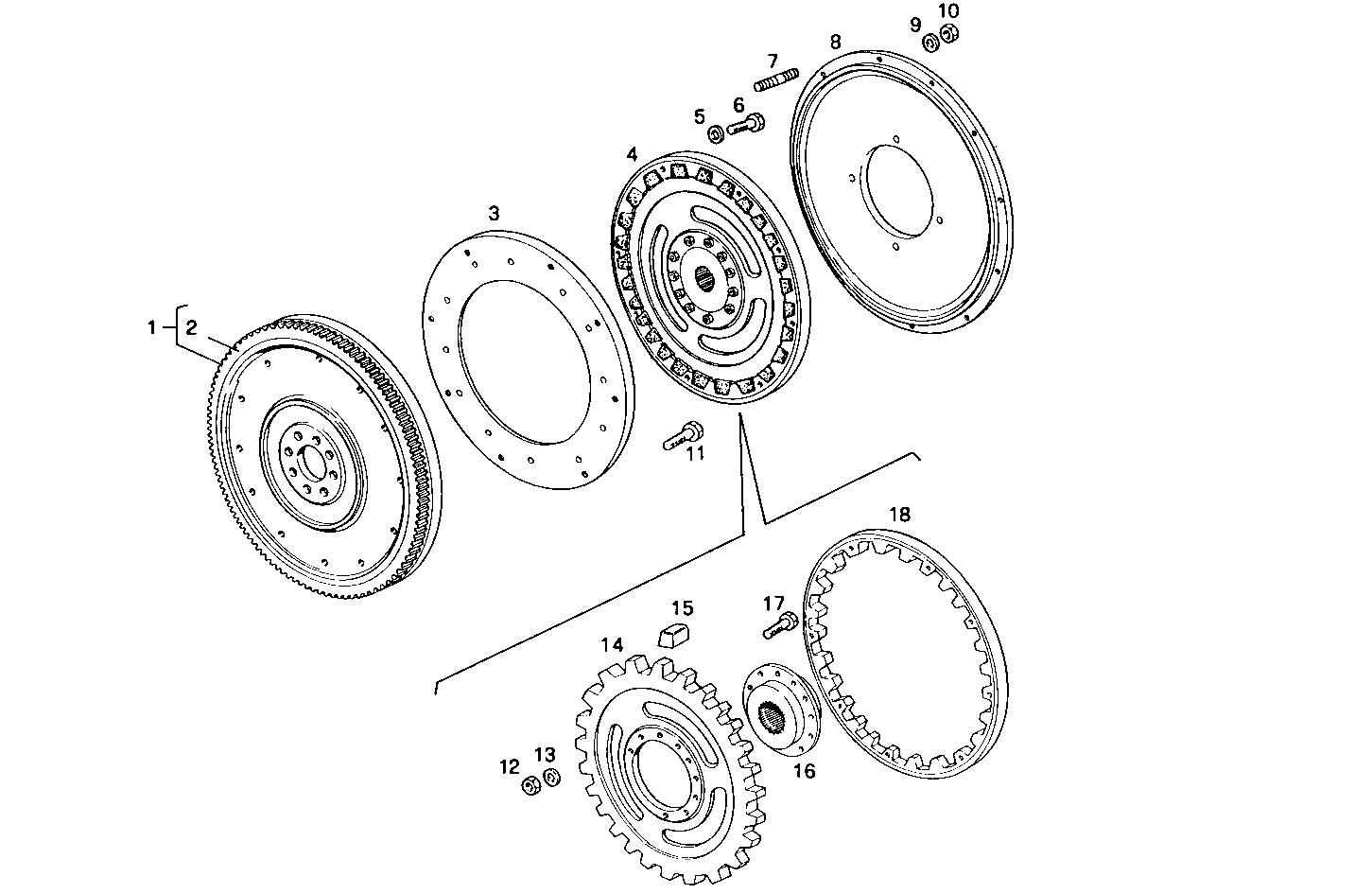

FLYWHEEL ARRANGED FOR TRANSMISSION
8460SRC21.20 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8031290 | FLYWHEEL FLYWHEEL | 1 | |
| 2 | 4672334 | RING GEAR RING GEAR | 1 | |
| 3 | 8105258 | FLANGE FLANGE | 1 | |
| 4 | 8023890 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 5 | 17095314 | WASHER WASHER | 8 | |
| 6 | 15541221 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 7 | 17368024 | STUD STUD | 12 | |
| 8 | 8023889 | FLANGE FLANGE | 1 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 11 | 16326424 | SCREW SCREW | 12 | |
| 12 | 17038421 | HEXAGON NUT HEXAGON NUT | 12 | |
| 13 | 17095314 | WASHER WASHER | 12 | |
| 14 | 8023499 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 15 | 4932462 | DOWEL DOWEL | 28 | |
| 16 | 8023891 | HUB HUB | 1 | |
| 17 | 16610024 | SCREW SCREW | 12 | |
| 18 | 8023498 | RING RING | 1 |
