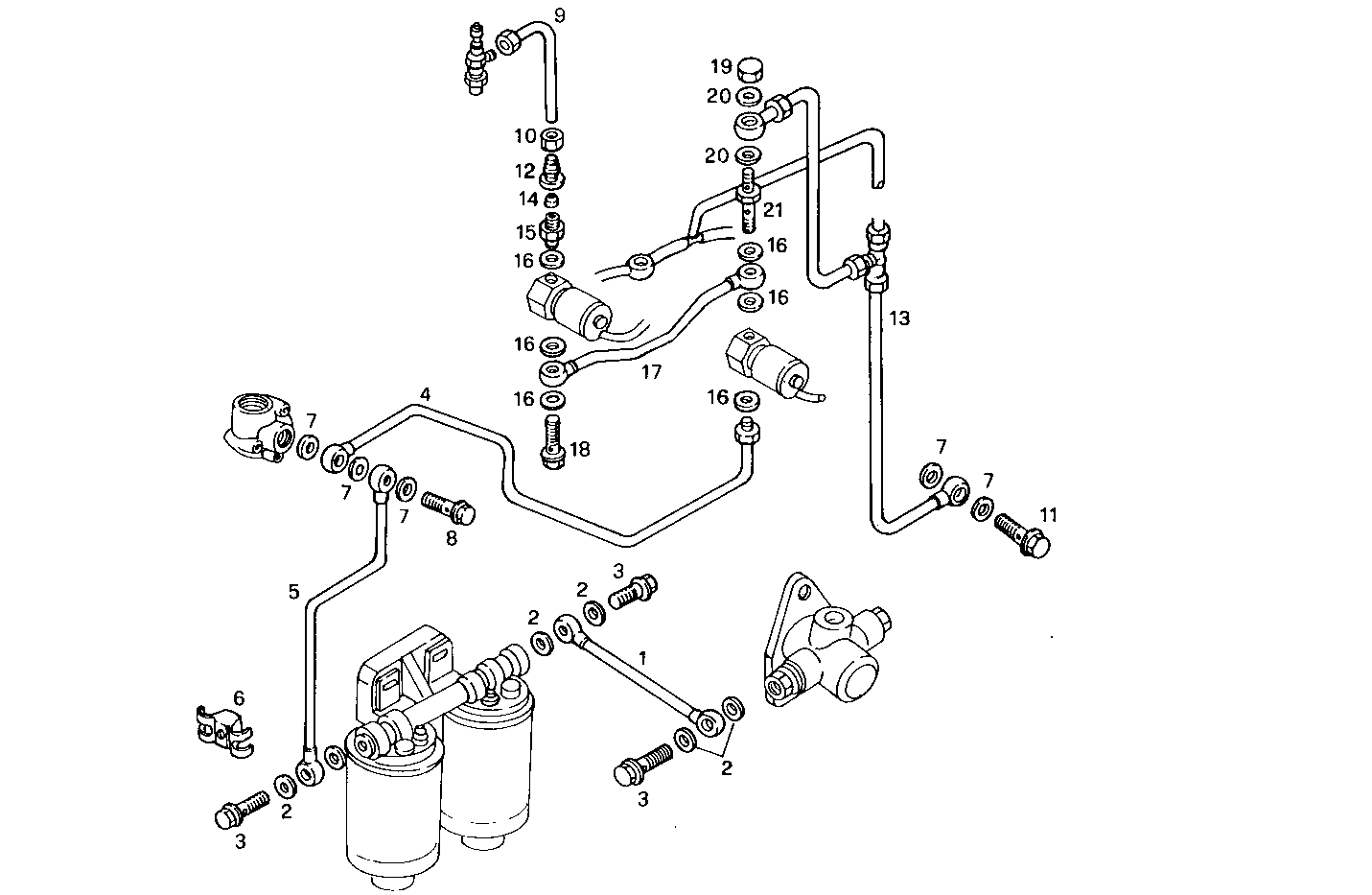

FUEL LINES
8460SRC21.20A001 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 61320154 | FUEL LINE FUEL LINE | 1 | |
| 2 | 98474308 | SEAL GASKET SEAL GASKET | 6 | |
| 3 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 4 | 61321657 | FUEL LINE FUEL LINE | 1 | |
| 5 | 61320155 | FUEL LINE FUEL LINE | 1 | |
| 6 | 4863368 | SPRING CLAMP SPRING CLAMP | 2 | |
| 7 | 4858608 | SEAL GASKET SEAL GASKET | 5 | |
| 8 | 61320123 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 61321660 | FUEL LINE FUEL LINE | 1 | |
| 10 | 16506611 | UNION NUT UNION NUT | 1 | |
| 11 | 10184314 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 12 | 16512240 | BUSH BUSH | 1 | |
| 13 | 61321653 | FUEL LINE FUEL LINE | 1 | |
| 14 | 16509940 | CLAMPING WASHER CLAMPING WASHER | 1 | |
| 15 | 500302990 | THREADED UNION THREADED UNION | 1 | |
| 16 | 98474305 | WASHER WASHER | 6 | |
| 17 | 61321661 | FUEL LINE FUEL LINE | 1 | |
| 18 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 19 | 98469675 | THREADED PLUG THREADED PLUG | 1 | |
| 20 | 98474306 | WASHER WASHER | 2 | |
| 21 | 98469450 | BYPASS VALVE BYPASS VALVE | 1 |
