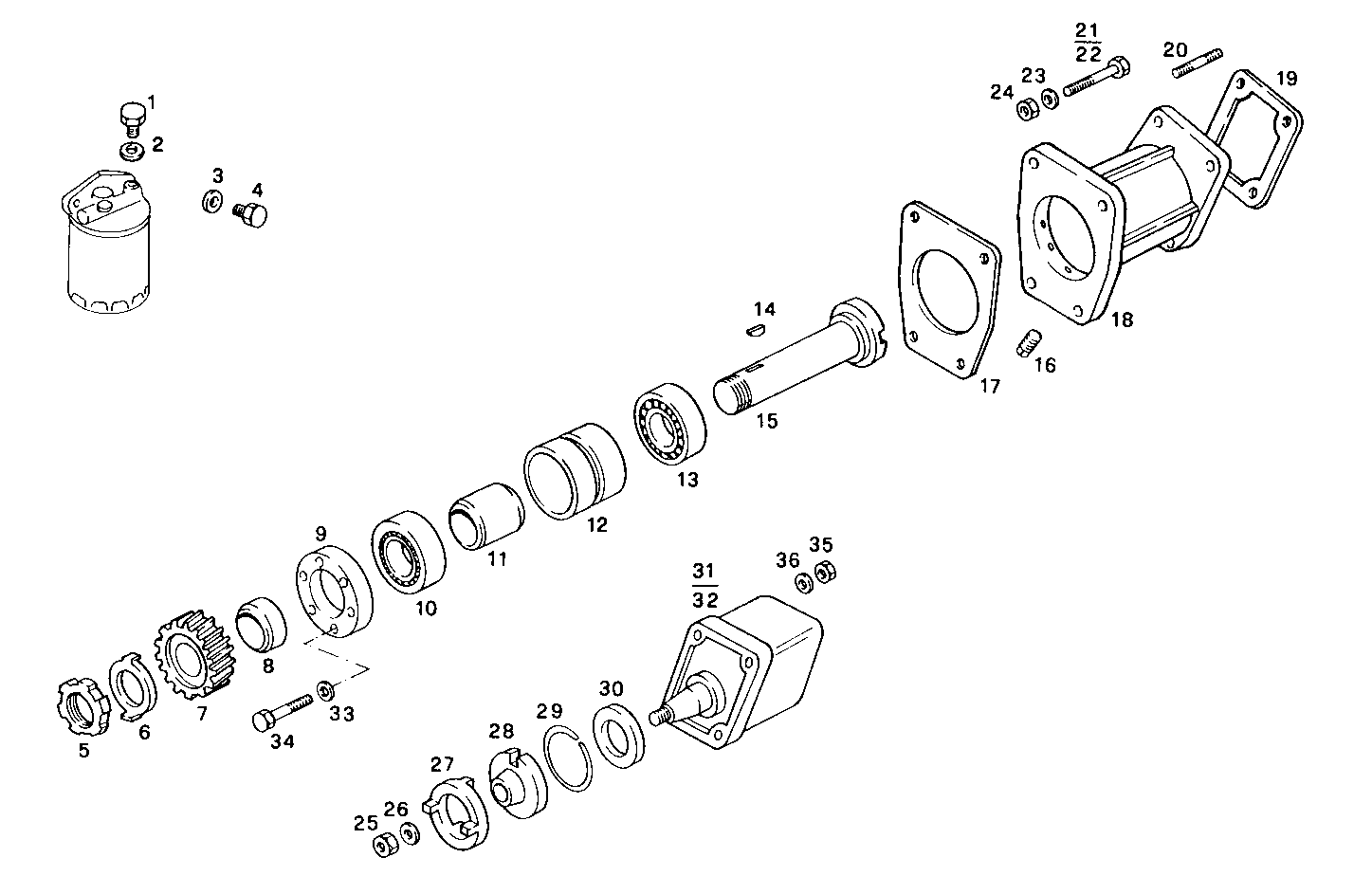

LEFT FRONT HYDRAULIC PUMP
8460SRC21.20A001 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4595833 | THREADED PLUG THREADED PLUG | 1 | |
| 2 | 98429280 | SEAL GASKET SEAL GASKET | 1 | |
| 3 | 4858610 | WASHER WASHER | 1 | |
| 4 | 16992511 | THREADED PLUG THREADED PLUG | 1 | |
| 5 | 17324310 | FASTENING RING FASTENING RING | 1 | |
| 6 | 4513025 | LOCKING PLATE LOCKING PLATE | 1 | |
| 7 | 8026292 | GEAR GEAR | 1 | |
| 8 | 61586413 | SPACING BAR SPACING BAR | 1 | |
| 9 | 61586412 | COVER COVER | 1 | |
| 10 | 26798470 | DRIVE BEARING DRIVE BEARING | 1 | |
| 11 | 61586410 | SPACING BAR SPACING BAR | 1 | |
| 12 | 61586411 | SPACING BAR SPACING BAR | 1 | |
| 13 | 20705250 | DRIVE BEARING DRIVE BEARING | 1 | |
| 14 | 17221220 | KEY KEY | 1 | |
| 15 | 61586409 | SHAFT SHAFT | 1 | |
| 16 | 16996011 | PLUG PLUG | 1 | |
| 17 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 18 | 8026822 | SUPPORT SUPPORT | 1 | |
| 19 | 4863974 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 20 | 17364824 | STUD STUD | 4 | |
| 21 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 22 | 15972021 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 23 | 17090174 | SPRING WASHER SPRING WASHER | 4 | |
| 24 | 17038221 | HEXAGON NUT HEXAGON NUT | 3 | |
| 25 | 8273919 | NUT NUT | 1 | |
| 26 | 8273920 | WASHER WASHER | 1 | |
| 27 | 4526899 | RING RING | 1 | |
| 28 | 4547495 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 29 | 4526900 | CIRCLIP CIRCLIP | 1 | |
| 30 | 4543246 | CENTERING RING CENTERING RING | 1 | |
| 31 | 5169772 | HYDRAULIC PUMP HYDRAULIC PUMP | 1 | |
| 32 | 5179719 | HYDRAULIC PUMP HYDRAULIC PUMP | 1 | |
| 33 | 17088474 | WASHER WASHER | 6 | |
| 34 | 16689224 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 6 | |
| 35 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 36 | 17088474 | WASHER WASHER | 4 |
