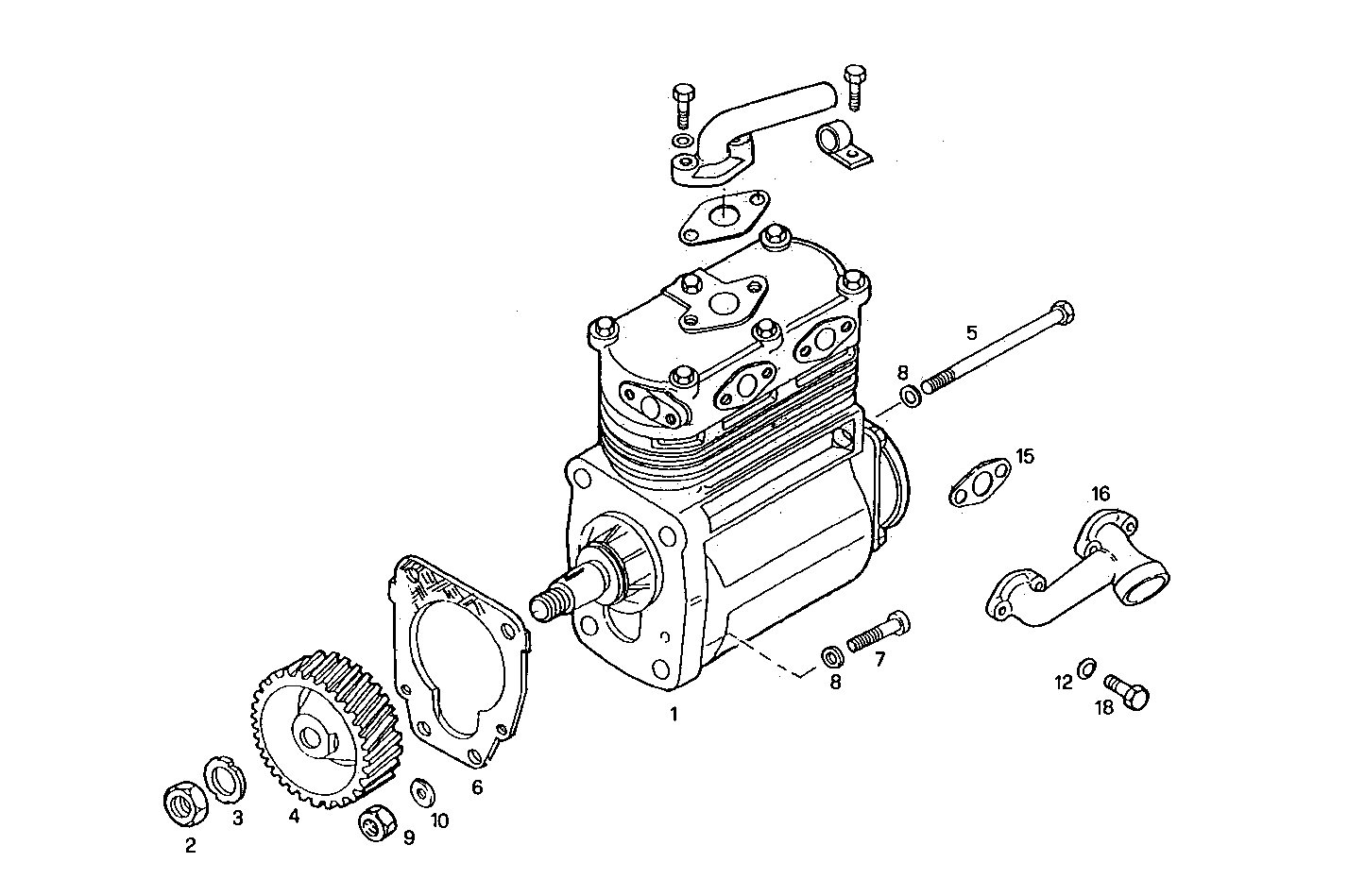

AIR COMPRESSOR
8460SRC21.20A002 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99440238 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 3 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 4 | 61316311 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 5 | 15972124 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 6 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 7 | 14308224 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 8 | 17090274 | WASHER WASHER | 4 | |
| 9 | 17038221 | HEXAGON NUT HEXAGON NUT | 3 | |
| 10 | 17095124 | WASHER WASHER | 3 | |
| 11 | 16603524 | SCREW SCREW | 2 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 13 | 8111464 | WATER PIPE WATER PIPE | 1 | |
| 14 | 4863538 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 4863497 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 16 | 4717885 | CONNECTING PIPE CONNECTING PIPE | 1 | |
| 17 | 16045121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 19 | 4505903 | CLIP CLIP | 1 |
