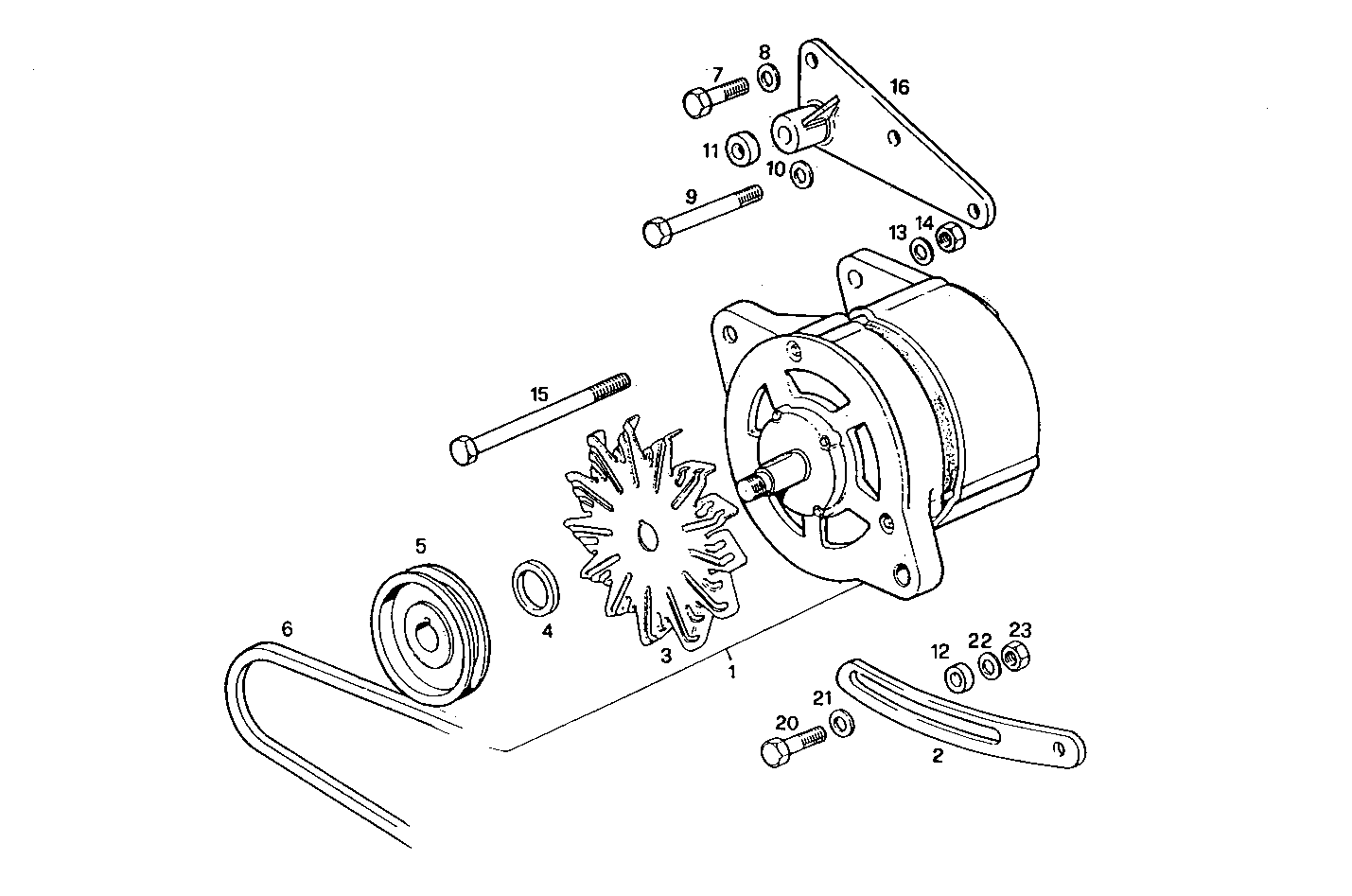

GENERATOR
8460SRC21.20A002 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98424739 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 61318409 | BELT TENSIONER BELT TENSIONER | 1 | |
| 3 | 4757196 | GENERATOR FAN GENERATOR FAN | 1 | |
| 4 | 98454596 | SPACING BAR SPACING BAR | 1 | |
| 5 | 98418920 | GENERATOR PULLEY GENERATOR PULLEY | 1 | |
| 6 | 98459454 | ALTERNATOR BELT ALTERNATOR BELT | 1 | |
| 7 | 11306921 | SCREW SCREW | 1 | |
| 8 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 9 | 16606824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 17094914 | WASHER WASHER | 2 | |
| 11 | 8114378 | SPACING BAR SPACING BAR | 1 | |
| 12 | 4513436 | SUPPORT RING SUPPORT RING | 1 | |
| 13 | 17090274 | WASHER WASHER | 1 | |
| 14 | 13680121 | NUT NUT | 1 | |
| 15 | 15541921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 8018854 | SUPPORT SUPPORT | 1 | |
| 17 | 17097124 | WASHER WASHER | 1 | |
| 18 | 17095114 | WASHER WASHER | 1 | |
| 19 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 1 |
