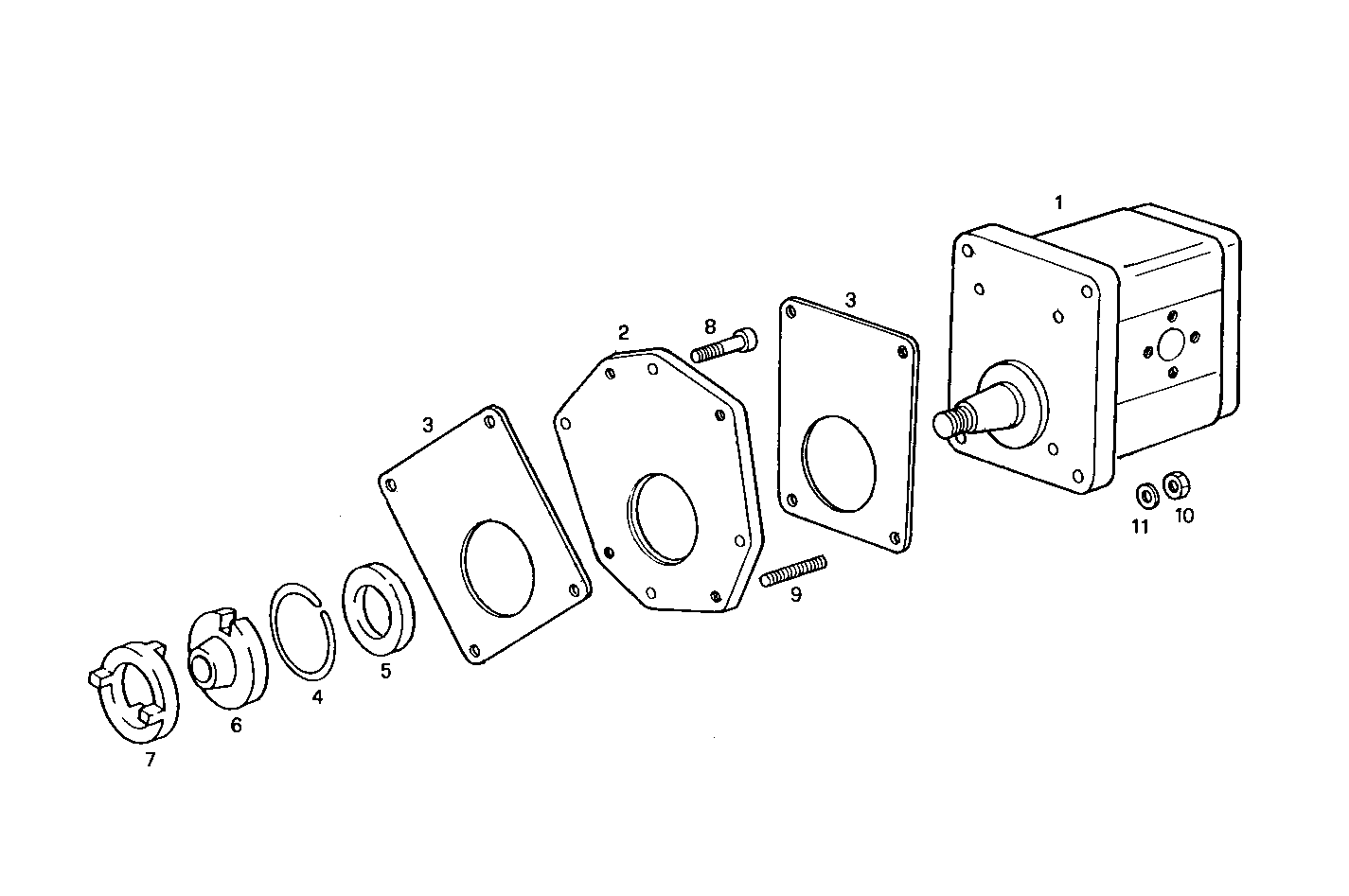

POWER STEERING PUMP
8460SRC21.20A002 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023525 | HYDRAULIC PUMP HYDRAULIC PUMP | 1 | |
| 2 | 8013376 | SUPPORT SUPPORT | 1 | |
| 3 | 4850986 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 4 | 17082776 | SPRING LOCKWASHER SPRING LOCKWASHER | 1 | |
| 5 | 4609538 | CENTERING RING CENTERING RING | 1 | |
| 6 | 4621358 | RING RING | 1 | |
| 7 | 8018856 | COUPLER COUPLER | 1 | |
| 8 | 16689124 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 4 | |
| 9 | 16745224 | STUD STUD | 4 | |
| 10 | 17037821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 17088974 | SPRING WASHER SPRING WASHER | 4 |
