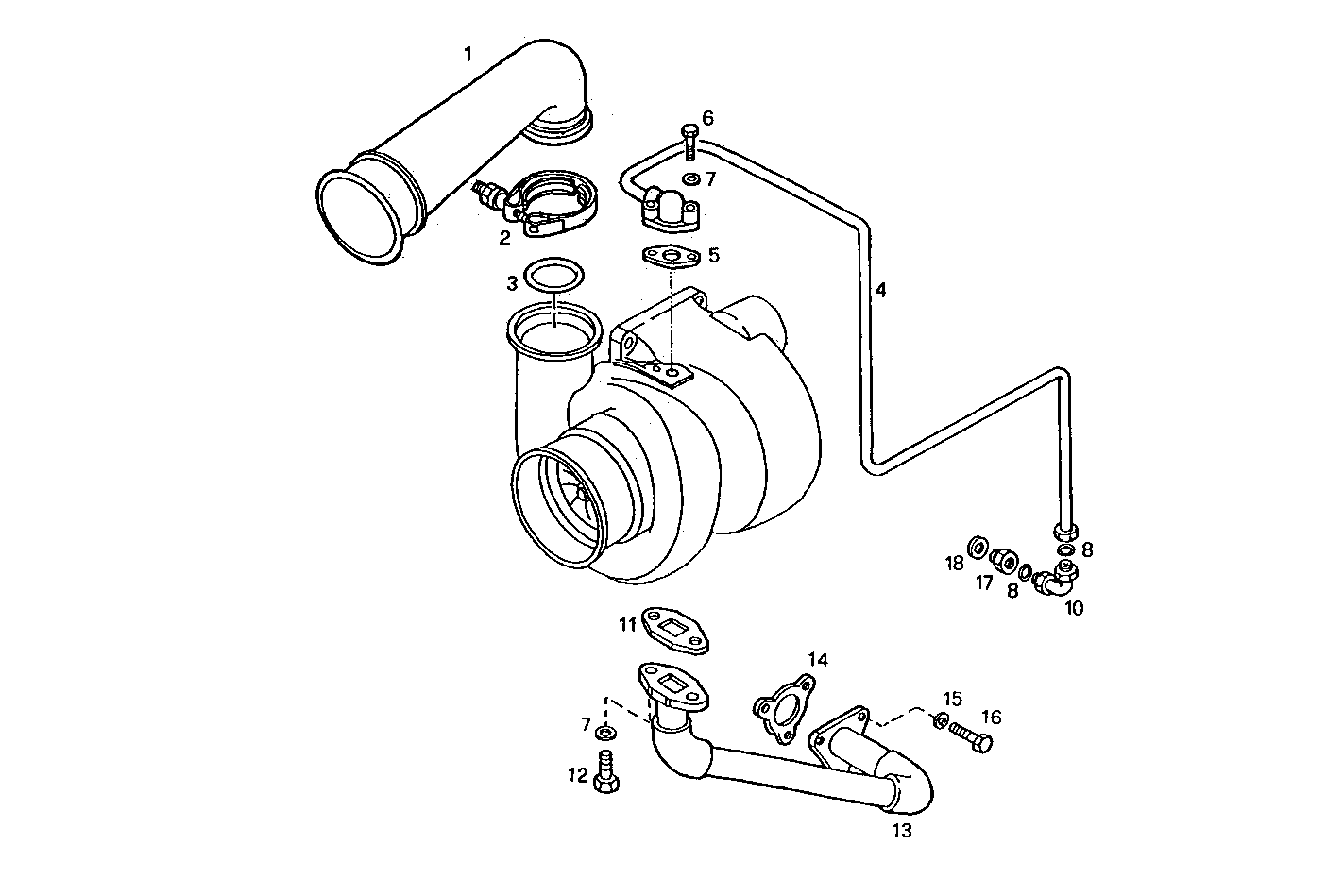

SUPERCHARGING LINES
8460SRC21.20A002 — 8460SRC21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 61318365 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 2 | 4800661 | CLIP CLIP | 1 | |
| 3 | 17284681 | O-RING O-RING | 1 | |
| 4 | 8028368 | OIL LINE OIL LINE | 1 | |
| 5 | 61318303 | GASKET GASKET | 1 | |
| 6 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 8 | 8024647 | GASKET GASKET | 2 | |
| 9 | 98474309 | WASHER WASHER | 3 | |
| 10 | 16504111 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 11 | 98412509 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 12 | 16043524 | SCREW SCREW | 2 | |
| 13 | 61320248 | OIL LINE OIL LINE | 1 | |
| 14 | 61319047 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 11193874 | WASHER WASHER | 3 | |
| 16 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 17 | 16500311 | PIPE SOCKET PIPE SOCKET | 1 | |
| 18 | 4858609 | WASHER WASHER | 1 |
