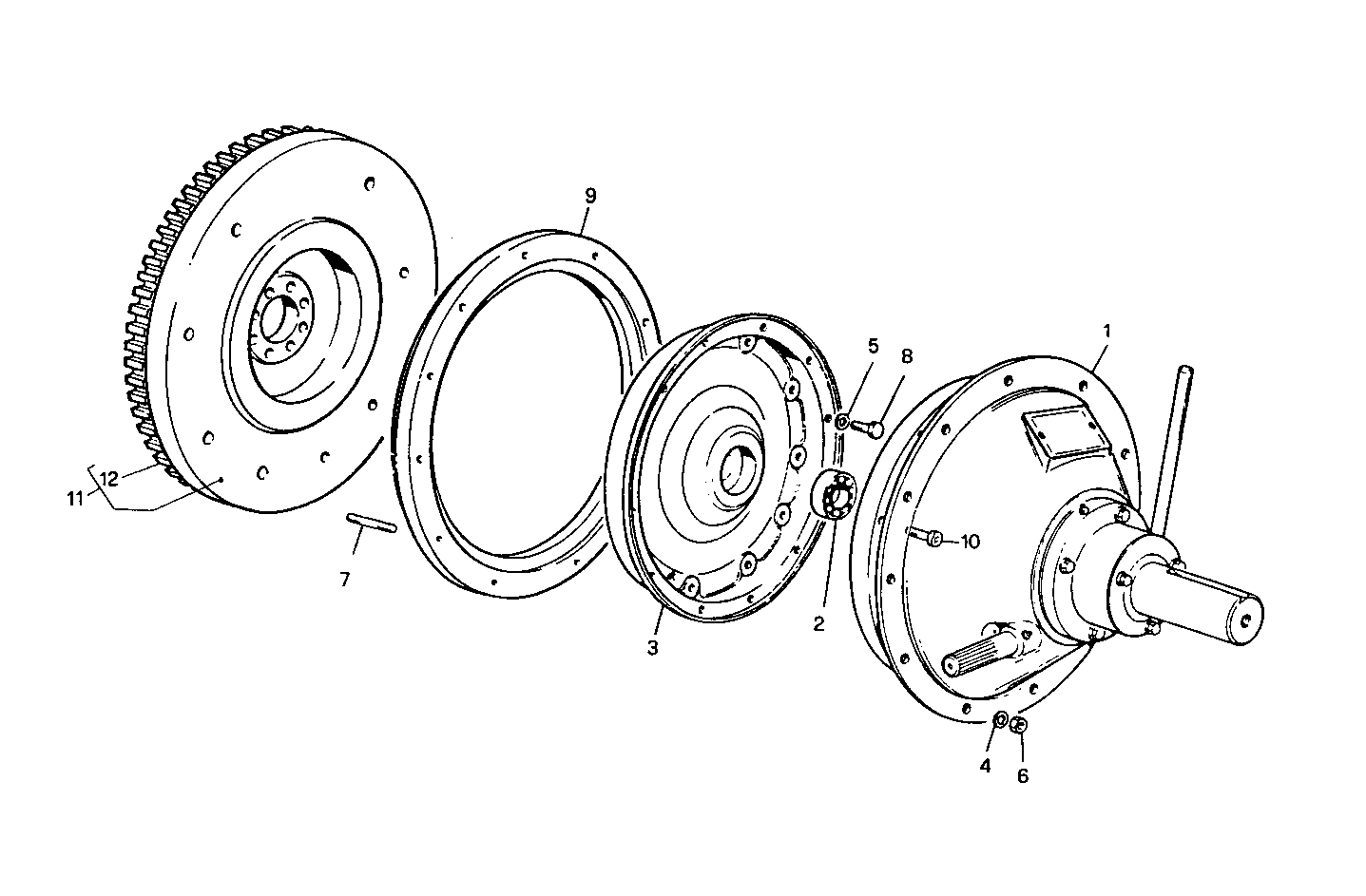

AUTOMOTIVE CLUTCH
8460SRE10.00 — 8460SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8015238 | CLUTCH CLUTCH | 1 | |
| 2 | 4931837 | DRIVE BEARING DRIVE BEARING | 1 | |
| 3 | 4931864 | FLANGE FLANGE | 1 | |
| 4 | 17090274 | WASHER WASHER | 12 | |
| 5 | 17091174 | SPRING WASHER SPRING WASHER | 12 | |
| 6 | 17038221 | HEXAGON NUT HEXAGON NUT | 12 | |
| 7 | 13454521 | STUD STUD | 12 | |
| 8 | 15540621 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 9 | 4931829 | SPACING BAR SPACING BAR | 1 | |
| 10 | 14332521 | SCREW SCREW | 8 | |
| 11 | 8027255 | FLYWHEEL FLYWHEEL | 1 | |
| 12 | 61578844 | RING GEAR RING GEAR | 1 |
