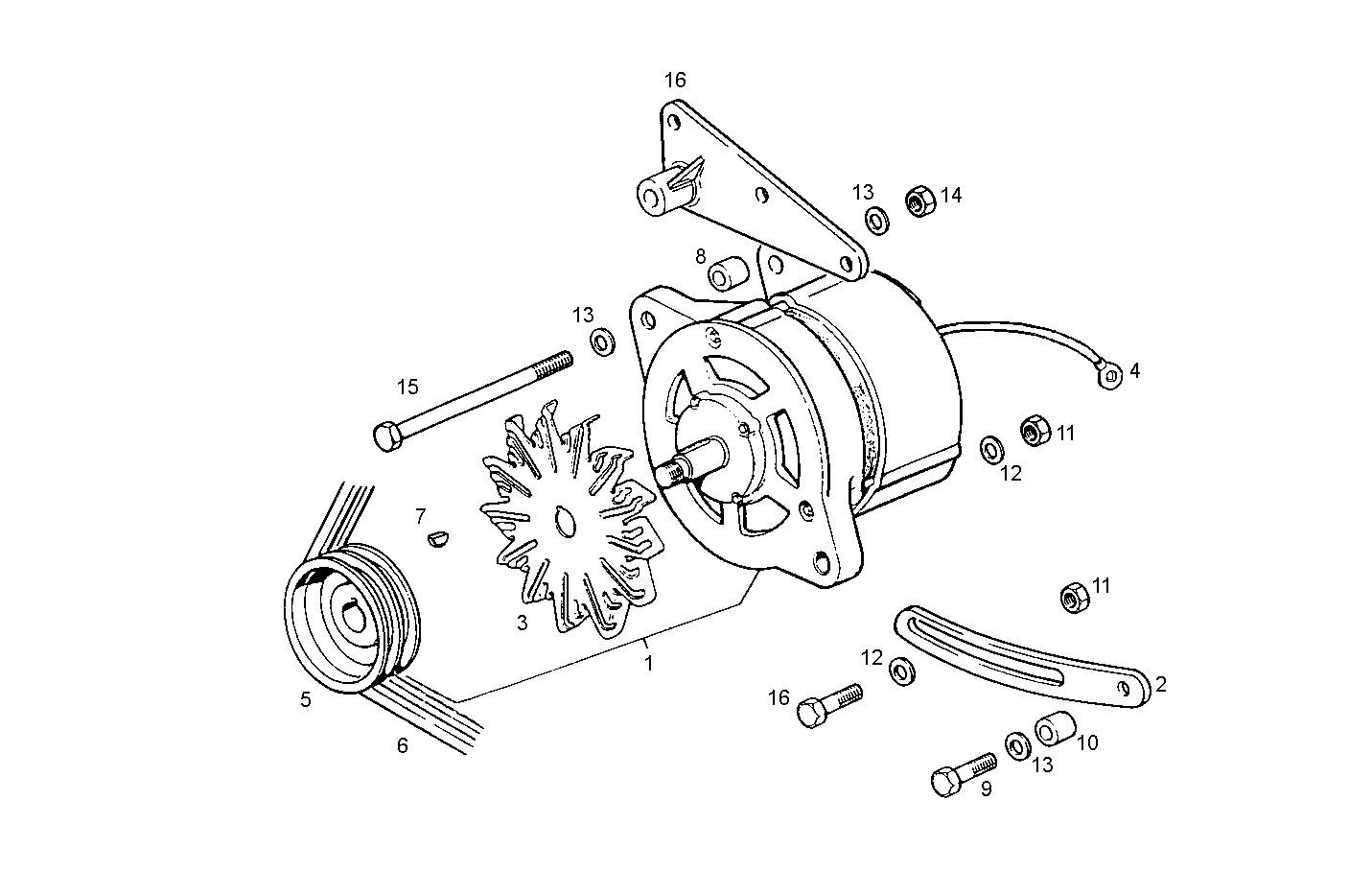

GENERATOR
8460SRE10.00A003 — 8460SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020683 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 8014930 | BELT TENSIONER BELT TENSIONER | 1 | |
| 3 | 4757196 | GENERATOR FAN GENERATOR FAN | 1 | |
| 4 | 8019531 | WIRE/CABLE WIRE/CABLE | 1 | |
| 5 | 98475244 | PULLEY PULLEY | 1 | |
| 6 | 8015777 | V-BELT V-BELT | 1 | |
| 7 | 12277944 | CONNECTION CONNECTION | 1 | |
| 8 | 8015577 | SPACING BAR SPACING BAR | 1 | |
| 9 | 16608324 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 4934572 | SPACING BAR SPACING BAR | 1 | |
| 11 | 17038631 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 17091074 | WASHER WASHER | 1 | |
| 13 | 17097124 | WASHER WASHER | 2 | |
| 14 | 17157125 | NUT NUT | 1 | |
| 15 | 11108821 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 15540924 | HEXAGON BOLT HEXAGON BOLT | 1 |
