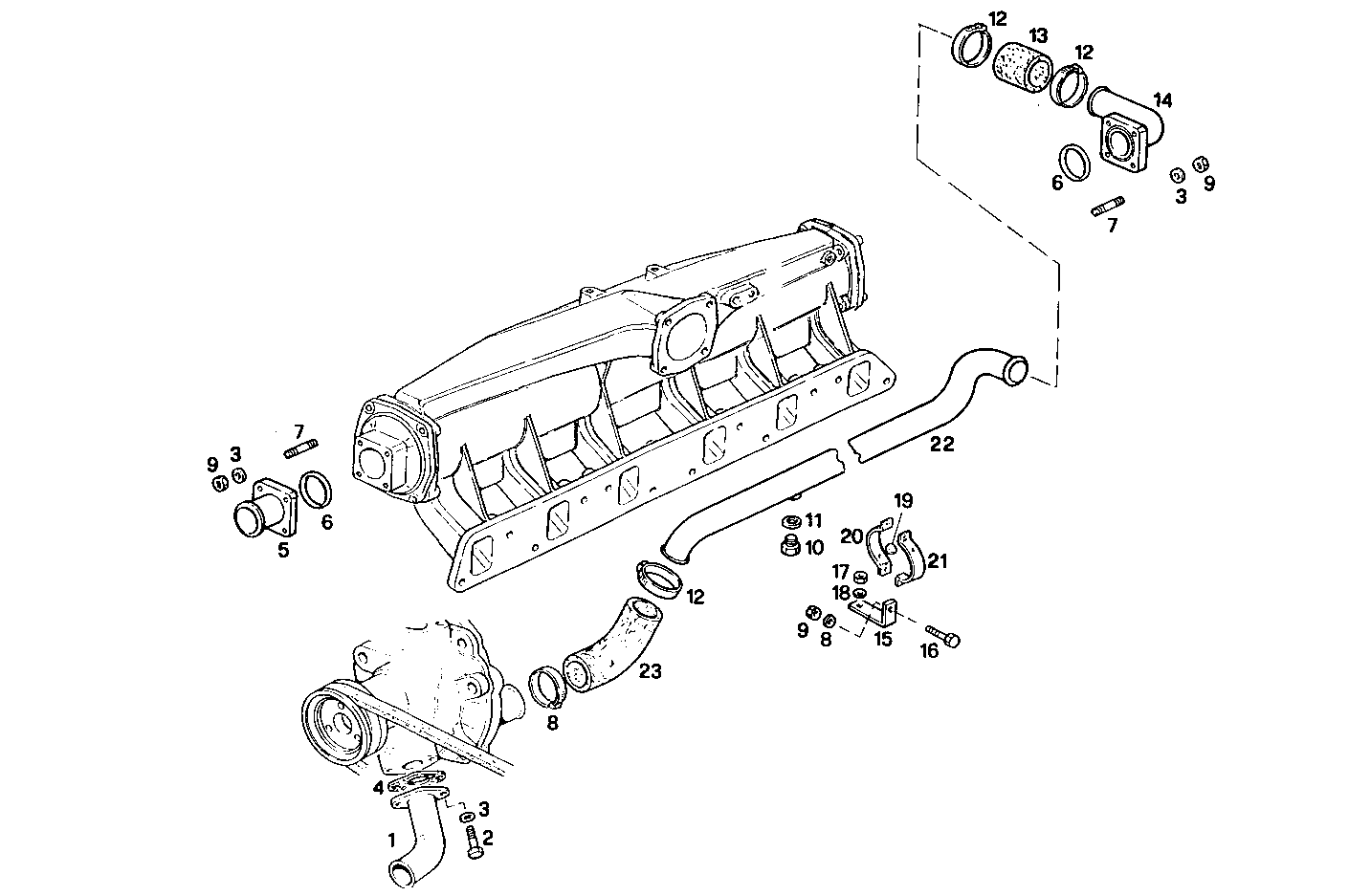

AUXILIARY WATER LINES
8460SRE12.00 — 8460SRE12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4800147 | PIPE PIPE | 1 | |
| 2 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 11 | |
| 4 | 98418621 | GASKET GASKET | 1 | |
| 5 | 8018457 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17290281 | O-RING O-RING | 2 | |
| 7 | 16729424 | STUD STUD | 8 | |
| 8 | 17765091 | CLIP CLIP | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 9 | |
| 10 | 16992511 | THREADED PLUG THREADED PLUG | 1 | |
| 11 | 4858610 | WASHER WASHER | 1 | |
| 12 | 98490783 | CLIP CLIP | 3 | |
| 13 | 8102186 | WATER HOSE WATER HOSE | 1 | |
| 14 | 8016620 | EXHAUST COOL. ELBOW EXHAUST COOL. ELBOW | 1 | |
| 15 | 8017335 | RETAINER RETAINER | 1 | |
| 16 | 16605424 | SCREW SCREW | 1 | |
| 17 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 18 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 19 | 1366290 | RUBBER PAD RUBBER PAD | 4 | |
| 20 | 8113295 | CLAMP CLAMP | 1 | |
| 21 | 8113296 | CLAMP CLAMP | 1 | |
| 22 | 8018371 | WATER PIPE WATER PIPE | 1 | |
| 23 | 98433199 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 |
