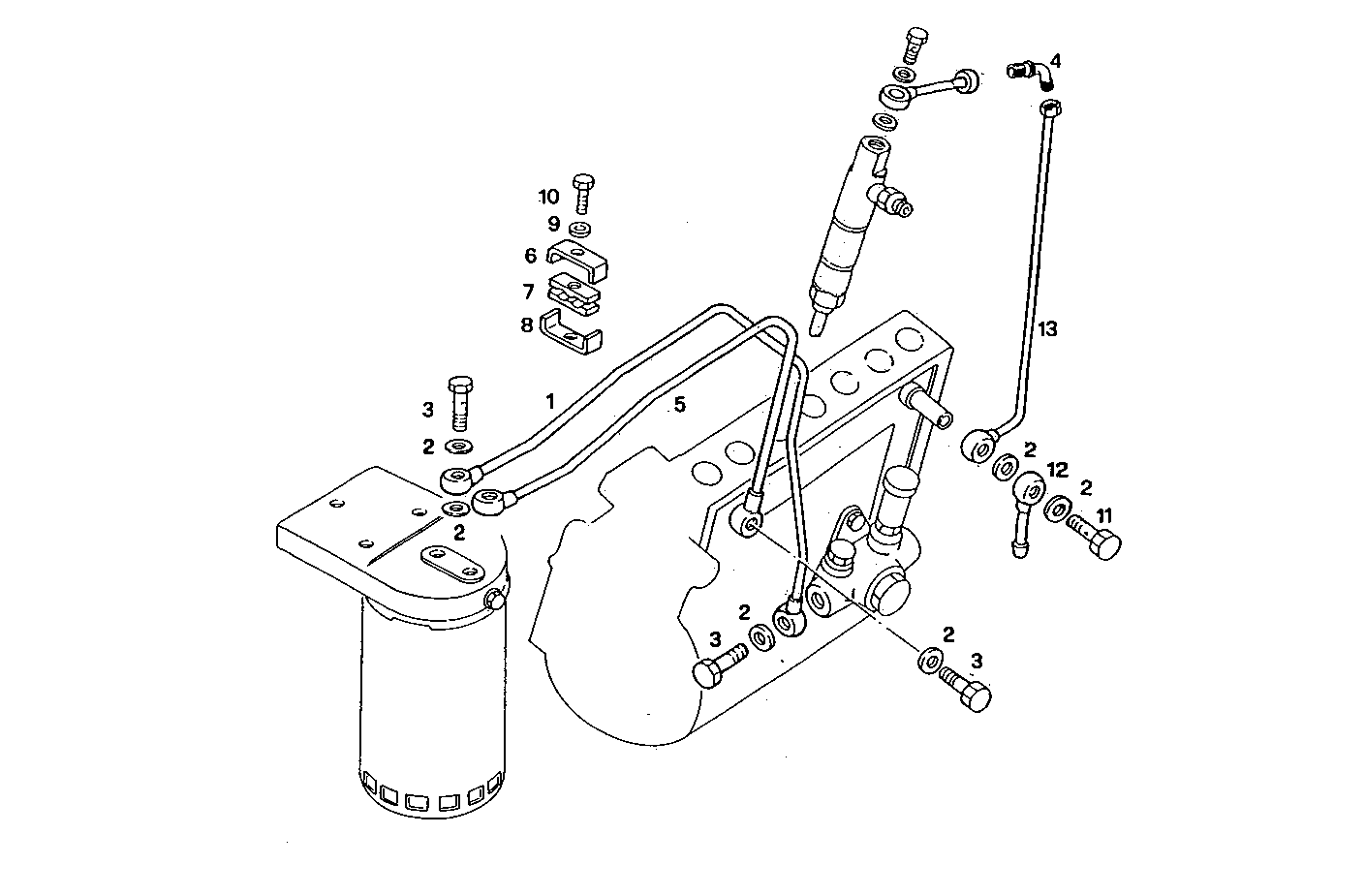

FUEL LINES
8460SRE12.00 — 8460SRE12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8013920 | FUEL LINE FUEL LINE | 1 | |
| 2 | 98474308 | SEAL GASKET SEAL GASKET | 9 | |
| 3 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 3 | |
| 4 | 16502911 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 5 | 8013921 | FUEL LINE FUEL LINE | 1 | |
| 6 | 4644288 | CLIP CLIP | 1 | |
| 7 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 8 | 4644289 | CLIP CLIP | 1 | |
| 9 | 17088474 | WASHER WASHER | 1 | |
| 10 | 16603824 | SCREW SCREW | 1 | |
| 11 | 61608319 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 12 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 13 | 8026328 | FUEL LINE FUEL LINE | 1 |
