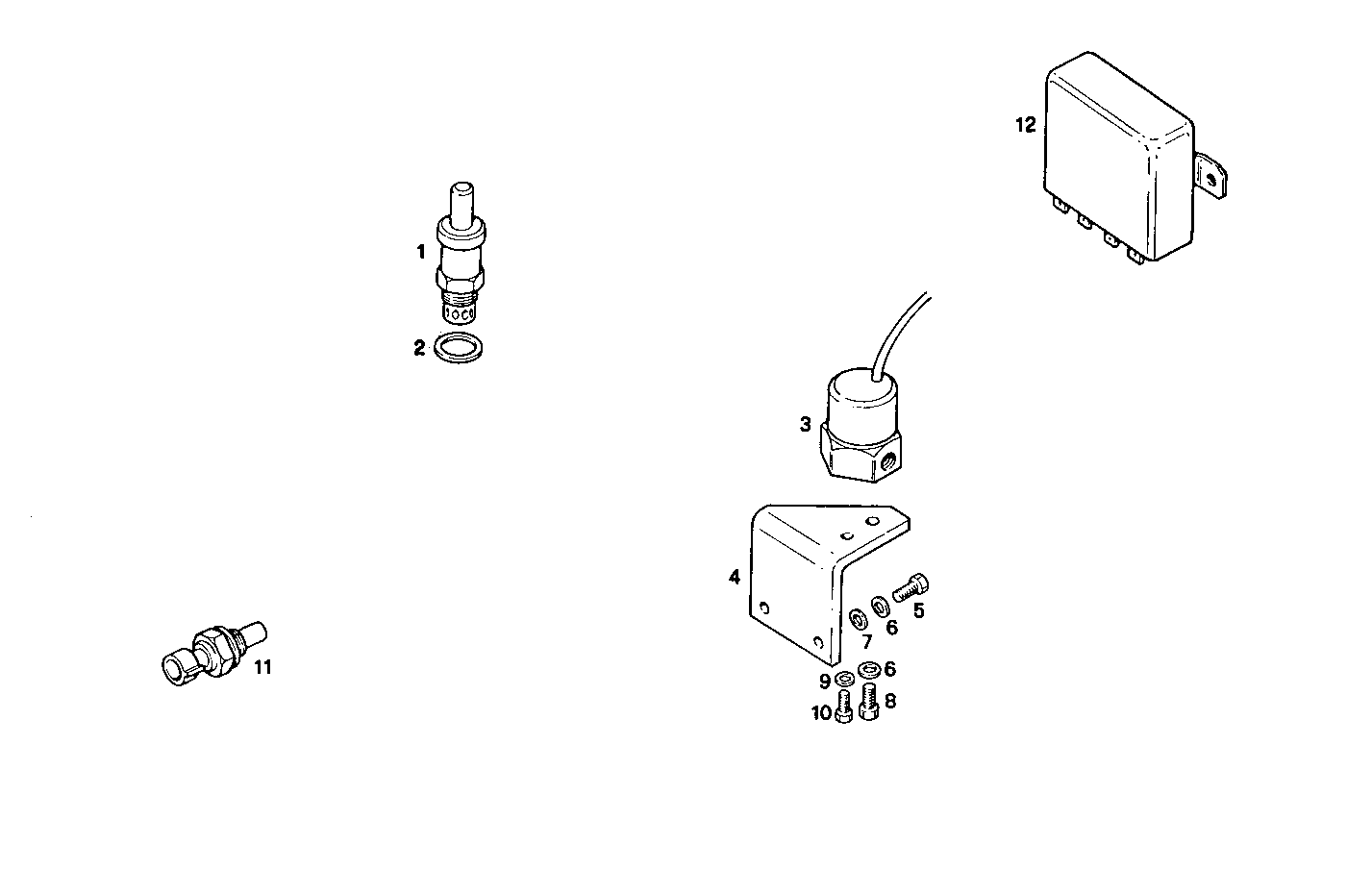

THERMOSTARTER
8460SRE12.00 — 8460SRE12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99450392 | THERMO-STARTER THERMO-STARTER | 2 | |
| 2 | 98429280 | SEAL GASKET SEAL GASKET | 2 | |
| 3 | 98494898 | ELECT.V.VE.PREHEAT ELECT.V.VE.PREHEAT | 1 | |
| 4 | 8017494 | SUPPORT SUPPORT | 1 | |
| 5 | 16603524 | SCREW SCREW | 2 | |
| 6 | 17088474 | WASHER WASHER | 3 | |
| 7 | 17097404 | WASHER WASHER | 2 | |
| 8 | 16603424 | SCREW SCREW | 1 | |
| 9 | 17094504 | WASHER WASHER | 1 | |
| 10 | 16601924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 4857250 | TRANSMITTER TRANSMITTER | 1 | |
| 12 | 99484738 | ELECTR.CONTR.UNIT ELECTR.CONTR.UNIT | 1 |
