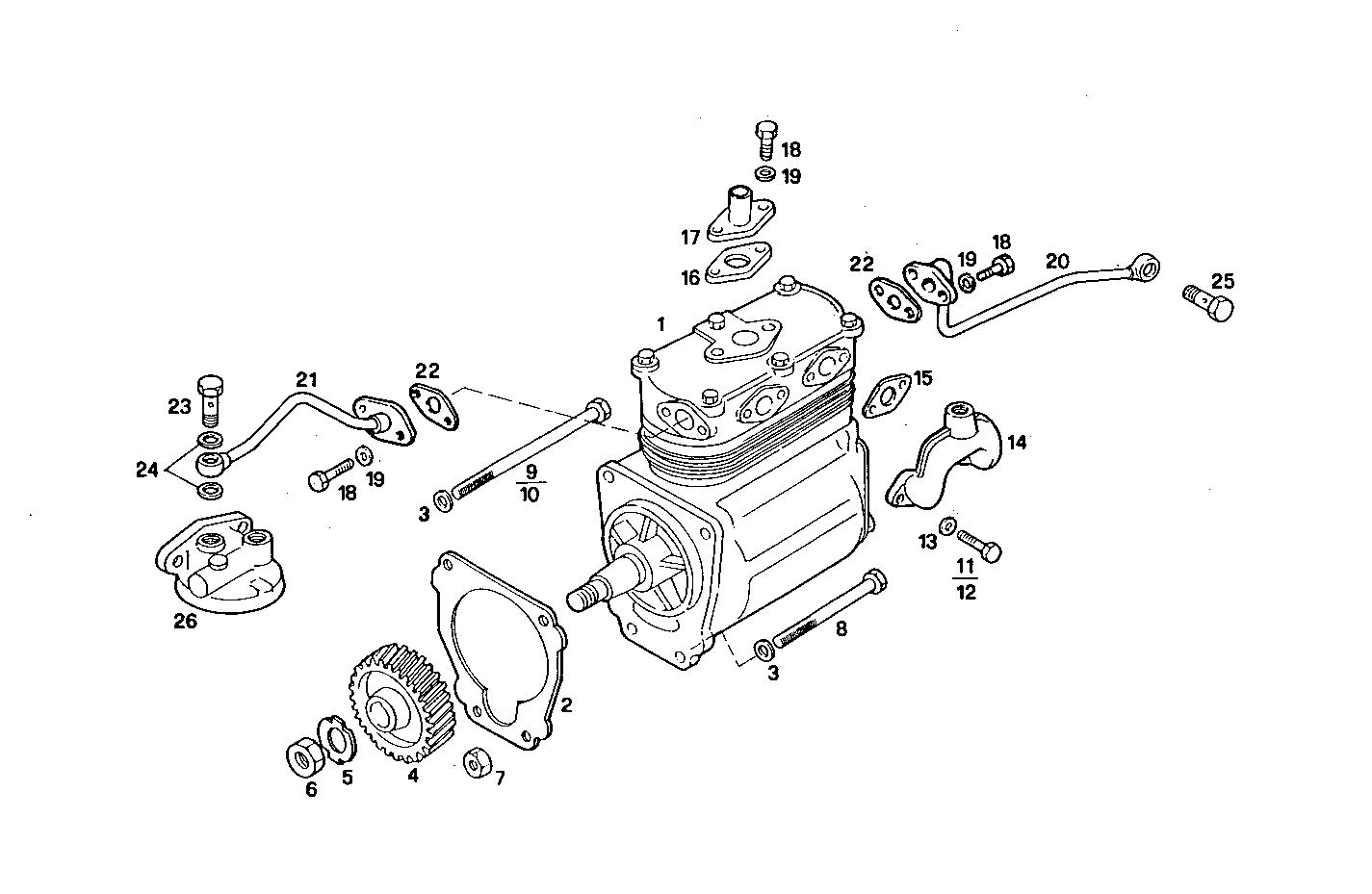

AIR COMPRESSOR
8460SRi10.00 — 8460SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 99440236 | AIR COMPRESSOR AIR COMPRESSOR | 1 | |
| 2 | 61319045 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 4 | 61316311 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 5 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 6 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 7 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 8 | 15972221 | SCREW SCREW | 1 | |
| 9 | 61316114 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 16162121 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 12 | 16690624 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 1 | |
| 13 | 17798373 | WASHER WASHER | 4 | |
| 14 | 61320549 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 15 | 61319097 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 16 | 61319095 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 17 | 61320308 | SUCTION LINE SUCTION LINE | 1 | |
| 18 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 20 | 61319143 | WATER PIPE WATER PIPE | 1 | |
| 21 | 61318457 | WATER PIPE WATER PIPE | 1 | |
| 22 | 61319097 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 23 | 98429224 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 24 | 98429280 | SEAL GASKET SEAL GASKET | 2 | |
| 25 | 4864085 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 26 | 61319660 | SUPPORT SUPPORT | 1 |
