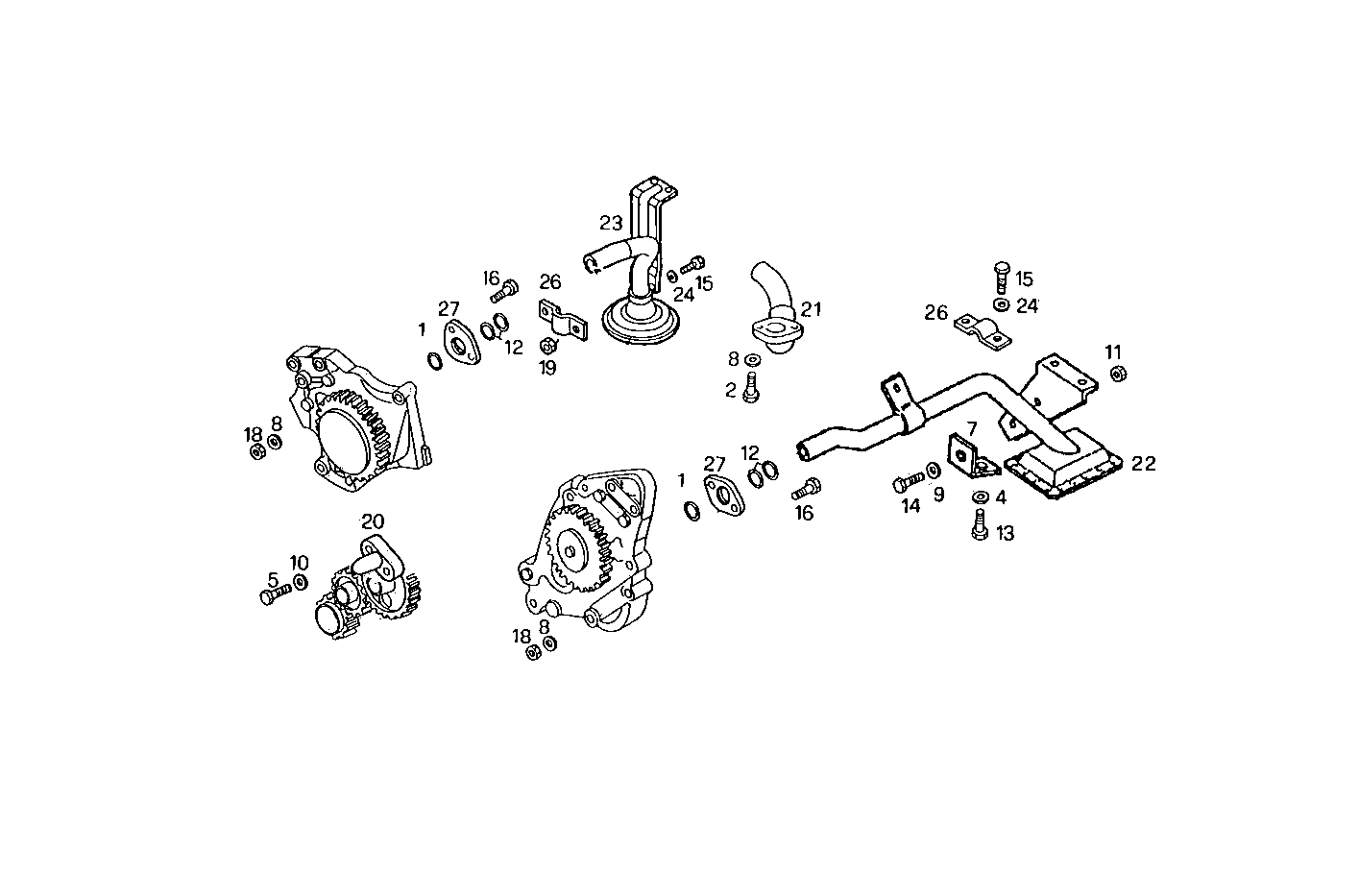

LUBE OIL LINES
8460SRi10.00A016 — 8460SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17282381 | O-RING O-RING | 2 | |
| 2 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 16603724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 7 | 61318441 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 17089574 | WASHER WASHER | 3 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 17799374 | SPRING WASHER SPRING WASHER | 2 | |
| 11 | 17783791 | NUT NUT | 1 | |
| 12 | 17288981 | O-RING O-RING | 4 | |
| 13 | 16605424 | SCREW SCREW | 5 | |
| 14 | 15970321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 16 | 16606424 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 4673582 | FASTENING RING FASTENING RING | 2 | |
| 18 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 19 | 13680021 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 61586093 | OIL NOZZLE OIL NOZZLE | 1 | |
| 21 | 61316163 | OIL LINE OIL LINE | 1 | |
| 22 | 61319262 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 23 | 8024192 | SUCTION STRAINER SUCTION STRAINER | 1 | |
| 24 | 17094914 | WASHER WASHER | 4 | |
| 26 | 61318446 | PIPE CLIP PIPE CLIP | 2 | |
| 27 | 61317784 | FLANGE FLANGE | 2 |
