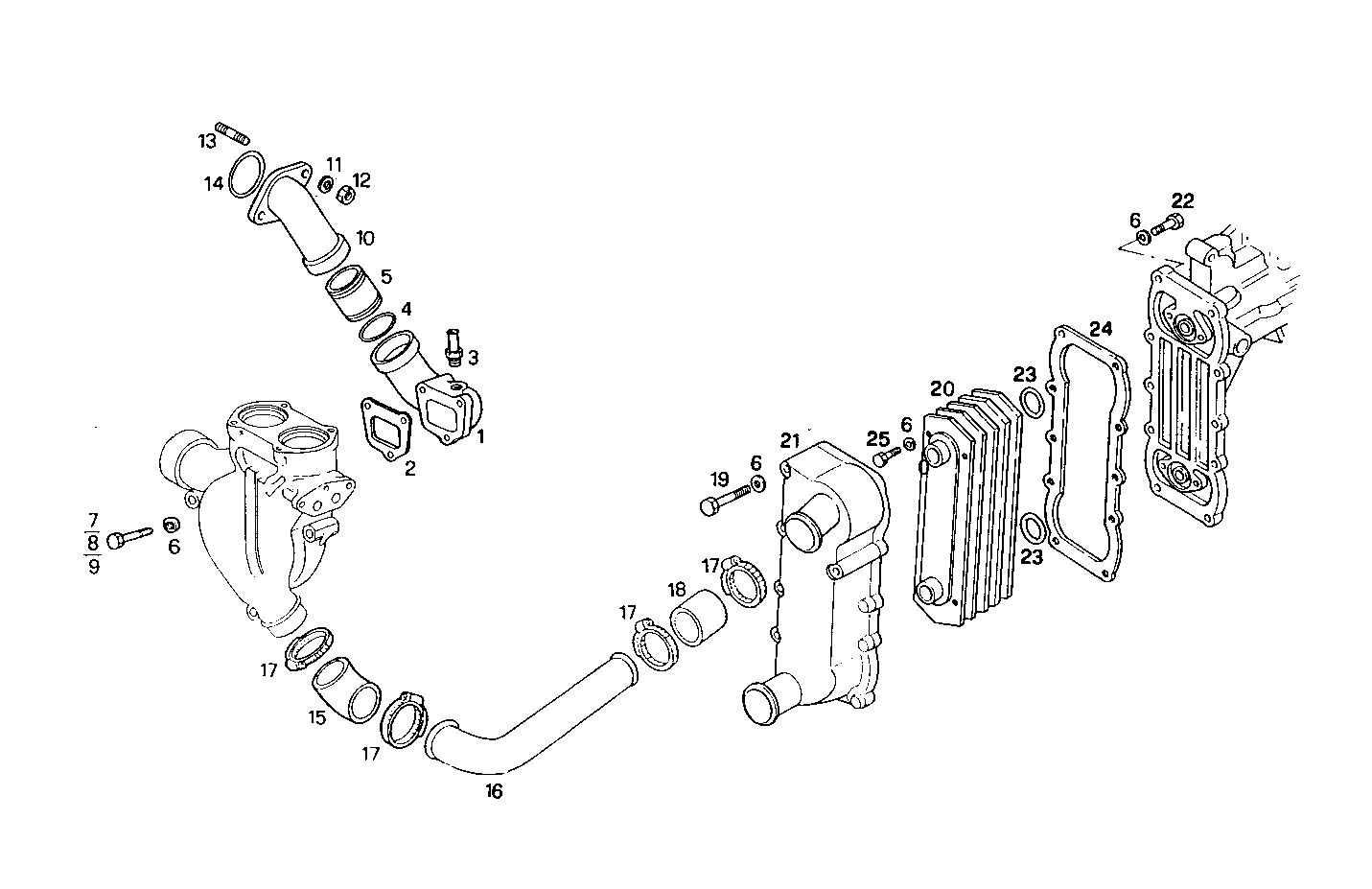

WATER LINES
8460SRi10.00A020 — 8460SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 61318069 | WATER PIPE WATER PIPE | 1 | |
| 2 | 61318850 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 3 | 4633506 | THREADED UNION THREADED UNION | 1 | |
| 4 | 17296081 | O-RING O-RING | 2 | |
| 5 | 61317101 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 17 | |
| 7 | 16606624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 8 | 16606224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 8016830 | WATER PIPE WATER PIPE | 1 | |
| 11 | 17094914 | WASHER WASHER | 2 | |
| 12 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 13 | 16729424 | STUD STUD | 2 | |
| 14 | 17290181 | O-RING O-RING | 1 | |
| 15 | 98438633 | WATER HOSE WATER HOSE | 1 | |
| 16 | 8018356 | WATER PIPE WATER PIPE | 1 | |
| 17 | 17765091 | CLIP CLIP | 4 | |
| 18 | 61317309 | WATER HOSE WATER HOSE | 1 | |
| 19 | 16606924 | SCREW SCREW | 5 | |
| 20 | 61319539 | OIL COOLER OIL COOLER | 1 | |
| 21 | 61317985 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 22 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 23 | 17283581 | O-RING O-RING | 2 | |
| 24 | 61318847 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 25 | 16043721 | HEXAGON BOLT HEXAGON BOLT | 4 |
